Summary of Contents for Equipment Defender PAS/Kombi Rack
- Page 1 Equipment Defender PAS/Kombi Rack Assembly Instructions Patents Pending EquipmentDefender.com...

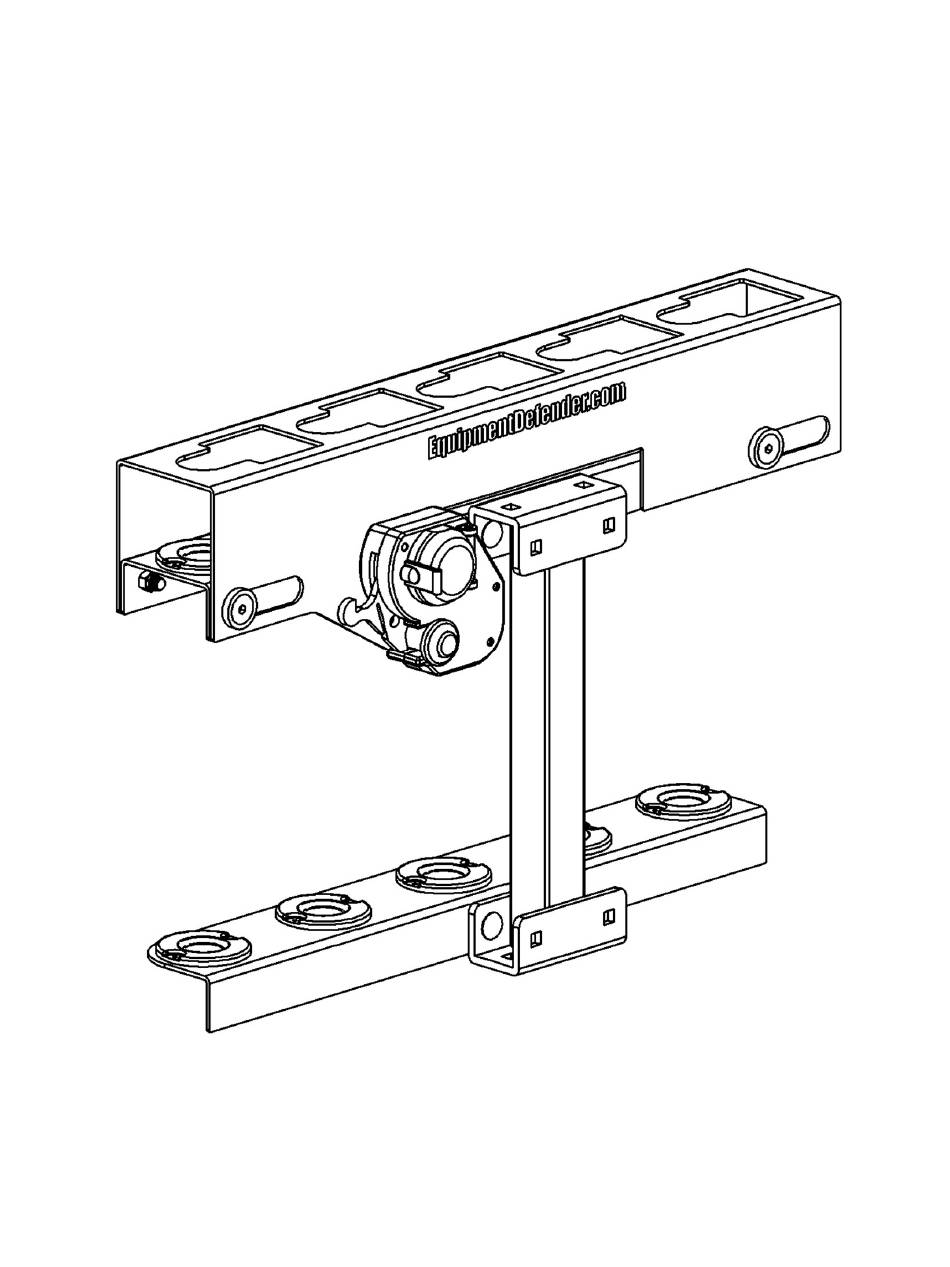

- Page 2 Assembly Diagram Use Hardware packet “ASSEMBLY HARDWARE”...
- Page 3 Mounting The Rack On Open Trailers Set the rack onto the trailer rail in the desired location and mark the hole location, drill with a 27/64 drill bit. Use Hardware packet: “Open Trailer Mounting Hardware” Mounting Holes Mounting The Rack On Enclosed Trailers (Enclosed trailer mounting brackets sold separately) Vertical mount 1.
- Page 4 Open Trailer Mounting Post (sold separately) This mounting post is a great option for trailers with weak top rails. Racks bolt on top Bolts through top rail Post can be cut to desired length, but it must stick up above the rail at least 4 inches Bolts to trailer deck Round Rail Brackets (sold separately)
- Page 5 Each attachment requires a support side shaft bracket (sold separately.) Fig 1 shows proper setup of the shaft bracket when used on a split shaft attachment, this method locks the attachment into the Equipment Defender line trimmer rack and it also sets the attachment up to be used with the PAS/Kombi rack. Fig 1 Set up the shaft bracket so the attachment can’t be removed...
- Page 6 Changing the lock Equipment Defender offers a commination lock (sold separately.) 1. Remove the screws that hold the two sides of the lock housing together. This will require a tamper resistant tip hex wrench (included) 2. Remove the existing lock.
