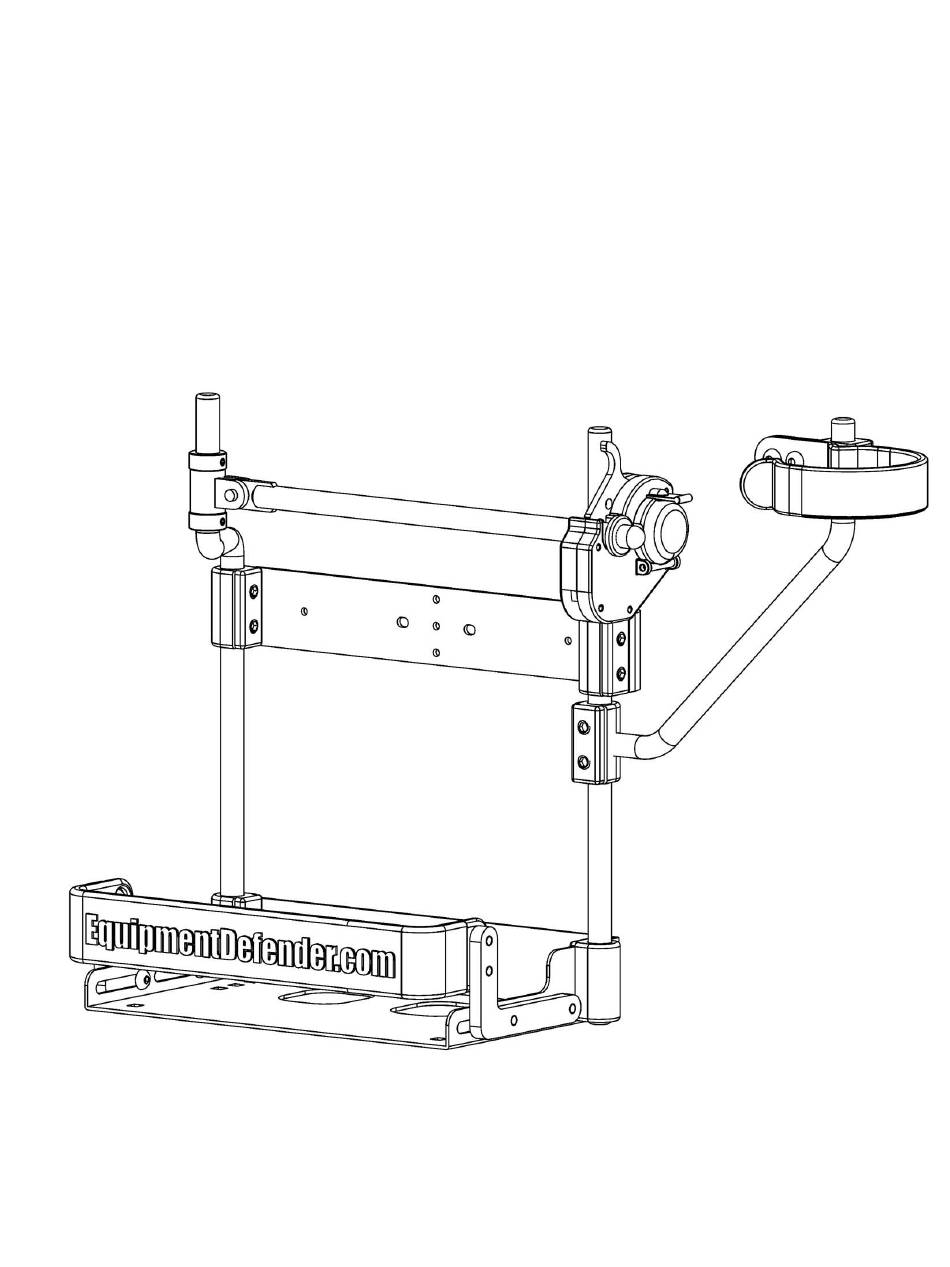

- Page 1 Equipment Defender Backpack Blower Rack Assembly Instructions Patents Pending EquipmentDefender.com...
- Page 2 Remove all set screws and apply thread lock before tightening. • Make sure all set screws are VERY tight. • Note: If you wish to achieve maximum security bolt/screw heads can be filled with epoxy. • Step One Straight Steel Rod 1.
- Page 3 Remove all set screws and apply thread lock before tightening. • Make sure all set screws are VERY tight. • Note: If you wish to achieve maximum security bolt/screw heads can be filled with epoxy. • Step Four Install the lock assembly onto the straight steel rod. Lock assembly Tighten the bolts just enough to keep the lock assembly from sliding down for now.
- Page 4 Remove all set screws and apply thread lock before tightening. • Make sure all set screws are VERY tight. • Note: If you wish to achieve maximum security bolt/screw heads can be filled with epoxy. • Step Seven Install the side arms onto the front restraint use thread Side Arms lock and make the screws very tight.
- Page 5 Adjusting the rack to fit your backpack blower Adjust the rack so the blower fits in as tight as possible. • You will want to mount your rack onto your open trailer to make it easy to adjust without moving around.
- Page 6 Install Angle Bracket • The purpose of this bracket is to ensure the blower can’t be lifted when the rack is locked. • The bracket should be adjusted low enough to ensure there isn’t excessive space between the backpack and the bracket. •...
- Page 7 Mounting on Open Trailers 1. Select a location on your trailer for your blower (If you want to put the rack on the side rail but at the very front of the trailer you can pivot the tube holder toward the back to keep the tube from sticking out over the front of the trailer.
- Page 8 Open Trailer Mounting Post (sold separately) This mounting post is a great option for trailers with weak top rails or Round tube top rails. Racks bolt on top Post can be cut to desired length, but it Bolts through top rail, must stick up above Long bolts are included the rail at least 4 inches...
- Page 9 Changing the lock Equipment Defender offers a commination lock (sold separately.) 1. Remove the screws that hold the two sides of the lock housing together. This will require a tamper resistant tip hex wrench (included) 2. Remove the existing lock.
