User Manual
LP8 700 VR02
EN
www.teka.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP8 700 VR02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teka LP8 700 VR02

Summary of Contents for Teka LP8 700 VR02

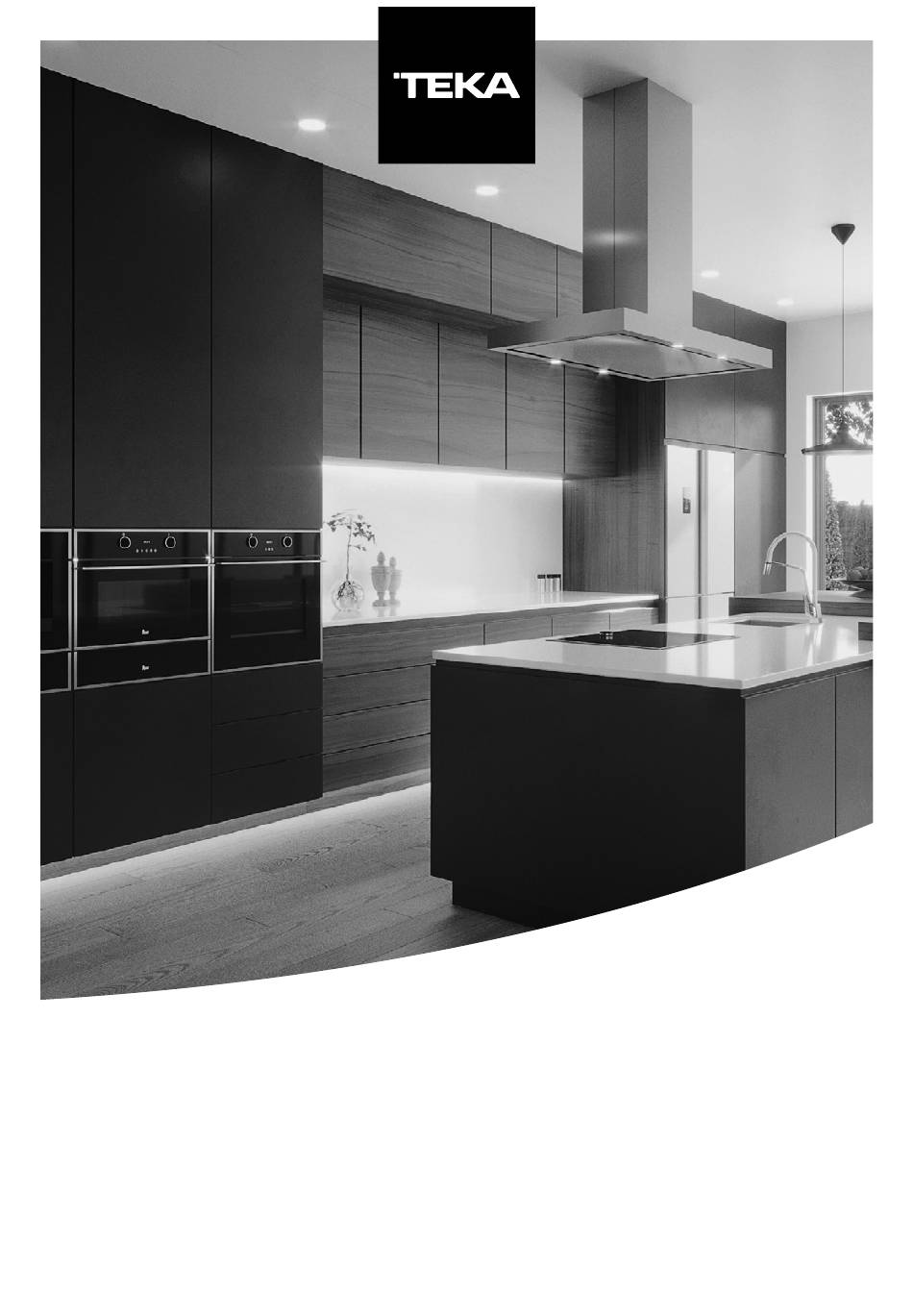

  • Page 1 User Manual LP8 700 VR02 www.teka.com...
  • Page 2 Dear Customer, Control Panel...........5 Please carefully read this manual before using the Dishwasher Features........5 dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. Pass it on to any subsequent owner of the appliance. 、...
  • Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
  • Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
  • Page 5 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
  • Page 6 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programs with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
  • Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 1---On/Off Button 2---Half load functions Button: To select Half load 4---Program Button functions. (With this Half load function you can only Start /Pause Button: To start the selected use it when you have only about or less than 6 place washing program or pause the washing program...

  • Page 8: Adjusting Salt Consumption

    Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 9 Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following: Attention! Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener.

  • Page 10: When To Refill The Rinse Aid Dispenser

    Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

  • Page 11: Concentrated Detergent

    Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. Attention! Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

  • Page 12: Amount Of Detergent To Use

    Amount of Detergent to Use Detergent powder Detergent tablet Fill in Detergent For main wash detergent. Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: For pre-wash detergent . Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.
  • Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

  • Page 14: Adjusting The Upper Basket

    The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and and shallow pans (as long as they are not too dirty).
  • Page 15 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(50 ℃ Wash (60 Intensive For heaviest soiled crockery, Rinse 5/25g 、 18.5 and normally soiled pots Rinse (1 or 2 pieces) 、 pans dishes etc with dried ℃ Rinse(70 ) on soiling.
  • Page 16 When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

  • Page 17: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

  • Page 18: Cleaning The Filter

    Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush.
  • Page 19 After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside.
  • Page 20 Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.
  • Page 21 How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
  • Page 22 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
  • Page 23 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The program was Select a more intensive program. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 24 Height : 845mm Width : 598 mm Depth : 604mm( with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 place settings...
  • Page 26 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer TEKA Type / Description LP8 700 VR02 Standard place settings Energy efficiency class Annual energy consumption 273 kWh Energy consumption of the standard cleaning cycle 0.96 kWh Power consumption of off-mode 0.45 W...
  • Page 28 Asped mos eriatius sit atet hicil et velit...
