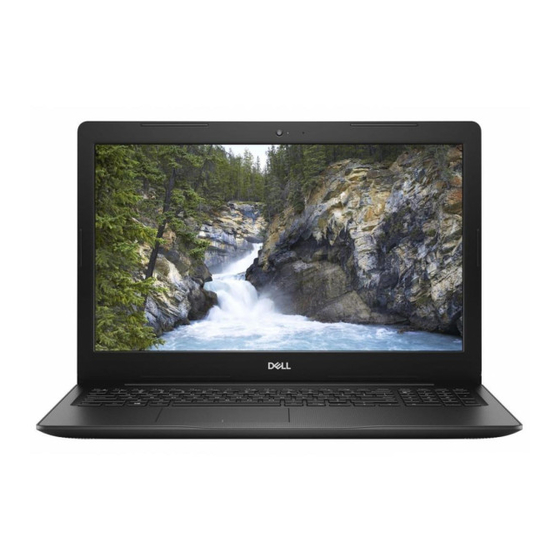

- Page 1 Dell Vostro 3583 Setup and specifications guide Regulatory Model: P75F Regulatory Type: P75F010...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents 1 Set up your computer.............................5 2 Create a USB recovery drive for Windows..................... 7 3 Chassis................................8 Display view..................................8 Left view....................................9 Right view................................... 9 Palmrest view..................................10 Bottom view..................................11 4 Keyboard shortcuts............................12 5 System specifications..........................13 System information................................13 Processor...................................14 Memory....................................14 Storage....................................14... - Page 4 Maintenance screen..............................30 System logs................................. 31 SupportAssist System Resolution..........................31 System and setup password............................32 Assigning a system setup password........................32 Deleting or changing an existing system setup password..................32 7 Software..............................34 Downloading drivers................................ 34 8 Getting help..............................35 Contacting Dell.................................35 Contents...
-
Page 5: Set Up Your Computer
NOTE: To conserve battery power, the battery might enter power saving mode. Finish Windows system setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: • Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - Page 6 Dell apps Details Dell Digital Delivery Download software applications including software that is purchased but not pre-installed on your computer. Create recovery drive for Windows. NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
-
Page 7: Create A Usb Recovery Drive For Windows
A message appears, indicating that all data in the USB flash drive will be deleted. Click Create. Click Finish. For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals. Create a USB recovery drive for Windows... -
Page 8: Chassis
Chassis This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations. Topics: • Display view • Left view • Right view • Palmrest view • Bottom view Display view Camera Camera-status light Microphone... -
Page 9: Left View
Left view Power adapter port Battery status light HDMI port Network port USB 3.1 Gen 1 ports (2) Headset port Right view SD card reader USB 2.0 port Security-cable slot (for Noble locks) Chassis... -
Page 10: Palmrest View
Palmrest view Power button Keyboard Touchpad Chassis... -
Page 11: Bottom View
Bottom view Speakers Base cover Service Tag label Air vent Chassis... -
Page 12: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Table 2. List of keyboard shortcuts Keys Description Toggle Fn-key lock Fn + Esc Mute audio Fn + F1 Decrease volume Fn + F2... -
Page 13: System Specifications
System specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer, go to Help and Support in your Windows operating system and select the option to view information about your computer. -
Page 14: Processor
Processor NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/ country. Table 4. Processor specifications Type UMA Graphics 8th Gen Intel Core i3 processor (2 cores/4 Intel UHD Graphics 620 MB/4T/3.9 GHz/15 W) 8th Gen Intel Core i5 processor (4 cores/6 Intel UHD Graphics 620... -
Page 15: Audio
Type Form factor Interface Capacity Upto 1 TB 7200 RPM Intel Optane (PCIe M.2 module PCIe 16 GB with HDD) Dual drives 2.5 inches HDD + M.2 SATA + M.2 SSD Yes, it is available Audio Table 7. Audio specifications Feature Specifications Controller... -
Page 16: Video Card
Video card Table 10. Video card specifications Controller Type Graphics Capacity External display Maximum Dependency memory type support resolution Intel UHD Integrated Shared system HDMI 1.4b 4096 x 2304 • 8th Gen Intel Graphics 620 memory Core i5 processor • 8th Gen Intel Core i7 processor... -
Page 17: Ports And Connectors
SD 3.0 memory card reader • One USB 2.0 port • Two USB 3.1 Gen 1 port Security Noble wedge lock slot Docking port Dell USB 3.0 Dock (UNO) Audio • Universal audio jack • Noise reduction single microphone Video •... -
Page 18: Keyboard
Keyboard Table 15. Keyboard specifications Feature Specifications Number of keys • 101 (US) • 102 (UK) • 104 (Brazil) • 105 (Japan) Size Full sized • X= 19.05 mm key pitch • Y= 18.05 mm key pitch Layout QWERTY/AZERTY/Kanji Touchpad Table 16. -
Page 19: Operating System
Operating system Table 18. Operating system Feature Specifications Operating systems supported • Windows 10 Home (64 bit) • Windows 10 Pro (64 bit) • Ubuntu Battery Table 19. Battery specifications Feature Specifications Type 3-cell Primatic/Polymer battery 42 WHr Dimension Width 175.37 mm (6.9 in) Depth 90.73 mm (3.57 in) -
Page 20: Dimensions And Weight
Feature Specifications • 65 W (Discrete) Input Voltage 100 VAC - 240 VAC Input current (maximum) • 1.3 A for 45 W • 1.7 A for 65 W Input frequency 50 Hz to 60 Hz Output current • 2.31 A for 45 W •... -
Page 21: Security
Chassis intrusion switch Optional Chassis lock slot and loop support Optional Security Software Table 24. Security Software specifications Feature Specifications Dell Endpoint Security Suite Enterprise Optional Dell Data Guardian Optional Dell Encryption (Enterprise or Personal) Optional Dell Threat Defense Optional... -
Page 22: System Setup
Boot menu Press <F12> when the Dell logo appears to initiate a one-time boot menu with a list of the valid boot devices for the system. Diagnostics and BIOS Setup options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system. -
Page 23: System Setup Options
Keys Navigation Moves to the next focus area. NOTE: For the standard graphics browser only. Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message that prompts you to save any unsaved changes and restarts the system. System setup options NOTE: Depending on the laptop and its installed devices, the items listed in this section may or may not appear. -
Page 24: System Information
System information Table 26. System Configuration Option Description Integrated NIC Allows you to configure the on-board LAN controller. • Disabled = The internal LAN is off and not visible to the operating system. • Enabled = The internal LAN is enabled. •... -
Page 25: Security
Security Table 27. Security Option Description Admin Password Allows you to set, change, and delete the admin password. System Password Allows you to set, change, and delete the system password. Strong Password This option lets you enable or disable strong passwords for the system. Password Configuration Allows you to control the minimum and maximum number of characters allowed for a administrative password and the system password. -
Page 26: Secure Boot
Option Description OROM Keyboard Access This option determines whether users are able to enter Option ROM configuration screen via hotkeys during boot. • Enabled (default) • Disabled • One Time Enable Admin Setup Lockout Allows you to prevent users from entering Setup when Admin password is set. This option is not set by default. -
Page 27: Intel Software Guard Extensions
Intel Software Guard Extensions Table 29. Intel Software Guard Extensions Option Description This field specifies you to provide a secured environment for Intel SGX Enable running code/storing sensitive information in the context of the main OS. Click one of the following options: •... -
Page 28: Power Management
Option Description Allows you to enable or disable the HyperThreading in the Hyper-Thread Control processor. • Disabled • Enabled—Default Power management Option Description AC Behavior Allows you to enable or disable the computer from turning on automatically when an AC adapter is connected. Default setting: Wake on AC is not selected. -
Page 29: Post Behavior
Adaptive—enabled by default Configuration • Standard—Fully charges your battery at a standard rate. • ExpressCharge—The battery charges over a shorter time using Dell’s fast charging technology. • Primarily AC use • Custom If Custom Charge is selected, you can also configure Custom Charge Start and Custom Charge Stop. -
Page 30: Virtualization Support
Option Description Sign of Life • Enable Sign of Life Keyboard Backlight Indication—enabled by default Indication Virtualization support Option Description Virtualization This field specifies whether a virtual Machine Monitor (VMM) can utilize the conditional hardware capabilities provided by Intel Virtualization Technology. Enable Intel Virtualization Technology—enabled by default. -
Page 31: System Logs
Option Description Asset Tag Allows you to create a system asset tag if an asset tag is not already set. This option is not set by default. BIOS Downgrade This controls flashing of the system firmware to previous revisions. Option 'Allow BIOS downgrade' is enabled by default. -
Page 32: System And Setup Password
System and setup password Table 31. System and setup password Password type Description System password Password that you must enter to log on to your system. Setup password Password that you must enter to access and make changes to the BIOS settings of your computer. - Page 33 The System Security screen is displayed. In the System Security screen, verify that Password Status is Unlocked. Select System Password, alter or delete the existing system password and press Enter or Tab. Select Setup Password, alter or delete the existing setup password and press Enter or Tab. NOTE: If you change the System and/or Setup password, re-enter the new password when prompted.
-
Page 34: Software
This chapter details the supported operating systems along with instructions on how to install the drivers. Downloading drivers Turn on the notebook. Go to Dell.com/support. Click Product Support, enter the Service Tag of your notebook, and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your notebook model. -
Page 35: Getting Help
About this task Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Steps Go to Dell.com/support.
