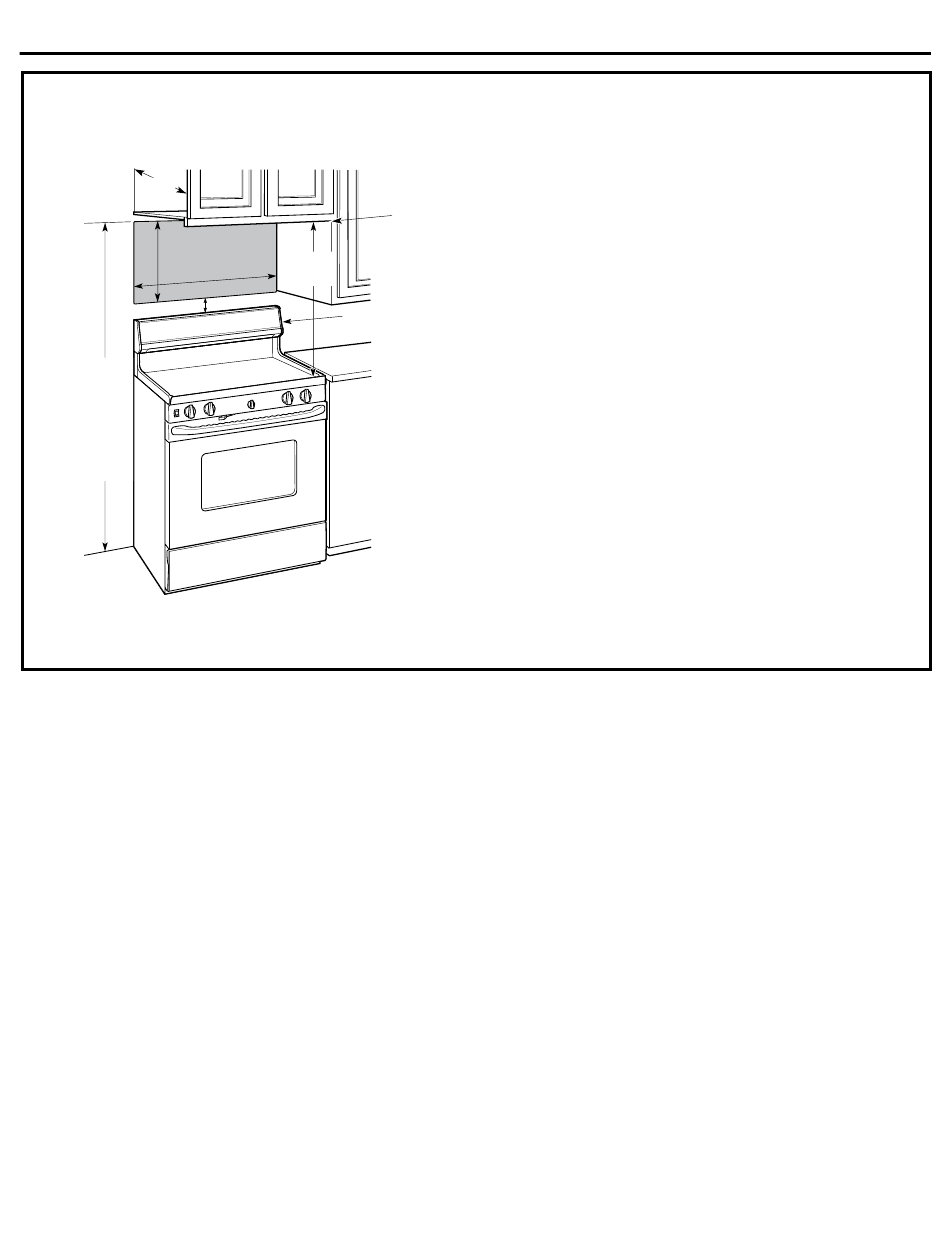

MOUNTING SPACE

17 / "
5
8
max.
16-½"
30"
2 "
66" or
more from
the floor
to the
top of the
microwave
oven
Installation Instructions
Bottom edge of
cabinet needs to
be 30" or more
from the cooking
surface or top
surface of gas
grates whichever
30"
is taller
min.
Backsplash
8
NOTES:
• The space between the cabinets must be 30" wide
and free of obstructions.
• If you are going to vent your microwave oven to the
outside, see Hood Exhaust Section for exhaust duct
preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for power
cord clearance.
• M aximum cabinet depth above and beside the unit
is 14 / ". When using GE approved instructions or
5
8
accessory kit the maximum installation depth
is 17 / ".
5
8
• For models setup in Recirc Exhaust: Do not allow
cabinetry or other objects to block the airflow of the
vent.
• The product should not be installed over any cooktop
or range with a combined BTU greater than 60,000
BTU.
1" = 2.5 cm; 1' = 0.3 m
