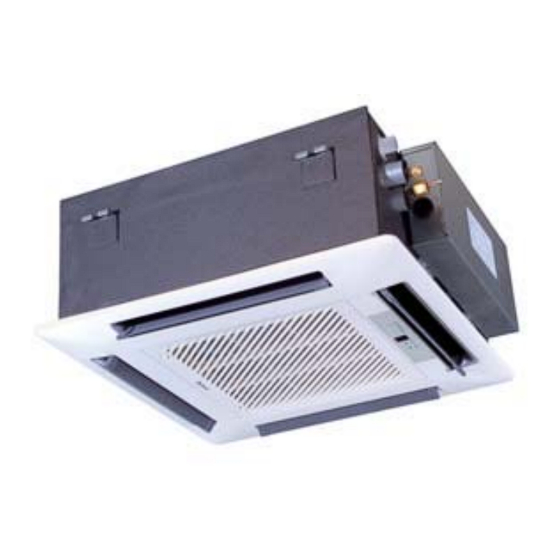

- Page 1 All manuals and user guides at all-guides.com MODEL: MUL FWCA-SL Series CASSETTE COMPACT MUL 12FWCA-SL MUL 18FWCA-SL...
- Page 2 All manuals and user guides at all-guides.com Summary and features....................1 Safety Precautions ......................................................................................3 Construction Views ....................4 Refrigerant System Diagram ..................5 Schematic Diagram ................................................................................................. 6 Function and Control ............................................................7 Exploded Views and Parts List ..................
-
Page 3: Summary And Features
All manuals and user guides at all-guides.com Free Match Service Manual Summary and features MUL 12FWCA - SL / MUL18FWCA - SL... -
Page 4: Safety Precautions
All manuals and user guides at all-guides.com Free Match Service Manual 1 Safety Precautions... - Page 5 All manuals and user guides at all-guides.com Free Match Service Manual MUL 12FWCA - SL MUL 18FWCA - SL 3.50 4.50 11.94 15.35 4.00 5.00 13.65 17.06 220-240 220-240 0.23 0.23 18.0 18.0 23.0 23.0 3.65 3.65...
- Page 6 All manuals and user guides at all-guides.com Free Match Service Manual 2.2 Noise Criteria Curve Tables for Both Models 12、 12、18K...
-
Page 7: Construction Views
All manuals and user guides at all-guides.com Free Match Service Manual 3 Construction Views MUL 12FWCA - SL, MUL 18FWCA - SL 570 604 650... -
Page 8: Refrigerant System Diagram
All manuals and user guides at all-guides.com Free Match Service Manual 4 Refrigerant System Diagram... - Page 9 All manuals and user guides at all-guides.com MUL 12FWCA - SL MUL 18FWCA - SL ： AP2.
- Page 10 All manuals and user guides at all-guides.com Free Match Service Manual Cassette type for MUL 12FWCA - SL, MUL 18FWCA - SL Unit...
- Page 11 All manuals and user guides at all-guides.com Free Match Service Manual...
-
Page 12: Function And Control
All manuals and user guides at all-guides.com Free Match Service Manual 6 Function and Control 6.1 Remote Control Operations X-FAN 19 20 21 22... - Page 13 All manuals and user guides at all-guides.com Free Match Service Manual...
- Page 14 All manuals and user guides at all-guides.com Free Match Service Manual...
- Page 15 All manuals and user guides at all-guides.com Free Match Service Manual Replacement of Batteries Notes:...
- Page 16 All manuals and user guides at all-guides.com Free Match Service Manual 6.2 Description of Each Control Operation Protection Function Control Function of Indoor Unit...
- Page 17 All manuals and user guides at all-guides.com Free Match Service Manual...
- Page 18 All manuals and user guides at all-guides.com Free Match Service Manual...
- Page 19 All manuals and user guides at all-guides.com Free Match Service Manual MUL 12FWCA-SL...
- Page 20 All manuals and user guides at all-guides.com Free Match Service Manual MUL 12FWCA - SL MUL 12FWCA - SL 01222712 01302741 01362704 43130320 05232722 01332705 01332708 450127011 01332706 390001982G 30296317 305100492 3900019813 11120011 11120012 20182704 01072714 01024307 01072713 10312702 15704114 01702702 01382719 43110226...
- Page 21 All manuals and user guides at all-guides.com Free Match Service Manual MUL 18FWCA - SL...
- Page 22 All manuals and user guides at all-guides.com Free Match Service Manual MUL 18FWCA - SL MUL 18FWCA - SL 01222712 01302741 01362704 43130320 05232722 01332705 450127011 01332706 390001982G 30296317 305100492 3900019813 11120011 11128633 20182704 01072714 0102430701 01072713 10312702 15704114 01702702 01382719 43110226 420111041...
-
Page 23: Troubleshooting
All manuals and user guides at all-guides.com Free Match Service Manual 9 Troubleshooting 9.1 Trouble Table WARNING! 1) Please check the following items before contact the maintenance serviceman Note:... - Page 24 All manuals and user guides at all-guides.com Free Match Service Manual 3) Error description Unit Unit 88...
- Page 25 All manuals and user guides at all-guides.com Free Match Service Manual...
- Page 26 All manuals and user guides at all-guides.com Free Match Service Manual Code Error Code Error...
- Page 27 All manuals and user guides at all-guides.com Free Match Service Manual 9.2 Flow Chart of Troubleshooting Full Water Protection Check if the voltage of liquid level Replace the main board Check if water overflow switch end is ok of the indoor uint Check the liquid level switch Check if the water drainage...
- Page 28 All manuals and user guides at all-guides.com Free Match Service Manual Failure of condenser Temp. sensor Check if the plug of the temperature sensor is Check the direction of correctly connected with socket on the mainboard the plug and socket Remove the sensor to check if the resistance Replace temperature sensor value is ok...
- Page 29 All manuals and user guides at all-guides.com Free Match Service Manual Step...
- Page 30 All manuals and user guides at all-guides.com Free Match Service Manual...
- Page 31 All manuals and user guides at all-guides.com Free Match Service Manual Step...
- Page 32 All manuals and user guides at all-guides.com Free Match Service Manual...
