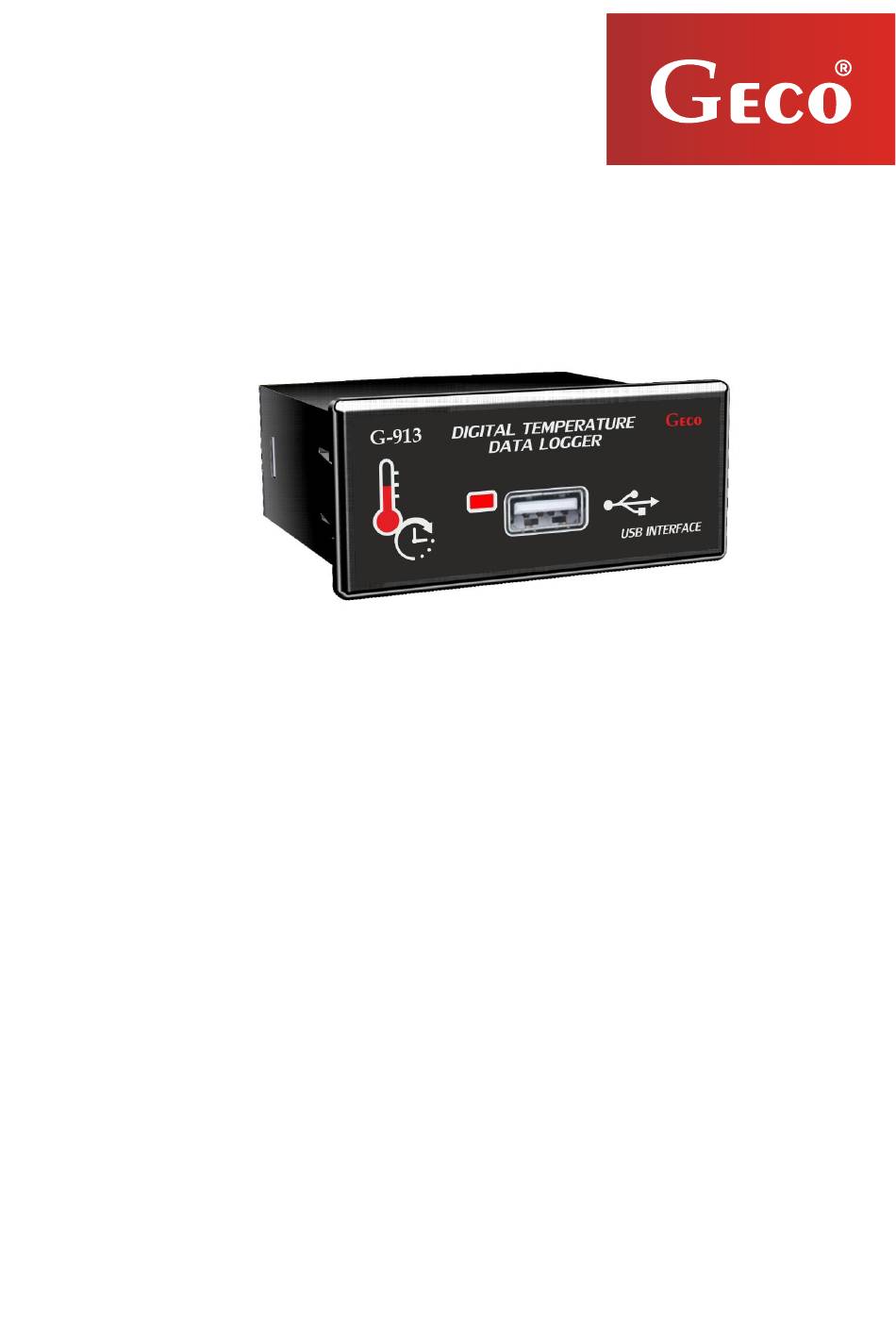

SERVICE OPERATING MANUAL FOR INDEPENDENT TEMPERATURE
RECORDER
G-913-P00/P01
For software version 01a
Please read the manual carefully before connecting and starting any of our devices. In case of any
doubts, please contact us during working hours (8 a.m. to 4 p.m.).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-913-P00 and is the answer not in the manual?

Questions and answers

Related Manuals for Geco G-913-P00

Summary of Contents for Geco G-913-P00

  • Page 1 SERVICE OPERATING MANUAL FOR INDEPENDENT TEMPERATURE RECORDER G-913-P00/P01 For software version 01a Please read the manual carefully before connecting and starting any of our devices. In case of any doubts, please contact us during working hours (8 a.m. to 4 p.m.).

  • Page 2: Table Of Contents

    ATE AND TIME CHANGING 5.2..........................9 ONFIGURATION FILES 5.3....................10 EADING OF REGISTERED MEASUREMENTS INFORMATION REGARDING MARKING AND COLLECTION OF WASTE ELECTRIC AND ELECTRONIC EQUIPMENT ............................13 VII. NOTES ............................13 PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 3: Version Marking

    PAGE 3 VERSION MARKING 1.1. Description The controller is available in two versions: G-913-P00 (without built-in battery) and G-913-P01 (with built-in battery): The G-913-P00 recorder can only operate on mains supply The G-913-P01 recorder can operate on a lithium-polymer battery that maintains data recording after a power failure.

  • Page 4: Description Of The Recorder Panel

    It is sufficient to clean the front plate with a wet cloth from time to time. 2.1. DESCRIPTION OF THE RECORDER PANEL USB 2.0 connector to A diode that signals support USB storage recording, operation of USB storage and alarm states PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 5: Connecting And Powering The Recorder

    USER MANUAL G-913- P00/P01 PAGE 5 Technical Data Operating voltage 230V AC +10% -15% Power frequency 5060Hz Operating temperature range od +5°C do +40°C Humidity od 20% do 80% RH Sensor type NTC 2,2k Sensor operating temperature NTC: -40°C  120°C range Recording interval 5 min...

  • Page 6: Working States Of G-913

     Sensor 2 error  No communication between module and usb flash All alarms are indicated in the same way, the red LED works in the following sequence: 3 signals | break PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 7: Visualizastion Of States Transition

    If more than one alarm occurs, the alarm codes are displayed one after another. The alarm states are recorded in the register as Err + (sensor opening) and Err (sensor short-circuit) instead of the registered temperature. PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 8: Standard Work

    Omitting the configuration variables "D:" and "T:" will bypass the change of date and time, and these variables are necessary to properly decode the file and save the file REPORT.txt in which additional information will be attached. PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 9: Configuration Files

    The logger resets, clears logs, and maintains off until main supply is turned on again 2) Log clear File name: clear.txt Data to write in file: none Action: Clears all logs in module PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 10: Reading Of Registered Measurements

    Reading a certain number of registers (from 1 to 30,000) In the file "READ.txt", write R: XXXXX where XXXXX is any number between 1 and 30,000 corresponding to the number of read entries PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...
  • Page 11 After correct data saving on a USB storage device, the following information is saved in the device's directory: - The name of the recorder and the version of the software - Device ID, - Date of registration, - Registration period, PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...
  • Page 12 Then the temperature registers are saved in the form: - Record number, - Date and time of recording, - Sensor 1 temperature, - Sensor 2 temperature Fig 4. Example of a correctly saved file with temperature register PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2023.02.20...

  • Page 13: Information Regarding Marking And Collection Of Waste Electric And Electronic Equipment

    USER MANUAL G-913- P00/P01 PAGE 13 INFORMATION REGARDING MARKING AND COLLECTION OF WASTE ELECTRIC AND ELECTRONIC EQUIPMENT UWAGA! The symbol placed on a product or on its packaging indicates that it is subject to selective collection of waste electric and electronic equipment.
