Geco G-913-P00 Service & Operating Manual

Independent temperature recorder
Hide thumbs Also See for G-913-P00:

Advertisement

Quick Links

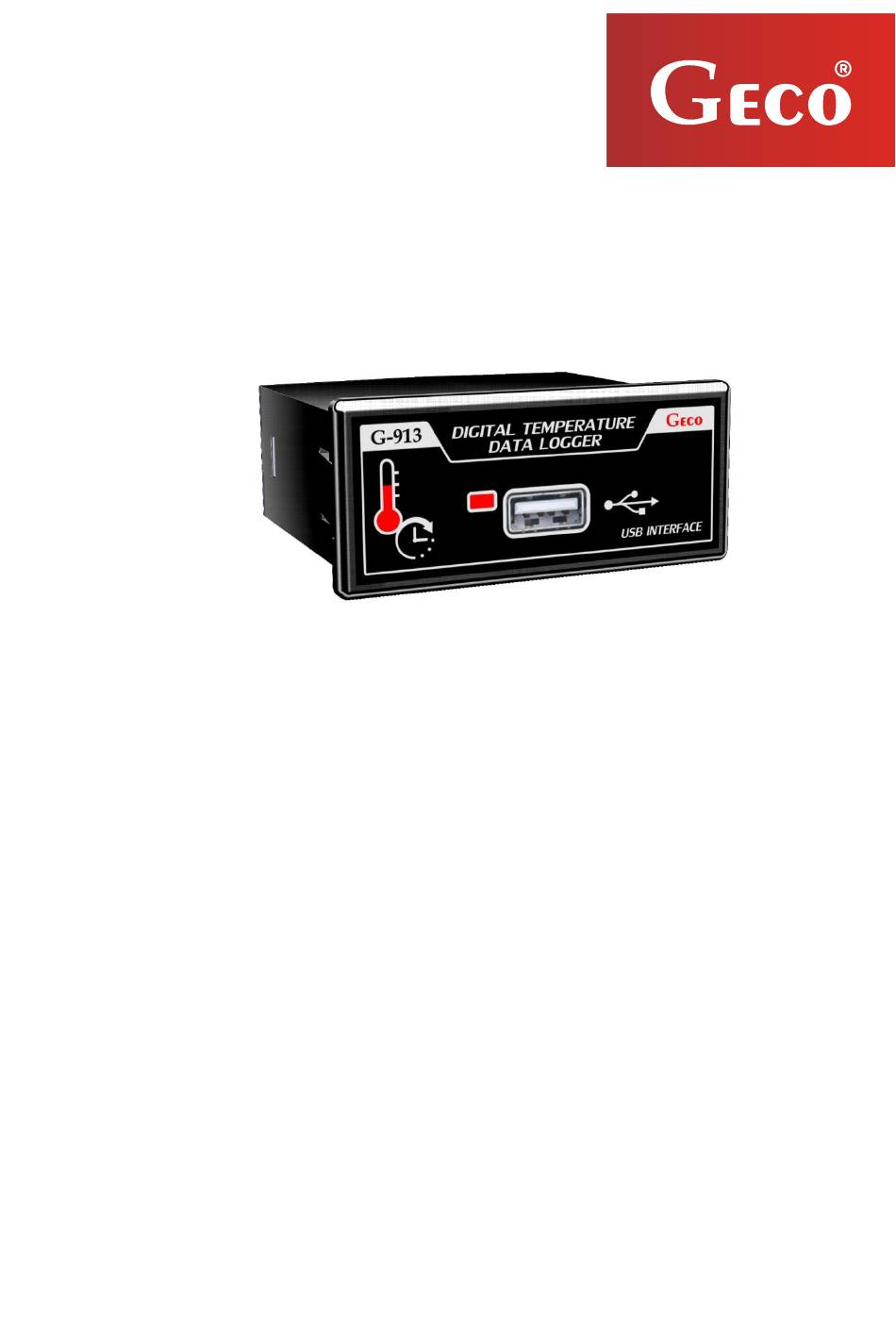

SERVICE OPERATING MANUAL FOR INDEPENDENT TEMPERATURE
RECORDER
G-913-P00
For software version 01a
Please read the manual carefully before connecting and starting any of our devices. In case of any
doubts, please contact us during working hours (8 a.m. to 4 p.m.).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-913-P00 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geco G-913-P00

  • Page 1 SERVICE OPERATING MANUAL FOR INDEPENDENT TEMPERATURE RECORDER G-913-P00 For software version 01a Please read the manual carefully before connecting and starting any of our devices. In case of any doubts, please contact us during working hours (8 a.m. to 4 p.m.).
  • Page 2: Table Of Contents

    ATE AND TIME CHANGING ....................8 EADING OF REGISTERED MEASUREMENTS ........................9 ILE WITH DATA REGISTER INFORMATION REGARDING MARKING AND COLLECTION OF WASTE ELECTRIC AND ELECTRONIC EQUIPMENT ............................10 NOTES ............................10 PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 3: Description Of The Recorder Panel

    It is sufficient to clean the front plate with a wet cloth from time to time. 2 DESCRIPTION OF THE RECORDER PANEL A diode that signals USB 2.0 connector to recording, operation of USB support USB storage storage and alarm states PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 4: Technical Data

    USER MANUAL G-913-P01 PAGE 4 3 Technical Data Operating voltage 230V AC +10% -15% Power frequency 5060Hz Operating temperature range od +5°C do +40°C Humidity od 20% do 80% RH Sensor type NTC 2,2k Sensor operating temperature NTC: -40°C  120°C range Recording interval 5 min...
  • Page 5: Working States Of G-913

     Initialization after turning on the power supply - POWERUP;  Standard work - RUN;  Alarm – ALARM; Visualizastion of states transition POWERUP ALARM change of state by a control algorithm PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 6: Description Of The Conditions For Transitions Between States

    During the operation of the device, it is possible to read the measurement register at any time, and change the date and time settings. After inserting the USB device into the device, the LED lights up permanently and goes out only after USB operation PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 7: Date And Time Changing

    REPORT.txt in which additional information will be attached. Fig 2. An example of correct encoding of the file CLOCK.txt PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 8: Reading Of Registered Measurements

    Entering an incorrect number or omitting the configuration variable "R:", "D:", "H:", "M:" will skip this file and read the maximum number (30,000) measurements and save the file REPORT.txt in which the information will be attached additional. PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 9: File With Data Register

    Then the temperature registers are saved in the form: - Record number, - Date and time of recording, - Sensor 1 temperature, - Sensor 2 temperature Fig 4. Example of a correctly saved file with temperature register PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 10: Information Regarding Marking And Collection Of Waste Electric And Electronic Equipment

    USER MANUAL G-913-P01 PAGE 10 9 INFORMATION REGARDING MARKING AND COLLECTION OF WASTE ELECTRIC AND ELECTRONIC EQUIPMENT UWAGA! The symbol placed on a product or on its packaging indicates that it is subject to selective collection of waste electric and electronic equipment.
