Geco G-913-P01 Service & Operating Manual

Independent temperature recorder, for software version 01a
Hide thumbs Also See for G-913-P01:

Advertisement

Quick Links

SERVICE OPERATING MANUAL FOR INDEPENDENT TEMPERATURE
RECORDER
G-913-P01
For software version 01a
Please read the manual carefully before connecting and starting any of our devices. In case of any
doubts, please contact us during working hours (8 a.m. to 4 p.m.).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-913-P01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geco G-913-P01

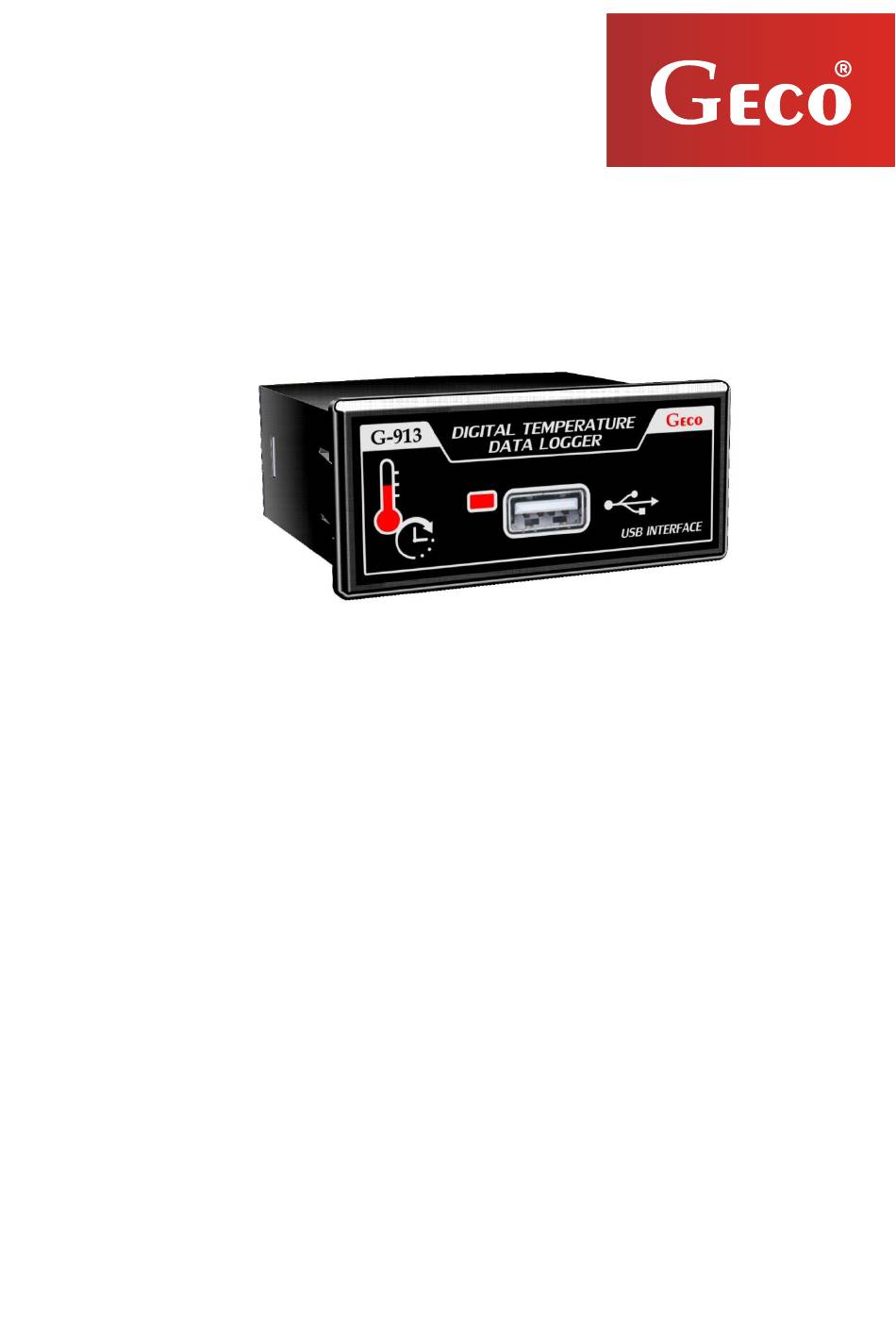

  • Page 1 SERVICE OPERATING MANUAL FOR INDEPENDENT TEMPERATURE RECORDER G-913-P01 For software version 01a Please read the manual carefully before connecting and starting any of our devices. In case of any doubts, please contact us during working hours (8 a.m. to 4 p.m.).
  • Page 2: Table Of Contents

    EADING OF REGISTERED MEASUREMENTS 8.3 F ................9 ILE WITH DATA REGISTER 9 INFORMATION REGARDING MARKING AND COLLECTION OF WASTE ELECTRIC AND ELECTRONIC EQUIPMENT ............10 10 NOTES ....................10 PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 3: General Characteristics

    This device registers measurements from two temperature sensors connected directly to it. The recorder is designed for independent work. The operating mode depends on the settings made by the manufacturer. Temperature recorder G-913-P01 was equipped with:  built-in memory allowing for recording of measured temperatures ...
  • Page 4: Technical Data

    USER MANUAL G-913-P01 PAGE 4 3 Technical Data Operating voltage 230V AC +10% -15% Power frequency 5060Hz Operating temperature range od +5°C do +40°C Humidity od 20% do 80% RH Sensor type NTC 2,2k Sensor operating temperature NTC: -40°C  120°C...
  • Page 5: Working States Of G-913

    USER MANUAL G-913-P01 PAGE 5 Fig 1. Connection diagram of the G-913-P01 recorder 5 WORKING STATES OF G-913 The recorder may be in one of the following operating states:  Initialization after turning on the power supply - POWERUP;  Standard work - RUN;...
  • Page 6: Description Of The Conditions For Transitions Between States

    Each correct data registration is confirmed by a short blink of the diode. During the operation of the device, it is possible to read the measurement register at any time, and change the date and time settings. PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 7: Date And Time Changing

    REPORT.txt in which additional information will be attached. Fig 2. An example of correct encoding of the file CLOCK.txt PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 8: Reading Of Registered Measurements

    Entering an incorrect number or omitting the configuration variable "R:", "D:", "H:", "M:" will skip this file and read the maximum number (30,000) measurements and save the file REPORT.txt in which the information will be attached additional. PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 9: File With Data Register

    Then the temperature registers are saved in the form: - Record number, - Date and time of recording, - Sensor 1 temperature, - Sensor 2 temperature Fig 4. Example of a correctly saved file with temperature register PPUH „GECO” Sp. z o.o. ISSUE I AS OF 2018.09.13...
  • Page 10: Information Regarding Marking And Collection Of Waste Electric And Electronic Equipment

    USER MANUAL G-913-P01 PAGE 10 9 INFORMATION REGARDING MARKING AND COLLECTION OF WASTE ELECTRIC AND ELECTRONIC EQUIPMENT UWAGA! The symbol placed on a product or on its packaging indicates that it is subject to selective collection of waste electric and electronic equipment.
