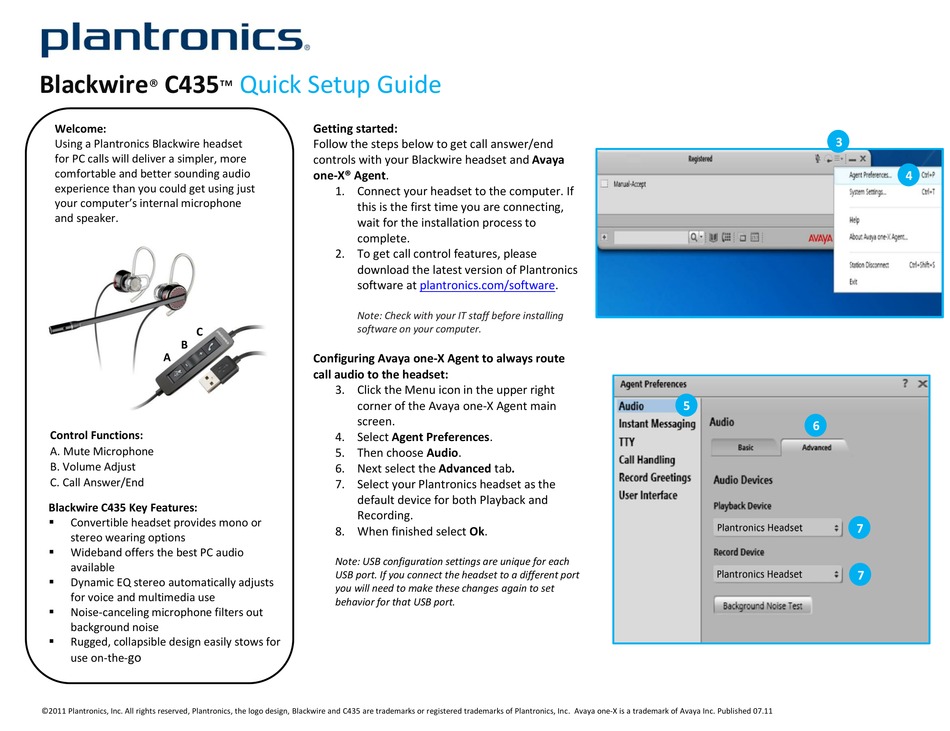

Plantronics Blackwire C435 Quick Setup Manual

Blackwire C435
®
Welcome:
Using a Plantronics Blackwire headset
for PC calls will deliver a simpler, more
comfortable and better sounding audio
experience than you could get using just
your computer's internal microphone
and speaker.
C
B
A
Control Functions:

A. Mute Microphone

B. Volume Adjust

C. Call Answer/End


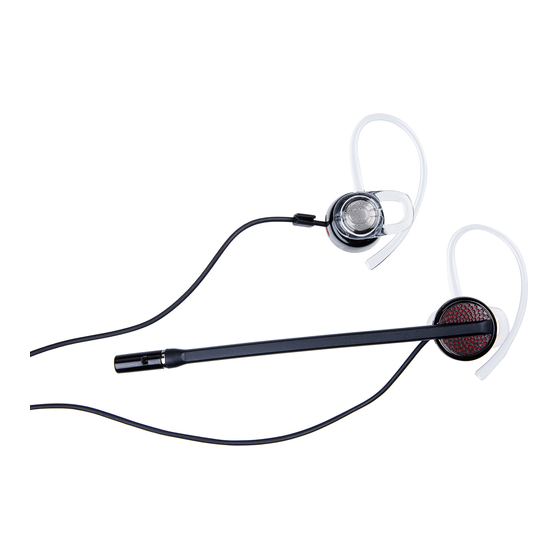

Blackwire C435 Key Features:

Convertible headset provides mono or
stereo wearing options

Wideband offers the best PC audio
available

Dynamic EQ stereo automatically adjusts
for voice and multimedia use

Noise-canceling microphone filters out
background noise

Rugged, collapsible design easily stows for
use on-the- go
©2011 Plantronics, Inc. All rights reserved, Plantronics, the logo design, Blackwire and C435 are trademarks or registered trademarks of Plantronics, Inc. Avaya one-X is a trademark of Avaya Inc. Published 07.11
Quick Setup Guide
™
Getting started:
Follow the steps below to get call answer/end
controls with your Blackwire headset and Avaya
one-X® Agent.
1. Connect your headset to the computer. If
this is the first time you are connecting,
wait for the installation process to
complete.
2. To get call control features, please
download the latest version of Plantronics
software at plantronics.com/software.
Note: Check with your IT staff before installing
software on your computer.
Configuring Avaya one-X Agent to always route
call audio to the headset:
3. Click the Menu icon in the upper right
corner of the Avaya one-X Agent main
screen.
4. Select Agent Preferences.
5. Then choose Audio.
6. Next select the Advanced tab.
7. Select your Plantronics headset as the
default device for both Playback and
Recording.
8. When finished select Ok.
Note: USB configuration settings are unique for each
USB port. If you connect the headset to a different port
you will need to make these changes again to set
behavior for that USB port.
3
5
6
7
7
4
