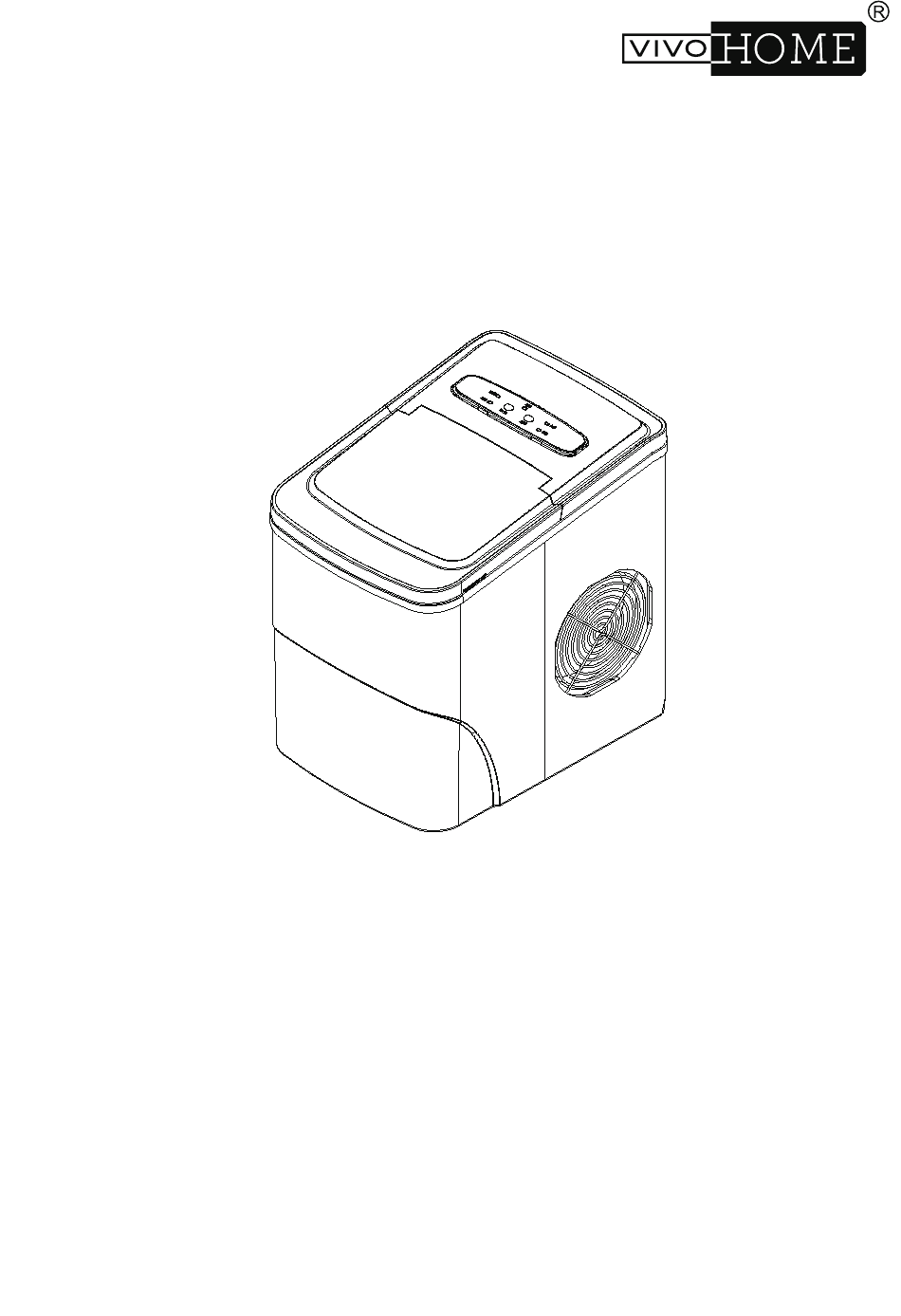

PORTABLE AUTOMATIC ICE MAKER
HZB-12/B
INSTRUCTION MANUAL
It is important that you read these bad spacing before using your portable ice maker and we
strongly recommend that you keep them in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HZB-12/B and is the answer not in the manual?

Questions and answers

Mary Buckley
May 24, 2025

How can i order a replacement part for my Portable Automatic Ice Maker for the nylon plug drain. I lost the rubber o-ring that holds it in place

George
February 2, 2025

How long will ice cubes last after bucket is full? Must ice cubes be removed?

Summary of Contents for VIVOHOME HZB-12/B

  • Page 1 PORTABLE AUTOMATIC ICE MAKER HZB-12/B INSTRUCTION MANUAL It is important that you read these bad spacing before using your portable ice maker and we strongly recommend that you keep them in a safe place for future reference.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS………………………………………………. ….2 PREPARING YOUR ICE MAKER FOR USE ………………………………………………………………………3 IMPORTANT SAFETY TIPS GETTING TO KNOW YOUR UNIT ………………………………………………………… ………………………………………………………… OPERATING PROCEDURES & MAINTENANCE ………………… …………………………………………… ………………… …………………………………………… UNPACKING UNPACKING YOUR YOUR MAKER MAKER ………………...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PREPARING YOUR ICE MAKER FOR USE Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER”...
  • Page 4: Important Safety Tips

    Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and  make sure that there is at least 4 inches of space between the back of your unit and wall. Keep a minimum distance of 4 inches on each side of your unit free. Do not use other liquid to make the ice-cube other than water.
  • Page 5: Getting To Know Your Unit

    GETTING TO KNOW YOUR UNIT General instrucions 1. Ice scoop 2. Ice-full sensor 3. Ice basket 4. Top cover with transparent window 5. Air exhaust 6. Water drain cap: at front bottom side of the unit. 7. MAXIMUM WATER LEVEL: ▲...
  • Page 6: Operating Procedures & Maintenance

    OPERATING PROCEDURES & MAINTENANCE Postion of control panel & function Control Panel: Easy to use, visible functions touch display setting. A. Selected ice size display: Small and Large. B. Power indicator C. Ice-Full indicator D .Water shortage indicator E. Button to turn on/off the unit. F.
  • Page 7: Unpacking Your Ice Maker

    UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service. 2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket. 3.
  • Page 8: Using Your Ice Maker

    USING YOUR ICE MAKER 1. Open the cover, remove the ice basket and pour water into tank. Keep water level below the water level mark. 2. Press “ON/OFF” button on the control panel to begin the ice making cycle. 3. Select the ice cube size by pressing the “SELECT” button. If the room temperature is lower than 60℉, it is recommended to select small ice cube in order to avoid ice sticking together.
  • Page 9: Technical Parameters & Circuit Diagram

    TECHNINCAL PARAMETERS & CIRCUIT DIAGRAM Model HZB-1 Model HZB-1 Protection Type Protection Type Power Power Making Current Making Current Harvest Current Harvest Current Refrigerant 0.74Oz Refrigerant 0.74Oz Design Pressure Design Pressure High Side 290Psig High Side 290Psig Side 88Psig Side 88Psig Vesicant Vesicant...
  • Page 10: Explosive Drawings

    EXPLOSIVE DRAWINGS Qty/ Qty/ Part description Part description Part description /Per Power cord Ice shovel Sychronuous motor plastic clip Back btm panel Condenser Back panel Back top panel DC Fan motor Plate back support Decorative inlay Copper tube filter Evaporator Displaying PCB Nylon plug drain Control box cover...
  • Page 11 NOTE: To continuously improve its products, VIVOHOME reserves the right to modify this information without prior notification. Please contact customer service via support@vivo-home.com with any questions, comments, or concerns. Thank you for using VIVOHOME products in your home! AMAZON INSTAGRAM...
