Summary of Contents for STIMARE Infinite Peripherals Linea Pro 7

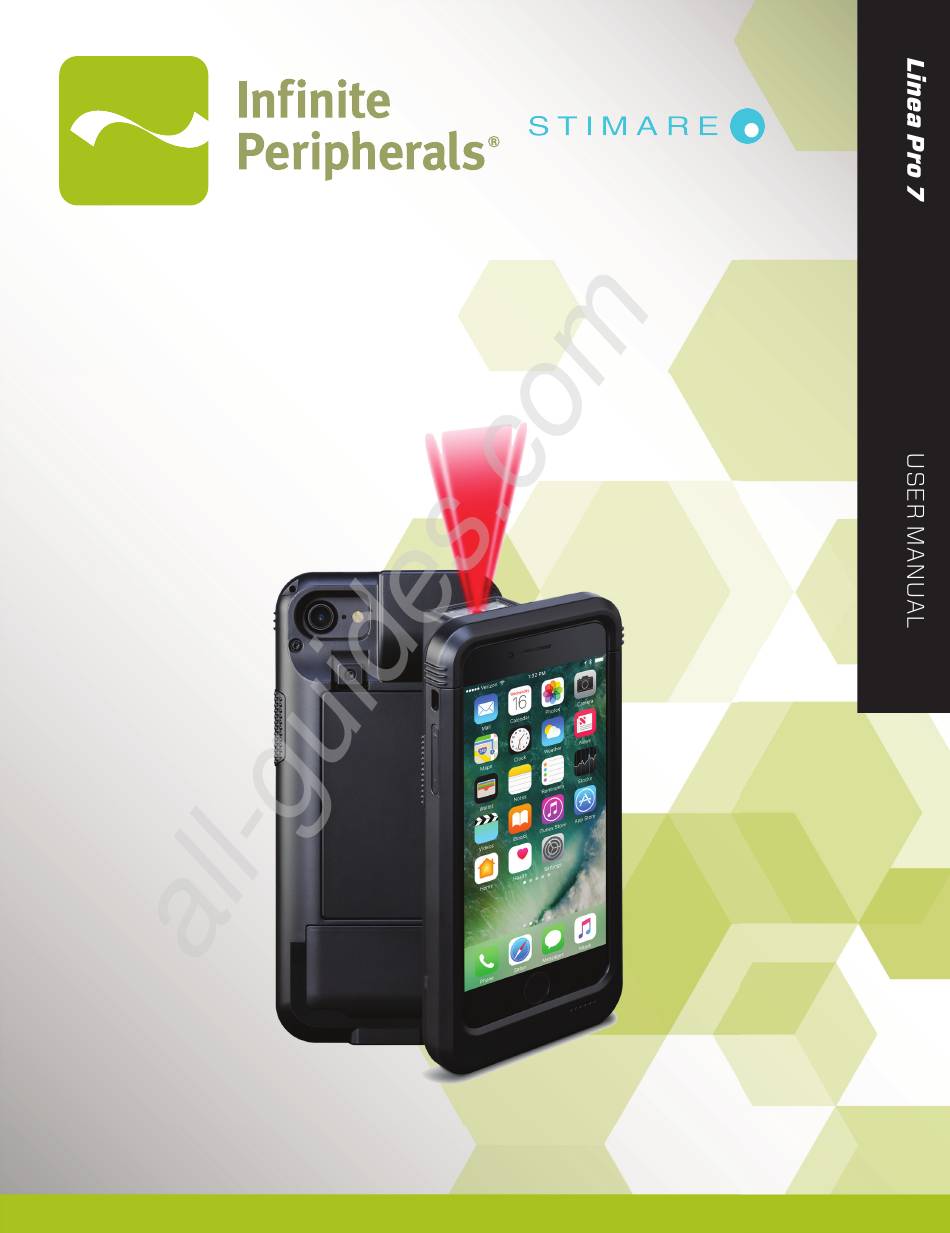

- Page 1 All manuals and user guides at all-guides.com Linea Pro ®...
-
Page 2: Contact Information
All manuals and user guides at all-guides.com CONTACT INFORMATION Note: iOS device and other items shown sold separately. Linea Pro 7 User Manual Page 1 of 30 UM-00028 Version: A... -
Page 3: Legal Notice
All manuals and user guides at all-guides.com LEGAL NOTICE “Made for iPhone” means that an electronic accessory has been designed to connect specifically to the iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. -
Page 4: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents CONTACT INFORMATION ..............................LEGAL NOTICE ..................................COMPATIBILITY ..................................TRADEMARK CREDITS ..............................BOX CONTENTS ..................................Before Using Your Linea Pro 7 ............................5 ACCESSORIES ..................................GETTING STARTED ................................Warnings, Cautions and Notes .............................6 First Steps .....................................6 LINEA PRO 7 FEATURES .............................. - Page 5 All manuals and user guides at all-guides.com ..........................Figure 12: Magnetic Stripe Reader Contactless Card Reader (RFID) ..........................19 ............................... Figure 13: RFID Reader Syncing ....................................20 ........................Figure 14: Syncing through USB Port RESETTING YOUR LINEA PRO 7 ......................................................Figure 15: Reset Function SERVICING YOUR LINEA PRO 7 ..........................
-
Page 6: Box Contents
All manuals and user guides at all-guides.com BOX CONTENTS Before Using Your Linea Pro 7 • Remove the device and any included accessories from the shipping carton and verify contents against your packing list. • Retain all packing materials, invoice, and bill of lading. These may be required to return the device for servicing later, or to process a claim with the shipping carrier. -
Page 7: Getting Started
All manuals and user guides at all-guides.com GETTING STARTED Warnings, Cautions and Notes Please observe the Warnings, Cautions and Notes presented throughout this manual. An explanation of these items is provided below: Symbol Description Actions may result in a serious outcome (e.g., injury, death or other adverse WARNING: affect) to the user. -
Page 8: Linea Pro 7 Features
All manuals and user guides at all-guides.com LINEA PRO 7 FEATURES The Linea Pro 7 allows mobile employees to convert their iPhone into a powerful solution for the retail, warehousing, supply chain, ticketing and hospitality industries. The Linea Pro 7 includes an encrypted or unencrypted 3-track magnetic stripe reader, optional 1D or 2D barcode scanner, optional Bluetooth®, and optional RFID. -
Page 9: Linea Pro 7 Product Overview
All manuals and user guides at all-guides.com LINEA PRO 7 PRODUCT OVERVIEW iOS Camera Opening Top Cover Volume Controls Audio Pass-through 9-pin Lightning™ Connector Figure 1: Front View Figure 2: Side View Reset Button USB Sync/Charge Port Scan Engine Figure 3: Top View Figure 4: Bottom View Linea Pro 7 User Manual Page 8 of 30... - Page 10 All manuals and user guides at all-guides.com Top Cover Torx Screw Top Cover Torx Screw Scan Scan Button Button Battery Compartment Battery Status Button & Indicators RFID Antenna Magnetic Stripe Reader Figure 5: Back View Linea Pro 7 User Manual Page 9 of 30 UM-00028 Version: A...
-
Page 11: Assembling Your Linea Pro 7
All manuals and user guides at all-guides.com ASSEMBLING YOUR LINEA PRO 7 To Assemble the Linea Pro 7: Push the top cover forward, then up to insert the iOS device. 2. Connect the iOS device by firmly sliding it onto the Lightning™ Connector. 3. -
Page 12: Charging Your Linea Pro 7
All manuals and user guides at all-guides.com CHARGING YOUR LINEA PRO 7 Charging the Linea Pro 7 through the USB Port The Linea Pro 7 uses a Lithium ion rechargeable battery and supports two modes for charging. • Default Mode: Charging time is approximately 3h and 40min •... -
Page 13: Battery Status Indicators
All manuals and user guides at all-guides.com Battery Status Indicators The battery status may be checked by pressing the Battery Status button. The table below identifies the battery charge status by number of LED indicators illuminated on the device. Battery Status Button &... -
Page 14: Developing Applications For Your Linea Pro 7
All manuals and user guides at all-guides.com DEVELOPING APPLICATIONS FOR YOUR LINEA PRO 7 Software is not provided with your Linea Pro 7. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Linea Pro 7 into your iOS application requires the use of the Infinite Peripherals Universal SDK. -
Page 15: Powering On Your Linea Pro 7
All manuals and user guides at all-guides.com POWERING ON YOUR LINEA PRO 7 Dual Purpose Scan Buttons The Linea Pro 7 has two Scan Buttons located on each side of the unit. Both Scan Buttons are set up as a dual-purpose button that can both power on the unit and scan barcodes. To Power on the Linea Pro 7: With the Linea Pro 7 powered off, press one of the Scan Buttons until a single beep is sounded. -
Page 16: Linea Pro 7 Status And Operational Modes
All manuals and user guides at all-guides.com LINEA PRO 7 STATUS AND OPERATIONAL MODES The Linea Pro 7 additionally uses the battery indicator LEDs to indicate various modes of operation. LED lighting indicators provide information regarding connection status, charging and/or low battery conditions. -
Page 17: Using Your Linea Pro 7
All manuals and user guides at all-guides.com USING YOUR LINEA PRO 7 Barcode Scanner - 1D Barcodes The Linea Pro 7 1D model uses a scan engine that supports one-dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. To Scan a 1D Barcode: Activate the Linea Pro 7 by pressing either Scan Button. -
Page 18: Barcode Scanner - 2D Barcodes
All manuals and user guides at all-guides.com Barcode Scanner - 2D Barcodes The Linea Pro 7 2D model uses a scan engine that supports one-dimensional (1D) and two- dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. -
Page 19: Magnetic Stripe Reader (Msr)
All manuals and user guides at all-guides.com Magnetic Stripe Reader (MSR) The Linea Pro 7 has a built-in magnetic stripe reader. The MSR incorporates a 3-track, bi-directional, encryption-capable magnetic read head. A single swipe can read field data from all three tracks. The MSR will function as an unencrypted MSR until an encryption key is injected into the MSR head by a designated Infinite Peripherals key injection facility. -
Page 20: Contactless Card Reader (Rfid)
All manuals and user guides at all-guides.com Contactless Card Reader (RFID) The Linea Pro 7 has a built-in RFID tag/card reader. The RFID reader incorporates several RFID format depending on the model of your Linea Pro 7. To Use the RFID Reader: Activate the Linea Pro 7 by pressing either Scan Button. -
Page 21: Syncing
All manuals and user guides at all-guides.com Syncing The Linea Pro 7 portable barcode scanner and card reader is designed specifically for use with iPhone 7, which allows the iPhone to sync with iTunes through the Linea Pro 7 while they are connected. -
Page 22: Resetting Your Linea Pro 7
All manuals and user guides at all-guides.com RESETTING YOUR LINEA PRO 7 The Linea Pro 7 can perform a soft reset without requiring the removal of the iOS device. The soft- reset feature cycles the power, allowing the firmware of the Linea Pro 7 to restart. To Reset the Linea Pro 7: Locate the small pinhole near the USB port. -
Page 23: Servicing Your Linea Pro 7
All manuals and user guides at all-guides.com SERVICING YOUR LINEA PRO 7 Battery Replacement The Linea Pro 7 is designed with a user replaceable 2100mAh battery. To Replace the Battery: Using a T5 x 40mm Torx Driver, remove the torx screw from the back cover. 2. -
Page 24: Sred Encrypted Msr Information
All manuals and user guides at all-guides.com SRED Encrypted MSR Information Integrating the PCI PTS 3.x SRED-certified Linea Pro 7 into your solution requires proper maintenance of the Linea Pro 7 to ensure long and trouble free operation of the product. This includes maintaining proper battery charge to prevent the Linea Pro 7 from entering Tamper Detect mode. -
Page 25: Troubleshooting > Card Reading
All manuals and user guides at all-guides.com TROUBLESHOOTING Troubleshooting > Card Reading If the Linea Pro 7 is not reading the magnetic strip properly, refer to the table below for possible causes: Problem Possible Cause • Card is inserted incorrectly No card data returned during •... -
Page 26: Troubleshooting > Contactless Card Reading
All manuals and user guides at all-guides.com Troubleshooting > Contactless Card Reading If the Linea Pro 7 is not reading RFID Tags/Cards properly refer to the table below for possible causes: Problem Possible Cause • Linea Pro 7 battery is too low RFID does not power on •... -
Page 27: Technical Data
All manuals and user guides at all-guides.com TECHNICAL DATA MECHANICAL Processor 32-bit ARM™ Cortex™ - M3 MCU Compatibility iPhone 7/6s/6 Apple 9-pin connector Connectivity Pass-through sync via USB Type-C charge/sync cable Weight 148 grams (5.2 oz.) without iOS Device 1D and 2D Scanner: Dimensions 157 mm (l) x 77 mm (w) x 27 mm (h) (6.2 in x 3 in x 1.1 in.) •... - Page 28 All manuals and user guides at all-guides.com Bluetooth Communication Bluetooth 2.0, Class 2 (option), Serial Port Profile (SPP) (Optional) Visual: 4 LEDS for battery status Indicators Audio: Electromagnetic Buzzer CERTIFICATIONS General Apple MFi / FCC Payment PCI PTS 3.x SRED (optiona) Drop Test 1.2m (3.9 ft) ENVIRONMENT...
-
Page 29: Warranty
All manuals and user guides at all-guides.com WARRANTY Infinite Peripherals (IPC) does not warrant, and is not responsible for, any damage to the Linea Pro 7 (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. -
Page 30: Symbols For Use
All manuals and user guides at all-guides.com SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules Linea Pro 7 User Manual Page 29 of 30 UM-00028 Version: A... -
Page 31: Federal Communications Commission
All manuals and user guides at all-guides.com FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
