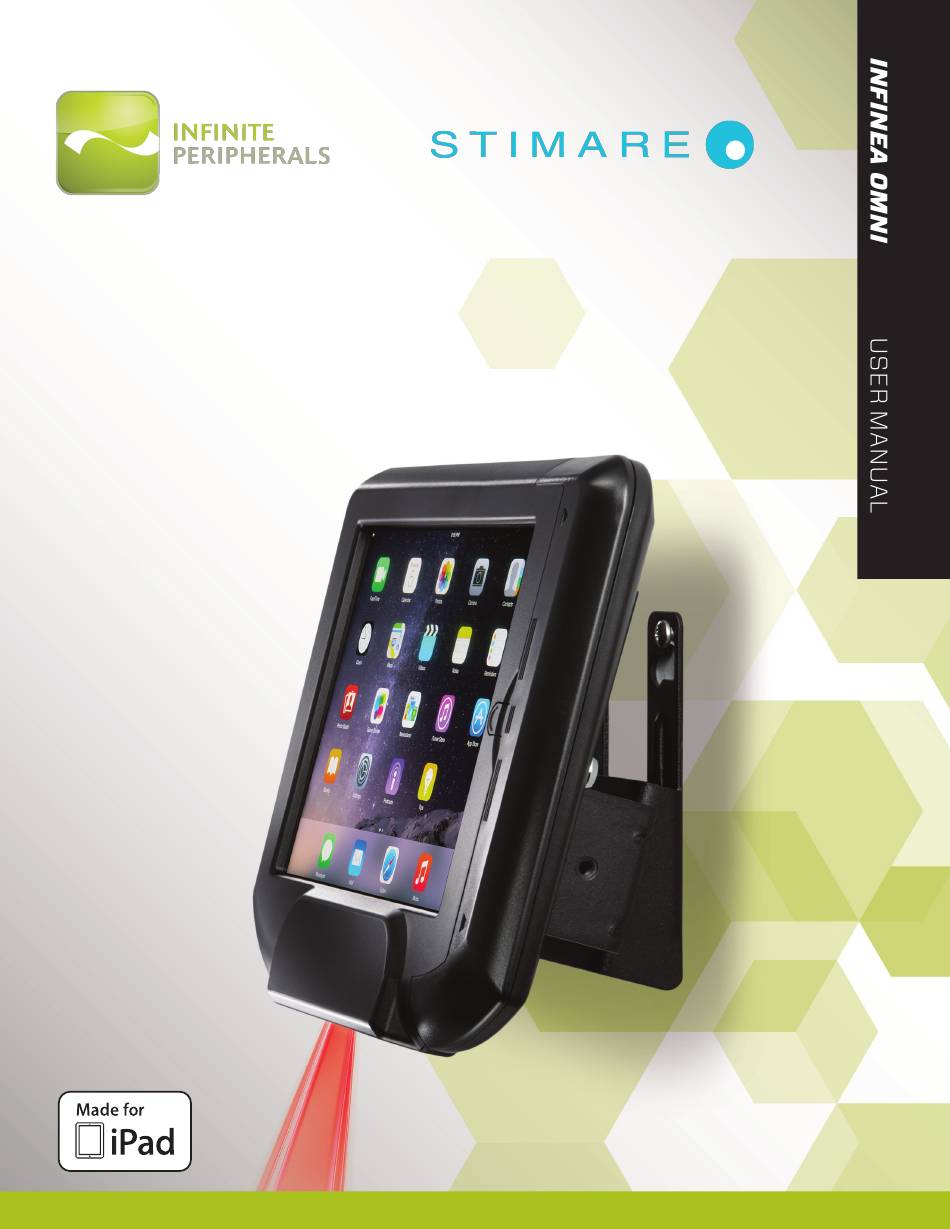

- Page 1 INFINEA OMNI ® For iPad ®...
-
Page 2: Contact Information
CONTACT INFORMATION Web: General enquiries: Support: United States: United Kingdom: Ireland: Infinea Omni User Manual Page 1 of 18 UM-00005 Version: A... -
Page 3: Legal Notice
LEGAL NOTICE Made for “iPad Air” means that an electronic accessory has been designed to connect specifically to the iPad Air and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPad Air may affect wireless performance. -
Page 4: Table Of Contents
Table of Contents CONTACT INFORMATION ..............................LEGAL NOTICE ..................................COMPATIBILITY ..................................BOX CONTENTS ..................................GETTING STARTED ................................Warnings, Cautions and Notes .............................5 First Steps .....................................5 DEVELOPING APPLICATIONS ............................FEATURES ..................................................................Figure 1: Front View ............................... Figure 2: Back View ................................ -
Page 5: Box Contents
BOX CONTENTS Your Infinea Omni will ship with the items listed below: Part Number Description Image *IO-02D-A-XX Infinea Omni *IO-O2D-A-SW-XX H0008-1 Tubular security key P0053 Key plug H0021 M6 Socket Hex Cap Screws QSG-10001 Infinea Omni Quick Start Guide *Note: Box contents may vary based on order configuration. RECOMMENDED ASSEMBLY TOOLS •... -
Page 6: Getting Started
GETTING STARTED Warnings, Cautions and Notes Please observe the Warnings, Cautions and Notes presented throughout this manual. An explanation of these items is provided below: Symbol Description WARNING: Actions may result in a serious outcome (e.g., injury, death or other adverse affect) to the user. CAUTION: Special care is required to avoid damage to the product or oth- er property. -
Page 7: Developing Applications
DEVELOPING APPLICATIONS Software is not provided with your Infinea Omni. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Infinea Omni into your iOS application requires the use of the Infinite Peripherals Universal SDK. The SDK incorporates an API specifically for developing applications to use the barcode scanning functionality of the Infinea Omni. -
Page 8: Features
FEATURES Feature Description The Infinea Omni supports one-dimensional (1D) and two-dimensional (2D) barcode symbols, which can be read in any direction (omni- 2D Barcode Scanner directional). The effective reading distance of the barcode reader varies depending on the barcode size. The barcode scanner is capable of reading barcodes on an LCD screen. - Page 9 Home Button Scanner Figure 1: Front View WARNING: DO NOT look into scanner while in operation. Ethernet Port NOTE: Power over Ethernet (POE) only. Green LED illumination indi- cates active PoE. (PoE Module is IEEE802.3af com- pliant. PoE Class 0, 5Vdc) Tubular Lock Reset Button Figure 2: Back View Infinea Omni User Manual Page 8 of 18...
- Page 10 iPad On/Off Note: Provides access to the Power Button on the iPad with- out opening the unit. Figure 3: Side View Infinea Omni User Manual Page 9 of 18 UM-00005 Version: A...
-
Page 11: Assembling The Infinea Omni
ASSEMBLING THE INFINEA OMNI Remove the contents from the packaging material and verify the contents (see Box Contents). The unit is shipped with the hinge locked in position. It is necessary to unlock the unit with the security key. Please locate the tubular lock on the back of the unit as shown in Figure 4 below, and insert the key to unlock accordingly. - Page 12 Figure 6: Opening the Hinge 4. Before installing the iPad Air device, it is necessary to plug the USB portion of the Lightning cable into the USB port on the board. The port is located on the same side as the hinge. Figure 7 identifies the location of the port.
-
Page 13: Optional Configuration - Ipad Access Restriction
Figure 8: Inserting the iPad Air Locate the Lightning connector on the iPad Air and insert the connector of the cable into the iPad Air. Neatly coil the cables inside the unit to permit the hinge to close and lock securely. 8. -
Page 14: Powering On The Infinea Omni
POWERING ON THE INFINEA OMNI Once the iPad Air has been integrated and the external power cable has been connected, the Infinea Omni automatically powers on through Power over Ethernet (POE) capability. The green LED in the ethernet port housing will illuminate when PoE is active. See Technical Data > Electrical > Input Power for additional information. -
Page 15: Troubleshooting
TROUBLESHOOTING Troubleshooting > Scanner If you are having problems scanning barcodes, refer to the table below for possible causes. Problem Possible Cause • Power is not available via Power over Ethernet (PoE). Green LED not illuminated. Scanner does not turn on •... -
Page 16: Technical Data
TECHNICAL DATA MECHANICAL Compatibility iPad Air Dimensions (without wall 283mm (L) x 225mm (W) x 84mm (H) (11.14 in. x 8.8 in. x 3.3 in.) mounting bracket) Weight 1250 grams (44.1 oz) without iPad Air • Home Button Buttons • Scanner Hardware Reset Button •... -
Page 17: Warranty
WARRANTY Infinite Peripherals (IPC) does not warrant, and is not responsible for, any smart phone or other device made by anyone other than IPC or approved manufacturer. If a material or workmanship defect arises with regard to any IPC product, and a valid claim is received within the Warranty Period, IPC (at IPC’s sole discretion) will: (1) repair the Infinea Omni product using new or refurbished parts, or (2) replace the Infinea Omni product with a new or refurbished Infinea Omni product. -
Page 18: Symbols For Use
SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Infinea Omni User Manual Page 17 of 18 UM-00005 Version: A... -
Page 19: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
