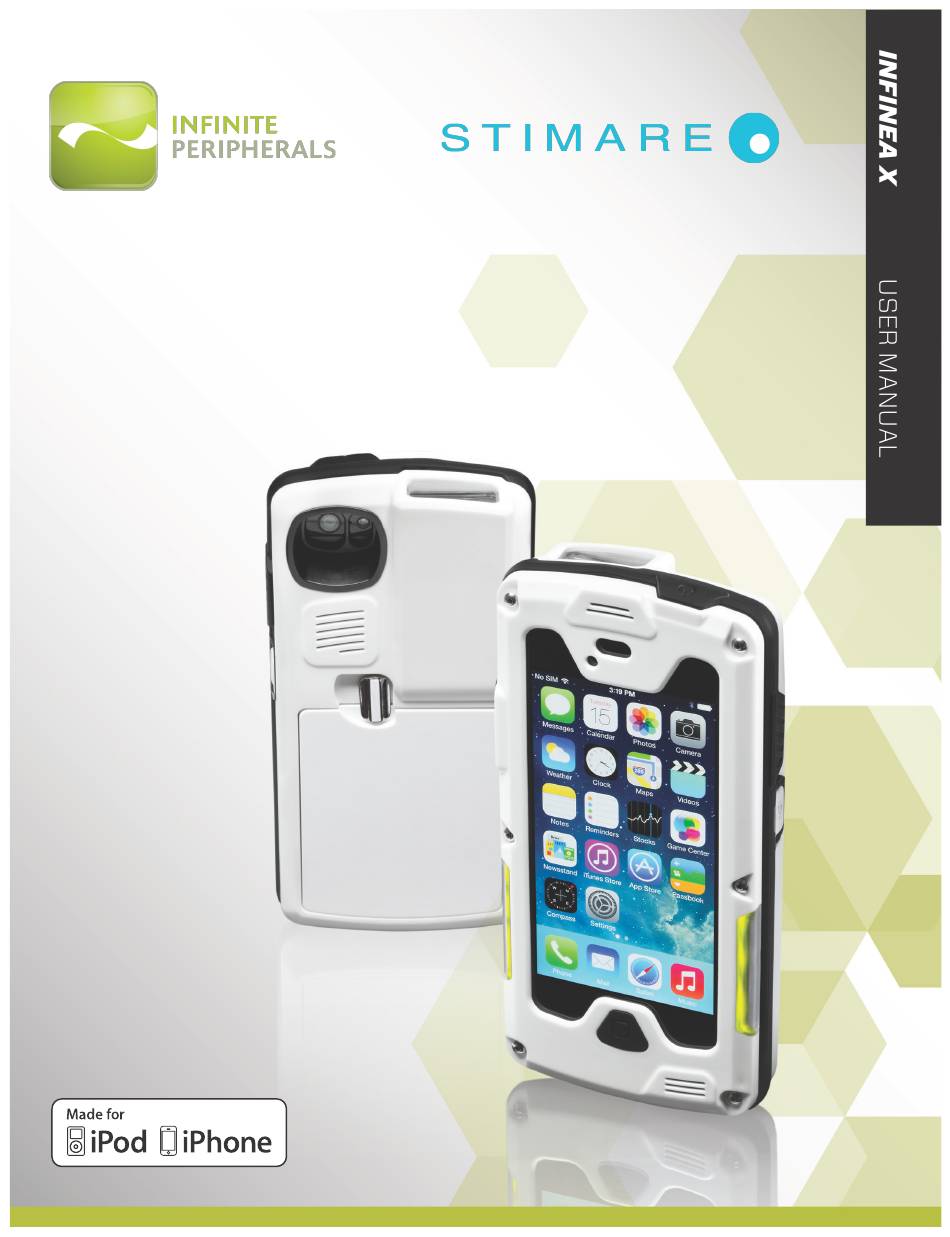

- Page 1 INFINEA ®...
- Page 2 CONTACT INFORMATION Web: www.stimare.net General enquiries: info@stimare.net Support: support@stimare.net United States: 4730 Tejon Street Denver CO 80211 Phone: +1 202 827 685z6 or: +1 847 448 0412 United Kingdom: Unit 4, Bramber Court, Bramber Road, London,W14 9PW, United Kingdom Phone: +44 208 099 8071...
- Page 3 LEGAL NOTICE “Made for iPod”, “Made for iPhone” and made for “iPad” mean that an electronic accessory has been designed to connect specifically to the iPod, iPhone or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
- Page 4 TABLE OF CONTENTS L L E E G G A A L L N N O O T T I I C C E E C C O O M M P P A A T T I I B B I I L L I I T T Y Y B B O O X X C C O O N N T T E E N N T T S S A A C C C C E E S S S S O O R R I I E E S S G G E E T T T T I I N N G G S S T T A A R R T T E E D D...
- Page 5 Manually Enable / Disable Rear Speaker ......................... 22 R R E E S S E E T T Y Y O O U U R R I I N N F F I I N N E E A A X X 2 2 3 3 Figure 14: Reset feature ............................
- Page 6 BOX CONTENTS The Infinea X will ship with the items listed in the table below. Standard battery shipped with Infinea X. Please see Accessories section below for extended battery options. Qty. Part Number Description Image *IX-I2DBTR-PH5-WH *IX-I2DBTR-PH5-BK Infinea X *IX-I2DBTR-POD5-BK *IX-I2DBTR-POD5-WH A5005-017 USB charging/sync cable...
- Page 7 ACCESSORIES The following additional accessories may be purchased for use with the Infinea X. Part Number Description IX-BP-EXT Extended battery pack (3800mAh), white IX-BP-EXT-BK Extended battery pack (3800mAh), black Infinea® X User Manual Page 5 of 32 UM-00001 Version: A...
- Page 8 GETTING STARTED The Infinea X allows you to scan barcodes into the iPod touch or iPhone 5. Before using your Infinea X, the battery should be fully charged. The following table will help you get your Infinea X ready for use. F F I I R R S S T T S S T T E E P P S S Step Purpose...
- Page 9 FEATURES Feature Description The Infinea X supports one-dimensional (1D) and two-dimensional (2D) barcode symbols, which can be read in any direction (omni-directional). 2D Barcode Scanner The effective reading distance of the barcode reader varies depending on the barcode size. The barcode scanner is capable of reading barcodes on an LCD screen.
- Page 10 ABOUT THE INFINEA® X The Infinea X allows mobile employees to convert their iPod touch or iPhone 5 into a powerful solution for warehousing, field services, and healthcare industries. The Infinea X includes a 1D/2D barcode scanner, Bluetooth and RFID. Figure 1: Dimensions Infinea®...
- Page 11 Front Speaker Torx Screw Torx Screw Protective Glass Torx Screw Torx Screw Notification LEDs IOS Home button Torx Screw Torx Screw Microphone Figure 2: Front View Infinea® X User Manual Page 9 of 32 UM-00001 Version: A...
- Page 12 Barcode Scanner iOS Camera Hole Rear Speaker RFID Battery Latch Battery Figure 3: Back View iOS On/Off Button Pads for charging station and sync Barcode Scanner Figure 4: Top View Figure 5: Bottom View Infinea® X User Manual Page 10 of 32 UM-00001 Version: A...
- Page 13 Volume Buttons Notification LEDs Battery Status Button atu t Figure 6: Left View Notification LEDs Mini USB Connector Front/Rear Speaker Toggle Scan Button Figure 7: Right View Infinea® X User Manual Page 11 of 32 UM-00001 Version: A...
- Page 14 ASSEMBLING THE INFINEA X I I P P H H O O N N E E A A N N D D I I P P O O D D I I N N S S T T A A L L L L A A T T I I O O N N 1.
- Page 15 INSTALLING THE INFINEA X BATTERY PACK S S T T A A N N D D A A R R D D A A N N D D E E X X T T E E N N D D E E D D B B A A T T T T E E R R Y Y I I N N S S T T A A L L L L A A T T I I O O N N The Infinea X is designed to support Standard and Extended external swappable battery packs.
- Page 16 CHARGING THE INFINEA X There are two options for charging the Infinea X: • By outlet • By user replaceable battery The Infinea X supports pass through charging to the iOS device. An iPod or iPhone and Infinea X combination may be charged with a USB to AC adapter or by station charger. Due to current requirements, the Infinea X and iPod or iPhone combination cannot be charged with a USB cable to a PC.
- Page 17 C C H H A A R R G G I I N N G G U U S S I I N N G G A A N N E E L L E E C C T T R R I I C C A A L L O O U U T T L L E E T T To prevent electrical damage to the Infinea X and/or battery, please use approved USB to Mini USB cables only 1.
- Page 18 Figure 8: Multi-bay battery charger WARNING This battery charger is intended for use in charging only Infinite Peripherals Infinea X standard and extended battery packs. Do not use this battery charger for any other battery types. D D I I S S P P O O S S A A L L Dispose of used batteries appropriately, according to federal law.
- Page 19 DEVELOPING APPLICATIONS Software is not provided with your Infinea X. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Infinea X into your iOS application requires the use of the Infinite Peripherals Universal SDK. The SDK incorporates an API specifically for developing applications to use the functionality of the Infinea X;...
- Page 20 POWERING ON THE INFINEA X D D U U A A L L P P U U R R P P O O S S E E S S C C A A N N B B U U T T T T O O N N The Infinea X uses a dual-purpose Scan/Power button to power on the Infinea X unit, as well to scan barcodes.
- Page 21 B B A A R R C C O O D D E E S S C C A A N N N N I I N N G G To scan a barcode: Turn on the Infinea X by pressing the scan button. 2.
- Page 22 A A U U D D I I O O If your iOS device is already assembled into the Infinea X device: To enable to front speaker on the Infinea X, momentarily press the lower right-side button. The blue LED will be off when the front speaker is enabled. (The rear speaker is now disabled.) 2.
- Page 23 STATUS AND OPERATIONAL MODES P P R R O O G G R R A A M M M M A A B B L L E E L L E E D D S S T T A A T T U U S S The Infinea X provides application developers with programmable, multi-color LEDs, as shown in the figure below.
- Page 24 R R E E A A R R S S P P E E A A K K E E R R / / M M I I C C R R O O P P H H O O N N E E S S T T A A T T U U S S The Infinea X provides application developers with a programmable feature to Enable/Disable the Infinea X rear speaker and microphone.
- Page 25 RESET YOUR INFINEA X The Infinea X uses the Battery Status indicator button and the Scan button to perform a soft- reset without removing the iOS device. The soft-reset feature cycles the power, allowing the Infinea X to restart. Figure 14: Reset feature To perform the reset function: Press the Scan button and Battery Status indicator buttons simultaneously for about 3 seconds.
- Page 26 SYNCING To sync an iPod/iPhone with iTunes through the Infinea X, connect the Infinea X to a computer using a mini USB cable, as shown in the figure below. Figure 15: Sync feature The Infinea X should be in Sync mode. Refer to the iTunes documentation for instruction on syncing your iPod and iPhone.
- Page 27 TROUBLESHOOTING If you are having problems not related to scanning barcodes or reading/writing RFID Tags/Cards, refer to the table below for possible causes. T T R R O O U U B B L L E E S S H H O O O O T T I I N N G G > > G G E E N N E E R R A A L L Problem Possible Cause •...
- Page 28 T T R R O O U U B B L L E E S S H H O O O O T T I I N N G G > > R R F F I I D D If you are having problems reading or writing RFID Tags/Cards, refer to the table below for possible causes.
- Page 29 CLEANING INSTRUCTIONS P P R R E E C C A A U U T T I I O O N N S S The Infinea X is certified to meet IP54 Ingress Protection Marking per IEC 60529. Per the IP54 rating, the Infinea X is protected against interference with normal operation of the Infinea X sled caused by dust and splashing liquids.
- Page 30 TECHNICAL DATA ECHANICAL C C o o m m p p a a t t i i b b i i l l i i t t y y iPod touch® 5 generation, iPhone® 5, iPhone® 5s 148mm (L) x 72mm (W) x 31mm (H) D D i i m m e e n n s s i i o o n n s s 5.83in.
- Page 31 • Codablock • Maxicode • • Aztec • GS1 composite codes • MIFARE MINI • MIFARE CLASSIC-1K • MIFARE CLASSIC-4K • MIFARE ULTRALIGHT R R F F I I D D R R e e a a d d e e r r •...
- Page 32 WARRANTY Infinite Peripherals (IPC) does not warrant, and is not responsible for, any damage to the Infinea X or the assembled iOS product as a result of liquid or solid particle intrusion into the Infinea X or damaged caused by dropping the Infinea X with the assembled iOS product. If a material or workmanship defect arises with regard to any IPC product, and a valid claim is received within the Warranty Period, IPC (at IPC’s sole discretion) will (1) repair the Infinea X product using new or refurbished parts or (2) replace the Infinea X product with a new or...
- Page 33 SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Infinea® X User Manual Page 31 of 32 UM-00001 Version: A...
- Page 34 FEDERAL COMMUNICATIONS COMMISSION F F E E D D E E R R A A L L C C O O M M M M U U N N I I C C A A T T I I O O N N S S C C O O M M M M I I S S S S I I O O N N ( ( F F C C C C ) ) S S T T A A T T E E M M E E N N T T 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
