Summary of Contents for Whirlpool ALA 101

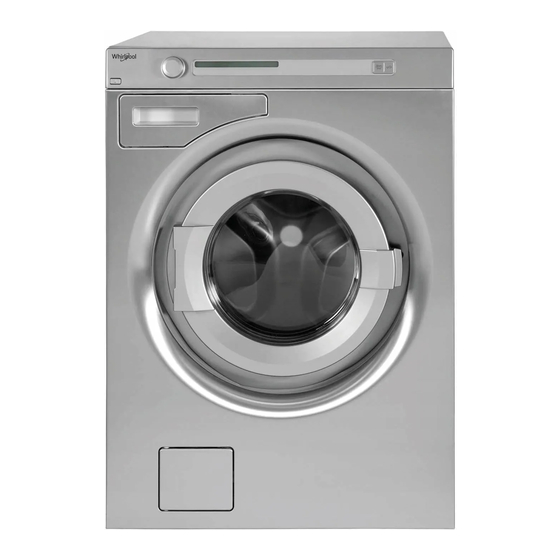

- Page 1 ALA 101 - ALA 103...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS TROUBLESHOOTING Child safety The washer door will not open Installation Opening the door in an emergency Overfl ow guard function The machine will not start Transport/winter storage After power failure Packing material Wet washing still in the machine Recycling Error messages ADVICE AND TIPS BEFORE WASHING... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS GENERAL CHILD SAFETY • Keep the operating instructions in a safe place. • Children must be watched to ensure they do not play with the machine. • The machine should only be used for washing items as described in these instructions. It is not intended for •... -
Page 4: Installation
SAFETY INSTRUCTIONS INSTALLATION • Conduct installation and connection in accordance with the separate installation instructions. • Installation of water and electricity, if required, must be carried out by a qualifi ed professional. • Remove any transport protection devices before using the machine, see the separate installation instructions. -
Page 5: Advice And Tips Before Washing
ADVICE AND TIPS BEFORE WASHING Here are some tips that may help you before washing. the sheen and strength of the linen. SORTING YOUR LAUNDRY WOOL Sort items according to: These fabrics are labelled for either machine wash or for hand wash. The machine’s Wool/hand wash, 30 °C •... -
Page 6: Using Your Washing Machine
USING YOUR WASHING MACHINE Start Programme selector Time remainin Stop Program Main power switch ADD DETERGENT AND FABRIC The quantity of detergent needed depends, amongst other things, on how hard the water is. See the detergent SOFTENER pack for details. Phone your local water company to check the water hardness in your area. -
Page 7: Programme Selection
USING YOUR WASHING MACHINE Rinse NOTE! This programme performs one cold rinse cycle + spin. Do not fi ll above the compartment’s maximum fi ll level. Suitable for laundry that just needs to be dampened. Otherwise fabric softener will run in too early, which impairs the washing eff... -
Page 8: Settings
SETTINGS HOW TO CHOOSE THE SETTINGS 1 Turn off the machine using the main power switch. 2 Press and hold the Stop button and then press the main power switch. Then press the Stop button 5 times within 10 seconds. 3 Select the setting you want to change by turning the programme selector. -
Page 9: Care And Cleaning
CARE AND CLEANING CLEANING THE TRAP AND THE CLEANING THE DETERGENT DRAINAGE PUMP COMPARTMENT The washing machine has a trap where smaller objects Pull out the detergent compartment using the release such as coins and hairpins can collect. To clean the trap button. -
Page 10: If You Have Hard Water
CARE AND CLEANING Do as follows: IF YOU HAVE HARD WATER If you live in an area with hard water (high limescale 1 Insert a screwdriver or the like into the hole on the content), a greyish-white coating may form on the washer agitator as illustrated and carefully pry to the left. -
Page 11: Troubleshooting
TROUBLESHOOTING THE WASHER DOOR WILL NOT OPEN THE MACHINE WILL NOT START • Check that the main power switch is on. • Is the washer door properly closed? Push it fi rmly. The press the Start button. • Has the power supply been cut off ? Check the house fuses (circuit breakers). -
Page 12: Error Messages
TROUBLESHOOTING Water inlet fault ERROR MESSAGES Check: If an error occurs during the programme a message is shown on the display. To exit the message after taking • that the tap on the water pipe is open. measures, turn the machine off and then back on. •... -
Page 13: Technical Information
TECHNICAL INFORMATION INFORMATION FOR TEST INSTITUTE Energy labelling European test standard: EN 60456 Standard cotton, 1200 rpm, 8 kg cotton Washing program: Connection: Cold water 15 °C Test method for noise measurement: IEC-60704-2-4 TECHNICAL DATA Height: 850 mm Width: 595 mm Depth: 700 mm Weight:... -
Page 14: Installation
INSTALLATION POSITIONING THE WASHING MACHINE CONNECTION TO WATER SUPPLY The washing machine can be installed as a built-in or Water connection should be carried out by an freestanding unit. Place the machine on a fi rm surface appropriately qualifi ed person. Connect the machine with easy access to the plug. -
Page 15: Drainage Connection
INSTALLATION DRAINAGE CONNECTION ELECTRICAL INSTALLATION The machine is supplied with a drainage hose attached, If the machine is delivered from the factory with a plug which must be connected to a drain. See the examples attached it can be connected to an earthed wall socket. below. -
Page 16: Before Contacting The Service
BEFORE CONTACTING THE SERVICE DIVISION BEFORE CONTACTING THE SERVICE DIVISION Before you contact the service division, make sure that you know the model designation (1), type designation (2) and serial number (3). The model designation can be found on the panel. The type designation and serial number can be found on the type plate on the inside of the washer door. -
Page 17: Programme Chart
PROGRAMME CHART Program Max. load Spin Speed Consumption values (kg) (rpm) Water Energy Programme time consumption consumption (approx. hrs and (approx. liter) (approx. kWh) min.) Standard cotton, 60 °C 1200 1.30 2:16 1200 Standard cotton, 40 °C 0.70 2:03 1200 Heavy wash, 90 °C 2.40 1:55... - Page 18 YOUR NOTES...
- Page 19 YOUR NOTES...
-
Page 20: Quick Guide
QUICK GUIDE SORT THE WASHING, OPEN THE WASHER DOOR AND LOAD THE WASHING Refasten zips. Look at the item’s laundry label. Sort the washing according to how soiled it is, colour and material. NB! Place underwired bras in a laundry net. TURN ON THE MAIN POWER SWITCH ADD DETERGENT AND FABRIC SOFTENER, AS REQUIRED...
