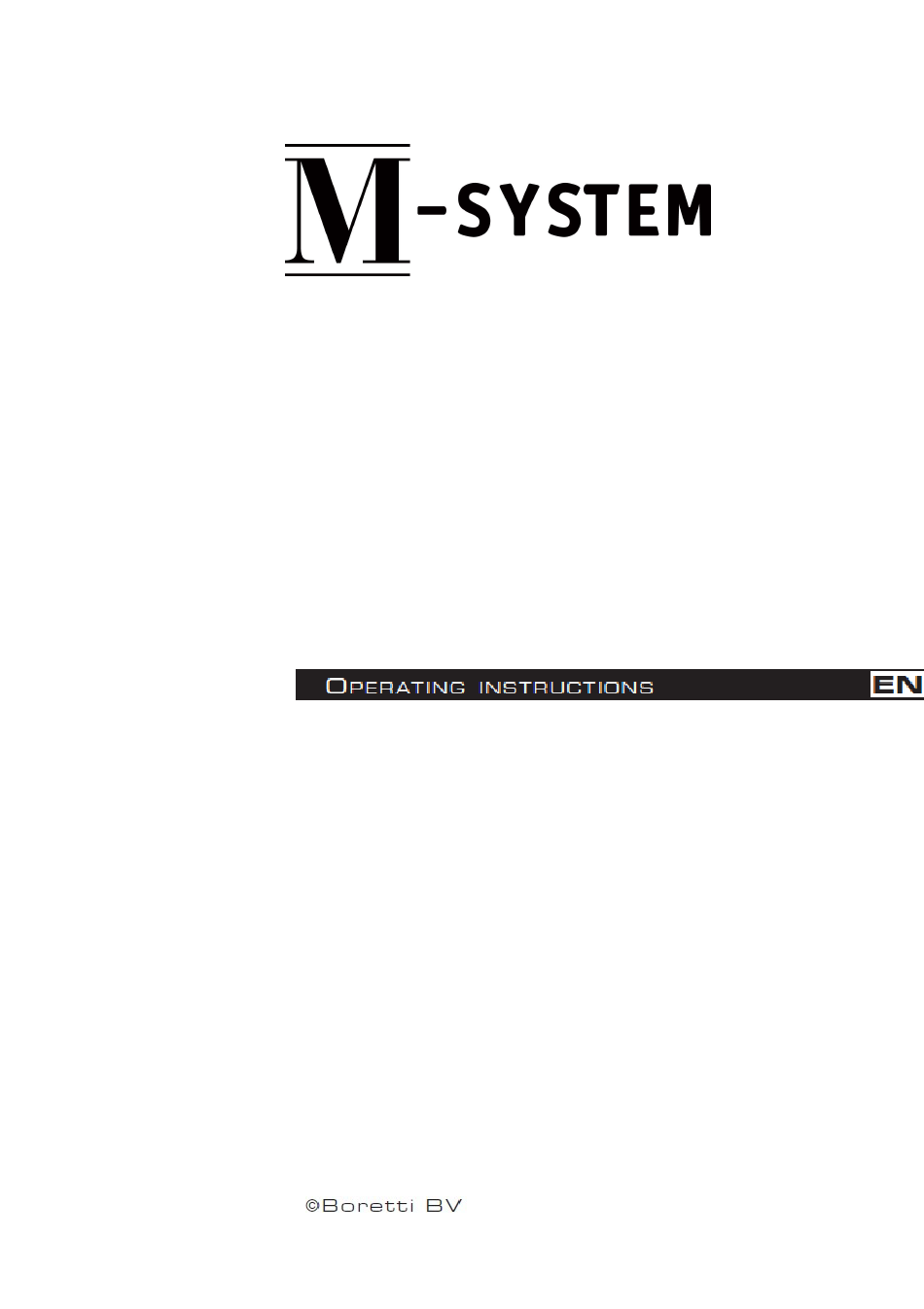

- Page 1 MVD-460 MVD-460 buildin dishwasher - 13...
-
Page 2: Table Of Contents
CONTENTS Getting familiar with your machine ………………………………………………………. Technical specifications ……………………………………………………………… • Conformity with the standards and Test data ………………………………………... • Safety information and Recommendations………………………........ Recycling ..………………………................• Safety information ………………………………………………………………………. • Recommendations …...…………………………………………………………………. • Items not suitable for dishwashing ……………………………………………………. •... - Page 3 Loading your dishwasher .…………………………………………………………………….. Dish rack …………………………………………………………………………………… • Alternative basket loads …………………………………………………......• Standard loading and Test data …………………………………………………………... • Programme descriptions .……………………………………………………………………... Programme items …………………………………………………………………………... • Switching on the machine and selecting a programme……………....... Switching on the machine………………………………………………………………….. • Programme follow-up………………………………………………………………………..
- Page 4 Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Filters Upper basket track latch Rating plate Drying Unit: This system provides better drying performance for your dishes.
-
Page 5: Getting Familiar With Your Machine
GETTING FAMILIAR WITH YOUR MACHINE In the stop condition while wash/dry led is On, Start/Pause led will blink. 1.) Power On/Off Button When the Power On/Off button is pressed, the lamp on the 4.) Programme selector knob Start/Pause button starts lighting. With the programme selector knob, you can select a suitable programme for your dishes. -
Page 6: Technical Specifications
Technical specifications Capacity ………………………… 12 place settings Height ………………….. ………. mm - 870 mm Width …………………………….. 596 mm Depth ……………………………. 570 mm Net Weight ……………………... 42 kg Electricity input ……………..220-240 V, 50 Hz Total Power …………………….. 2200 W Heating Power ………………….. 2000 W Pump Power ……………………. - Page 7 Before installing, be sure that the machine is unplugged. • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
-
Page 8: Recommendations
Prior to any repair work on the machine, be sure that the machine is cut off from the mains. • Switch off the fuse or unplug the machine. Do not pull by the cable when unplugging. Make sure to turn off the water tap. Recommendations For energy and water saving, remove coarse residues on your dishes before placing the dishes •... -
Page 9: Water Inlet Hose
Water connection Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. -
Page 10: Electrical Connection
Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur. -
Page 11: Preparing The Machine For Use
Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •... -
Page 12: Testing Strip
In order to understand whether or not the amount of softener salt in your machine is sufficient, check the transparent section on the salt compartment cap. There is sufficient salt if the transparent section is green. Salt has to be added if the transparent section is not green. Testing strip The washing effectiveness of your machine depends on the softness of the tap water. - Page 13 Adjusting salt consumption Adjust the water softener according to how hard your tap water is. Move the programme selector knob to the 0 (Reset) position while your machine is not in operation. After resetting your machine, press the Start/Pause button and keep it pressed down.
-
Page 14: Detergent Usage
Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children. -
Page 15: Filling With Rinse Aid And Making The Setting
They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •... -
Page 16: Loading Your Dishwasher
Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. -
Page 17: Alternative Basket Loads
Alternative basket loads Lower Basket Top basket Faulty loads... -
Page 18: Standard Loading And Test Data
Standard loading and test data Capacity: Upper and lower baskets: 12 place settings. The upper basket should be adjusted to high position Cups should be placed on the dish rack pins. Detergent / Rinse aid 5+25 cm , in accordance with EN50242-DIN 44990 IEC 436 (international norms) / Rinse aid dosage adjustment: 4 Programme test Eco 50°... -
Page 19: Programme Descriptions
PROGRAMME DESCRIPTIONS Programme tems Programme No Reference Programme Super 50 min. Intensive names and 40° C 50° C 65° C 65° C temperatures Type of food co ee, m lk, tea, co ee, m lk, tea, soups, sauces, soups, sauces, waste cold meats, cold meats,... -
Page 20: Switching On The Machine And Selecting A Programme
SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine Press the Power On/Off key. Select the program suiting your dishes via the Program Selection button. Once the Power On/Off key Start the program pressing is pressed, the lamp Power the Power Start/Pause key. -
Page 21: Changing A Programme With Resetting
Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Turn the Program Press once the Power Selection Button to Reset Start/Pause key. The program will have been cancelled once the drying lamp goes off and the lampFinshed is Press once the Power The machine will discharge the... -
Page 22: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 23: Spray Arms
Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. -
Page 24: Failure Codes And What To Do In Case Of Failure
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR CONTROL DESCRIPTION Wash / Dry Start/Pause • Make sure the water input tap is totally open and that Inadequate water there is no water cut. supply • Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose. - Page 25 If water is left inside the machine at the end of the programme The water drain hose is clogged or twisted. • The filters are clogged. • The programme is not finished yet. • If the machine stops during a wash operation Power failure.
-
Page 26: Practical And Useful Information
PRACTICAL AND USEFUL INFORMATION Whenever you will not be operating your machine Unplug the machine and then turn the water off. • Leave the door slightly ajar in order to prevent the formation of unpleasant smells. • Keep the machine interior clean. •... - Page 27 52117261 -1...
