Rowlinson Arley SS191H Quick Start Manual

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then follow
the easy step by step guide. The instruction
sheet is only a guide to the assembly. Certain
items may not be shown to scale.
•
Check all components prior to assembly.
•
This product should be assembled by no less
than two people.
•
Some of the components may have sharp edges
wear protective work gloves while
handling components.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
Recommended tools for assembly
•
Cordless drill/screwdriver
•
2mm diameter drill bit
•
12mm diameter drill bit
•
Hammer
•
Sharp knife
•
Hacksaw
•
Spirit level
•
Silicon sealant
•
Step ladder

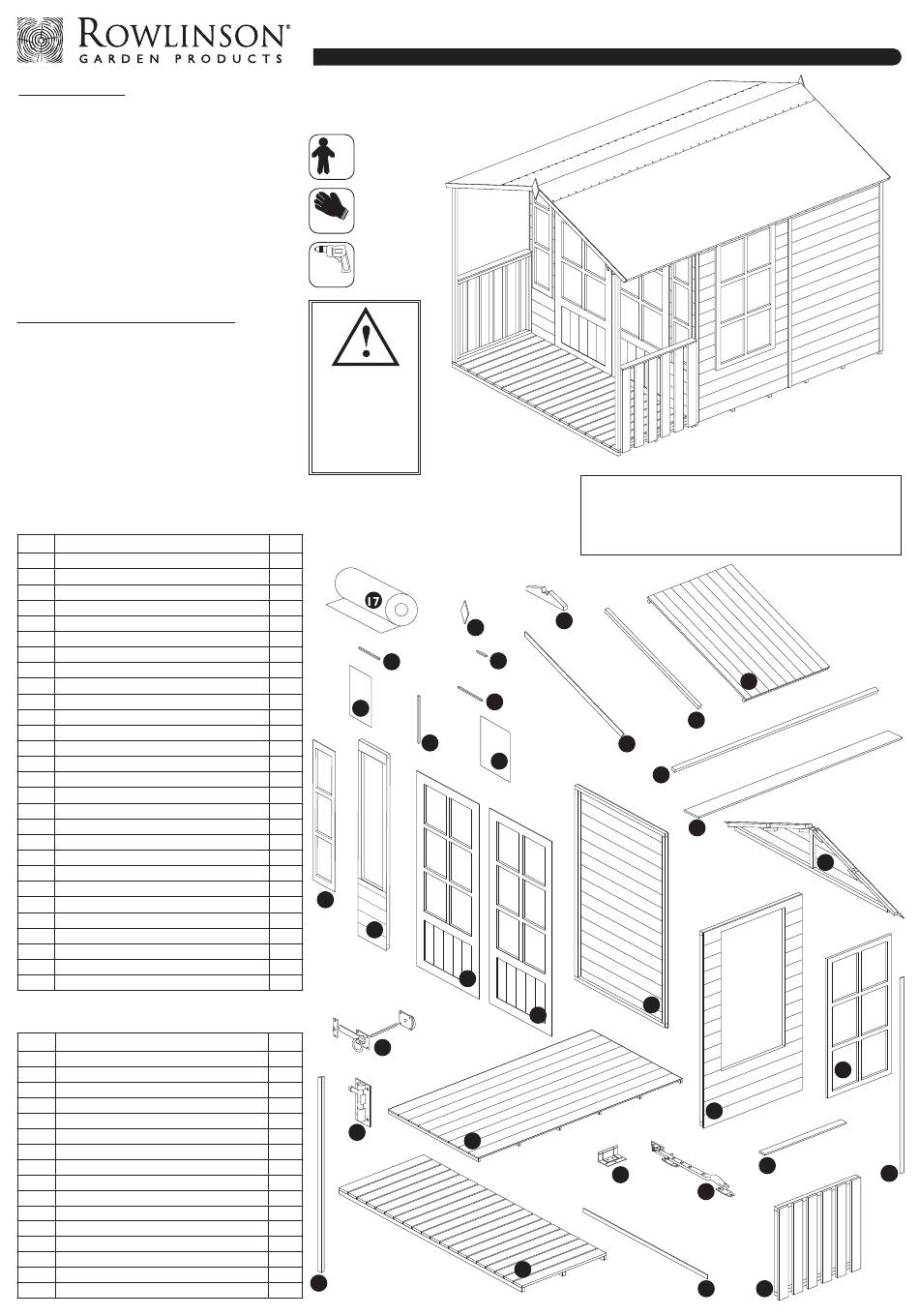

No. Components
1 Floor sections
2 Plain wall panels
3 Window side panel
4 Front panel
5 Front window frame
6 Left door
7 Right door
8 Apex panels
9 Roof panel
10 Front/rear roof rafters
(35 x 29 x 1070mm)
11 Roof purlins
(36 x 29 x 2050mm)
12 Coverstrip
(48 x 12 x 1690mm)
13 Kick strip
(38 x 12 x 1360mm)
14 Side window frame
15 Glazing
(370 x 264mm)
16 Glazing
(190 x 370mm)
17 Roof felt roll
(10m)
18 Bargeboards
(48 x 12 x 1150mm)
19 Apex cover
(110 x 12 x 1990mm)
20 Veranda floor
21 Veranda fence
22 Veranda fence hand rail
23 Veranda roof support uprights
24 Verandah roof gusset
25 Window beading
(15 x 15 x 345mm)
26 Window beading
(15 x 15 x 270mm)
27 Window beading
(15 x 15 x 195mm)
28 Finial
No. Fixing Kit
29 Door frame beading
(10 x 10 x 100mm)
30 Latch door handle kit
31 Hinges
32 Window stay
33 Tower bolts
34 70mm screws
35 63mm screws
36 50mm screws
37 35mm screws
38 25mm screws
39 25mm black screws
40 20mm screws
41 19mm black round head screws
42 40mm nails
43 25mm panel pins
44 10mm felt nails
Arley Summerhouse
Assembly Instructions
x 2
Gloves
Drill
Caution
This product
contains glass.
Wear protective
work gloves while
handling these
components.
Qty.
2
4
2
2
2
1
1
27
2
6
4
16
4
7
25
1
2
24
6
1
4
1
1
2
2
5
2
1
4
60
48
12
2
Qty.
30
1
1
10
2
2
33
2
8
63
58
42
12
8
18
41
300
23
152
Dimensions:
Overall external:
Height = 2220mm
Width = 2130mm
Depth = 3050mm
24
28
29
26
18
15
6
7
1
31
20
English SS191H
Footprint: Min. base area:
Width = 1980mm Width = 2080mm
Depth = 2905mm Depth = 3005mm
9
10
11
19
2
3
22
32
13 21
8
14
12
