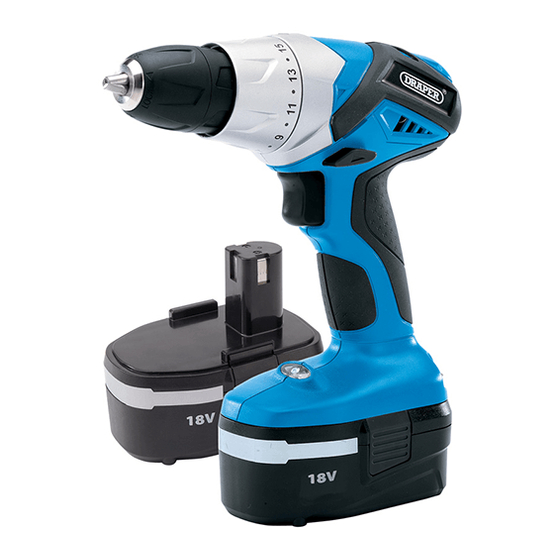

18v cordless rotary drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR
18V Cordless
Rotary Drill
Stock No.83577
Part No.CD182V2B
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD182V2B and is the answer not in the manual?

Questions and answers

Related Manuals for Draper CD182V2B

Summary of Contents for Draper CD182V2B

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    Applications such as screwing and some light duty polishing or sanding can be achieved with the correct accessories. 4.2 SPECIFICATION Stock No..........................83577 Part No......................... CD182V2B Battery: Type ........................Ni-MH Rated Voltage ......................18V Rating ........................

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS Do not overreach. Keep proper footing and balance at all times. This enables better control of General Power Tools Safety Warnings the power tool in unexpected situations. Dress properly. Do not wear loose clothing or WARNING: Read all instructions.

  • Page 7: General Instructions For Battery Powered Tools & Chargers

    HEALTH & SAFETY INFORMATION 5.2 GENERAL INSTRUCTIONS FOR Check that cutting tools are undamaged and are kept clean and sharp, this will maintain their operating BATTERY POWERED TOOLS & performance and lessen the loading on the tool. If possible, always use clamps or a vice to hold your work. CHARGERS Do not put pressure on the drill, such that it slows the motor down.

  • Page 8: Instructions For Drills, Chargers And Batteries

    Do not use battery if it has been stored at 5°C or The battery charger is only suitable for charging less. Allow it to “normalise” at room temperature rechargeable Draper 18V Ni-MH batteries. before usage/changing. Any other application is considered misuse.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Variable speed trigger switch Screwdriver bit storage Forward/Reverse selector 18V 1.3Ah Ni-MH battery pack 10mm Keyless chuck LED worklight Torque selection collar...

  • Page 10: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the cordless drill.

  • Page 11: Basic Cordless Rotary Drill Operations

    BASIC CORDLESS ROTARY DRILL OPERATIONS 8.1 BATTERY CHARGING - FIGS. 1 - 2 FIG.1 To charge the battery pack , it must first be removed from the drill. To release the battery pack, squeeze the grips located on either side of the battery casing and gently pull the battery pack from the housing (Fig.1).

  • Page 12: Led Worklight

    BASIC CORDLESS ROTARY DRILL OPERATIONS 8.4 LED WORKLIGHT - FIG. 4 FIG.4 To aid drilling a screwdriving in confined, inadequately lit spaces, the LED worklight automatically illuminates when the trigger is activated. 8.5 FORWARD/REVERSE SELECTOR - FIG. 5 The switch determines the direction of rotation of the chuck, i.e.

  • Page 13: Holding The Drill

    BASIC CORDLESS ROTARY DRILL OPERATIONS 8.8 HOLDING THE DRILL - FIGS. 7 - 8 The drill casing is designed to be held comfortably in two ways, 1. By the handle. 2. Or by the in-line support grip. 8.9 DRILLING WOOD AND PLASTIC To prevent splitting around the drill holes on the reverse side, place a piece of scrap timber under the material to be drilled.

  • Page 14: Maintenance

    MAINTENANCE 9.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. After use disconnect the tool from the power supply and vacuum the ventilation slots.

  • Page 15: Optional Accessories

    10. OPTIONAL ACCESSORIES 10.1 BATTERIES Stock No. Part No. Voltage 83682 CB184A 18V(1.3Ah) Ni-MH 10.2 CHARGER Stock No. Part No. Voltage 24123 C184 18V 3-5hr charger...

  • Page 16: Troubleshooting

    11. TROUBLESHOOTING WARNING: For your own safety always turn the main switch on the machine "off" and remove the plug from the power supply before carrying out any maintenance or trouble shooting. Problem Cause Remedy 1. Flat battery. Drill does not 1.

  • Page 17: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Class II construction (Double insulated). WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use only. Do not expose to rain. Battery must be recycled or disposed of properly. Ni-MH 130°C Non-Self-Resetting protective device.

  • Page 18: Disposal

    13. DISPOSAL 13.1 DISPOSAL At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 19 NOTES...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST DKMC1115...
