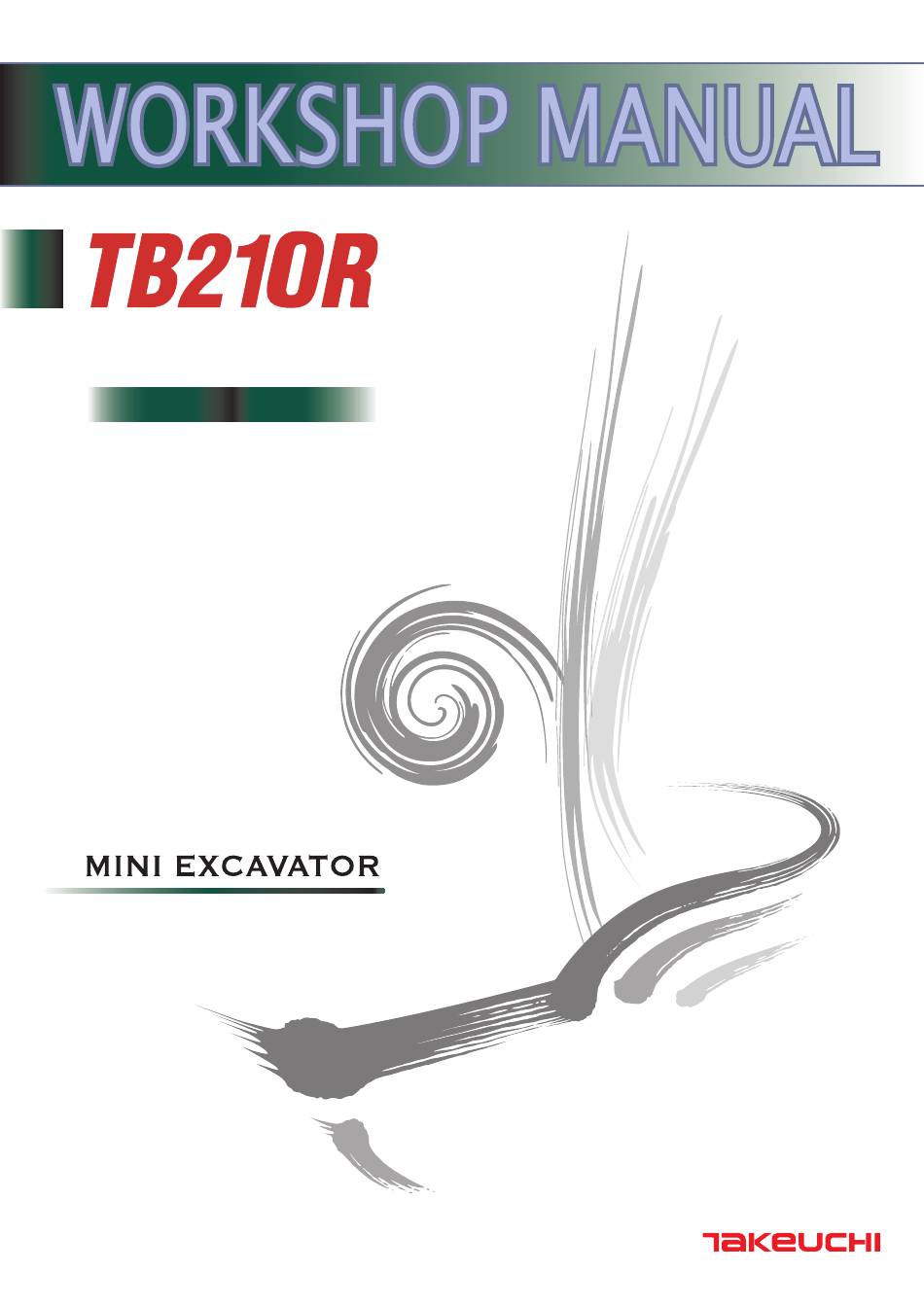

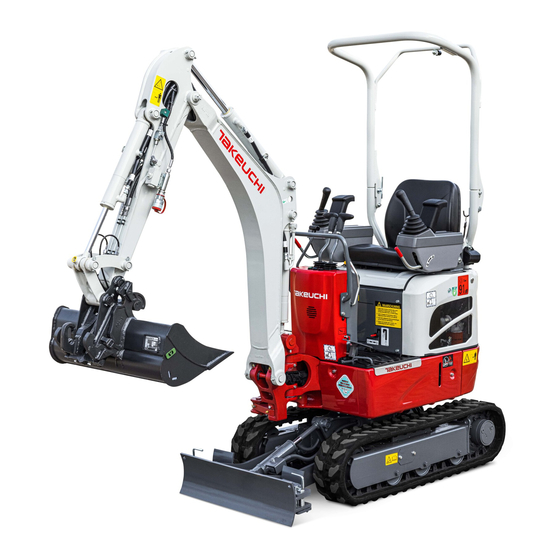

- Page 1 Serial No.210000003~ Book No. CB8E000 WETB210R_A-XA...
- Page 2 FOREWORD This manual, which is written for engineers who service the machine, describes procedures for disassembly and as- sembly, inspection and maintenance, and troubleshooting, as well as maintenance reference values and an outline of the specifications. Refer to this manual during daily work to improve your services. Note that the information is subject to change without notice due to design modifications made to the machine from time to time by the manufacturer.
- Page 3 SAFETY...
-
Page 4: Safety Alert Symbol
SAFETY SAFETY ALERT SYMBOL SAFETY ALERT SYMBOL This symbol represents the safety alert. The message that follows the symbol contains important information regard- ing human safety. Read and understand the message to avoid personal injury or death. Safety label Safety labels are used to alert operators or other people exposed to the risks of injury or damage. -
Page 5: Safety Precautions
SAFETY SAFETY PRECAUTIONS SAFETY PRECAUTIONS Install an extinguisher and a first aid kit Observe all safety rules • Operation, inspection and maintenance of this ma- chine must be performed only by a trained and quali- fied person. • All rules, regulations, precautions and safety proce- dures must be understood and followed when per- forming operation, inspection and maintenance of this machine. - Page 6 SAFETY SAFETY PRECAUTIONS Regularly replace the safety-critical parts When the canopy is tilted up • Regularly replace fuel hoses to prevent a fire hazard. • If the canopy is raised or lowered while the engine is Hoses wear out over time, even if they do not show any moving, the machine may accidentally start moving, symptom of wear.
- Page 7 SAFETY SAFETY PRECAUTIONS Keep clear of the moving fan and belt When working on the machine 1BAA07Z 1BAA09Z • Any object that can be easily caught in moving parts • To prevent slipping/falling from machine, clear the must be kept away. footing and observe the following: •...
- Page 8 SAFETY SAFETY PRECAUTIONS Caution when filling with fuel or oil Be careful with hot and pressurized components 1BAA11Z 1BAA12Z • Keep away from heat, sparks and flame while filling Before performing inspection and maintenance, stop the with fuel or oil. engine and allow the machine to cool down.
- Page 9 SAFETY SAFETY PRECAUTIONS Be careful with oils under pressure Be careful with grease under pressure 1BAA14Z 1BAA15Z Pressure is maintained in the hydraulic circuit long after In the track adjuster, the grease has been injected under the engine has been shut down. high pressure.
- Page 10 SAFETY SAFETY PRECAUTIONS Use caution when handling batteries Have a service agent repair welding cracks or other damage Ask a service agent to make any repairs that require welding. If the agent is unavailable, make sure the weld- ing is done by a qualified person in a properly equipped workplace.
- Page 11 SAFETY CAUTIONS WHEN WORKING CAUTIONS WHEN WORKING When removing/installing the hydraulic unit • Make sure that the temperature of the hydraulic oil has When disassembling or assembling dropped and is cool enough to work with. • To prevent the hydraulic oil from escaping under pres- •...
- Page 12 SAFETY CAUTIONS WHEN WORKING When connecting/disconnecting the hoses or Handling of seals pipes • Clean the grooves for O-rings and remove any burrs. • When hydraulic hoses or pipes are connected, tighten them once to the prescribed torque, then loosen them slightly and retighten them to the prescribed torque.
-
Page 13: Service Data
SERVICE DATA... -
Page 14: Dimensional Drawing
SERVICE DATA DIMENSIONAL DRAWING DIMENSIONAL DRAWING Machine dimensions 2A0BL01 DIMENSIONAL DRAWING 2A0BL00... - Page 15 SERVICE DATA DIMENSIONAL DRAWING Unit: mm (in.) Rubber crawler 2955 (116.3) 750 (29.5) 2190 (86.2) 610 (24.0) 395 (15.6) 1005 (39.6) 1325 (52.2) 750 (29.5) 1020 (40.2) 180 (7.1) 160 (6.3) 1320 (52.0) 980 (38.6) 505 (19.9) 510 (20.1) 750 (29.5) 1020 (40.2) 200 (7.9) 2245 (88.5)
- Page 16 SERVICE DATA DIMENSIONAL DRAWING Operating range DIMENSIONAL DRAWING 2A0BL00...
- Page 17 SERVICE DATA DIMENSIONAL DRAWING Unit: mm (in.) Rubber crawler 3285 (129.3) 3220 (126.8) 1755 (69.1) 1475 (58.1) 2265 (89.2) 2985 (117.5) 2120 (83.5) 625 (24.6) 250 (9.8) 175 (6.9) DIMENSIONAL DRAWING 2A0BL00...
-
Page 18: Specification Tables
SERVICE DATA SPECIFICATION TABLES SPECIFICATION TABLES Canopy kg (lb) 1150 (2535) Rubber crawler kg (lb) – Operating mass Canopy kg (lb) – Steel crawler kg (lb) – Net (ISO 14396) kW/min (hp/rpm) 8.8 (11.8) /2200 (2200) Rated output Net (ISO 9249/SAEJ 1349) kW/min (hp/rpm) 8.7 (11.7) /2200 (2200) Heaped capacity... - Page 19 SERVICE DATA SPECIFICATION TABLES Canopy mm (in.) – Rubber crawler mm (in.) – Overall height of base ma- chine Canopy mm (in.) – Steel crawler mm (in.) – Swing radius mm (in.) 610 (24.0) Upper structure rearmost distance from axis of rotation mm (in.) 610 (24.0) Rubber crawler...
