Summary of Contents for BeiJer iX T7AM

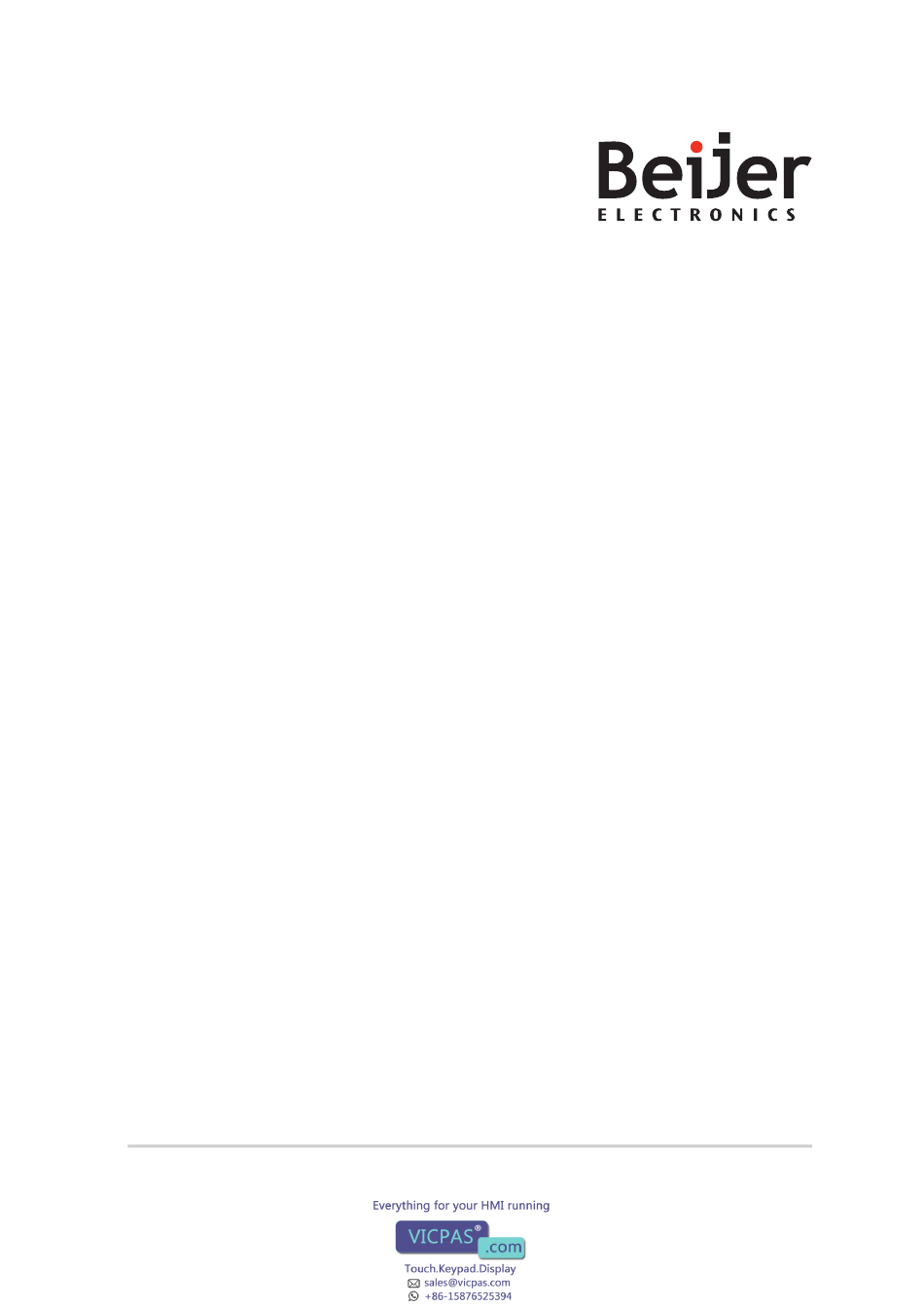

- Page 1 T7AM Installation Manual English MAEN118A, 2013-06...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, including all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Autotex ............15 5 Operator Panel Drawings ..........16 Connectors ............16 Communication Ports ........... 16 iX T7AM Outline ..........17 6 Additional Installation Tips ..........18 Grounding the Operator Panel ......... 18 Ethernet Connection in the Operator Panel ....19 To Achieve Better EMC Protection ...... -
Page 4: Safety Precautions
Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. For use on a flat surface of a type 4X enclosure indoor use only. • Use 75 degree conductors only • Use copper conductors only • Beijer Electronics, MAEN118A... -
Page 5: General
• where the following conditions are fulfilled: no high explosive risks – no strong magnetic fields – no direct sunlight – no large, sudden temperature changes – Install the product according to the accompanying installation instructions. • Beijer Electronics, MAEN118A... -
Page 6: During Use
Replacing the battery incorrectly may result in explosion. Only use batteries • recommended by the supplier. During the warranty period, the battery needs to be replaced by an authorized Beijer Electronics service center. Dismantling and Scrapping The operator panel or parts thereof shall be recycled according to local •... -
Page 7: Installation
Maximum installation plate thickness: 11 mm • Space requirements in millimeters when installing the operator panel: • 100 mm 143 mm 50 mm 50 mm 100 mm 100 mm 204 mm Note: The dimensions on the drawing are not proportional. Beijer Electronics, MAEN118A... -
Page 8: Installation Process
A separate cut out drawing is available for download from the Beijer Electronics web site. 3. Secure the operator panel in position using all the fastening holes and the provided brackets and screws: 0.5 - 1.0 Nm... -
Page 9: Connections To The Controller
Connections to the Controller 2.2.1 For information about the cables to be used when connecting the operator panel to the controller, please refer to the help file for the driver in question. Beijer Electronics, MAEN118A... -
Page 10: Other Connections And Peripherals
Installation 2.2.2 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN118A... -
Page 11: Technical Data
Technical Data Technical Data Parameter iX T7AM Front panel, W × H × D 204 × 143 × 7 mm Cut out dimensions, 187 × 126 mm W × H Mounting depth 43 mm (143 mm including clearance) Standalone mounting VESA 75 ×... - Page 12 Technical Data Parameter iX T7AM Operating -10 °C to +60 °C temperature Storage temperature -20 °C to +70 °C Relative humidity <85% non-condensed Approvals and Information is available on the web site certifications www.beijerelectronics.com See section Chemical Resistance for more information.
-
Page 13: Chemical Resistance
The powder paint shows little or no resistance to the following chemicals at room temperature: Acetic acid, conc. Methyl-ethyl ketone Toluene Acetone Nitric acid 30% Trichlorethylene Ammonia 5% Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octane unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octane leaded petrol Beijer Electronics, MAEN118A... -
Page 14: Touch Screen And Overlay
Autoflex EBA 180L withstands DIN 42 115 Part 2 exposure of up to 1 hour duration to glacial acetic acid without visible change. Autoflex EBA 180L is not resistant to high pressure steam at over 100 °C or the following chemicals: Concentrated mineral acids Benzyl alcohol Concentrated caustic solution Methylene chloride Beijer Electronics, MAEN118A... -
Page 15: Touch Screen Surface
4.2.3 Autotex It is recommended to use the Autoflex EB touch display protection film, that can be ordered from Beijer Electronics. Outdoor Use In common with all polyester based films, Autoflex EB is not suitable for use in conditions of long-term exposure to direct sunlight. -
Page 16: Operator Panel Drawings
RS422 Rx- Note: In order to utilize two communication ports on the same physical port, the Y-split cable CAB109 must be used. Drawing for external cable CAB109 (drawing # Z7100-029E) is available on the web site: www.beijerelectronics.com Beijer Electronics, MAEN118A... -
Page 17: T7Am Outline
Operator Panel Drawings iX T7AM Outline max. 11 mm SD memory USB host card slot Note: A Step CAD file is available on the web site www.beijerelectronics.com Beijer Electronics, MAEN118A... -
Page 18: Additional Installation Tips
2 turns around the ferrite core provide 4 times the suppression of 1 turn. 3 turns around the ferrite core provide 9 times the suppression of 1 turn. A ferrite core suppresses disturbances to the 24 V feed, see 6 in drawing above. Beijer Electronics, MAEN118A... -
Page 19: Ethernet Connection In The Operator Panel
1. Check whether the other Ethernet unit has its shield directly grounded or grounded via a capacitor. Note: In many cases, connecting the shielded Ethernet cabling to the chassis at both ends is inappropriate. Hum or grounding loops can occur. Unshielded cabling may even result in fewer communication errors. Beijer Electronics, MAEN118A... - Page 20 A more elegant method is to expand the shielded Ethernet cabling with a piece of unshielded Ethernet cable, see 4 in drawing above. The shield can be grounded via an external 0.1 μF/250 V plastic capacitor, see 5 in drawing above. This will connect the HF transients to ground. Beijer Electronics, MAEN118A...
-
Page 21: To Achieve Better Emc Protection
Additional Installation Tips To Achieve Better EMC Protection Initially, use the original cabling from Beijer Electronics primarily. • Use shielded cables for RS232 communication. • Use twisted pair and shielded cabling for RS422 and RS485. • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, •... -
Page 22: Ambient Temperature
If the fan is mounted at the top and sucks warm air upwards, the fan’s ambient temperature will be higher, resulting in a shorter lifespan. The operator panel’s loss effect = supply voltage x current. Virtually no power goes to external users and no loss effects due to inputs. Beijer Electronics, MAEN118A... -
Page 23: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This • is not unusual since there is high static electricity. Beijer Electronics, MAEN118A... -
Page 24: Galvanic Isolation
24 V feed, disturbances and grounding currents from the 0 V on the 24 V side will disrupt communication. Using this type of unit solves one problem but creates a larger problem! A substandard installation may work now, but problems may arise when other devices are connected. Beijer Electronics, MAEN118A... -
Page 25: Cable And Bus Termination Rs485
Depending on the recipients’ design, the bus wires may be on the same level or require pull-up or pull-down to ensure that no faulty signals are detected when the bus is in resting mode (all transmitters are disconnected). Beijer Electronics, MAEN118A...
