Page 1: Installation Manual
T10A Installation Manual English MAEN017F, 2013-09... - Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, including all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Autoflex EBA 180L ..........16 5 Operator Panel Drawings ..........17 Connectors ............17 Communication Ports ........... 17 iX T10A Outline ..........19 6 Additional Installation Tips ..........20 Grounding the Operator Panel ......... 20 Ethernet Connection in the Operator Panel ....21 To Achieve Better EMC Protection ...... -
Page 4: Safety Precautions
UL and cUL Installation Caution: This section is only valid for UL labeled iX T10A panels. This equipment is suitable for use in Class 2 non-hazardous locations only. • [Combinations of equipment in your system are subject to investigation by the local authority having jurisdiction at the time of installation]. - Page 5 X1/X100 Anytek connectors AWG 24–12 These devices are Class 2 supplied programmable controllers (industrial PCs) • for the use in industrial control equipment and are intended to be (front) panel mounted (Type 1 and 4x for indoor use only). Beijer Electronics, MAEN017F...
-
Page 6: During Installation
Replacing the battery incorrectly may result in explosion. Only use batteries • recommended by the supplier. During the warranty period, the battery needs to be replaced by an authorized Beijer Electronics service center. Dismantling and Scrapping The operator panel or parts thereof shall be recycled according to local •... -
Page 7: Appearance Of Air In Touch Screen
The layer structure of the touch screen contains air and in rare cases • appearance of bubbles can arise. This is purely cosmetic and does not affect any functionality of the panel. The appearance can occur under certain environmental conditions such as temperature, humidity, and atmospheric pressure. Beijer Electronics, MAEN017F... -
Page 8: Installation
Installation Installation Space Requirements Maximum installation plate thickness: 8 mm • Space requirements in millimeters when installing the operator panel: • Note: The dimensions on the drawing are not proportional. Beijer Electronics, MAEN017F... -
Page 9: Installation Process
A separate cut out drawing is available for download from the Beijer Electronics web site. 3. Secure the operator panel in position using all the fastening holes and the provided brackets and screws: 0.5 - 1.0 Nm... - Page 10 Note: Only for iX T10A panels with part number 630000301: When connecting the operator panel to the power outlet for the first time, make sure not to interrupt power for a minimum of 48 hours in order to charge the battery completely.
-
Page 11: Connections To The Controller
file for the driver in question. 2.2.2 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN017F... -
Page 12: Technical Data
Technical Data Technical Data Parameter iX T10A Front panel, W × H × D 280 × 228 × 7 mm Cut out dimensions, 262 × 209 mm W × H Mounting depth 44 mm (144 mm including clearance) Standalone mounting VESA 75 ×... - Page 13 Approvals and Information is available on the web site certifications www.beijerelectronics.com See section Chemical Resistance for more information. iX T10A panels with part number 630000301 use a rechargeable battery. All other versions use a BR 2032 battery. Beijer Electronics, MAEN017F...
-
Page 14: Chemical Resistance
The powder paint shows little or no resistance to the following chemicals at room temperature: Acetic acid, conc. Methyl-ethyl ketone Toluene Acetone Nitric acid 30% Trichlorethylene Ammonia 5% Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octane unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octane leaded petrol Beijer Electronics, MAEN017F... -
Page 15: Touch Screen And Overlay
Autoflex EBA 180L withstands DIN 42 115 Part 2 exposure of up to 1 hour duration to glacial acetic acid without visible change. Autoflex EBA 180L is not resistant to high pressure steam at over 100 °C or the following chemicals: Concentrated mineral acids Benzyl alcohol Concentrated caustic solution Methylene chloride Beijer Electronics, MAEN017F... -
Page 16: Touch Screen Surface
4.2.3 Autoflex EBA 180L It is recommended to use the Autoflex EBA 180Ltouch display protection film, that can be ordered from Beijer Electronics. Solvent Resistance Autoflex EBA 180L withstands exposure to the same chemicals as Autotex F157 or F207 according to section Autoflex EBA... -
Page 17: Operator Panel Drawings
RS422 Rx- Note: In order to utilize two communication ports on the same physical port, the Y-split cable CAB109 must be used. Drawing for external cable CAB109 (drawing # Z7100-029E) is available on the web site: www.beijerelectronics.com Beijer Electronics, MAEN017F... - Page 18 Operator Panel Drawings Note: Only iX T10A panels with part number 630000301 are equipped with terminated COM-ports. Beijer Electronics, MAEN017F...
-

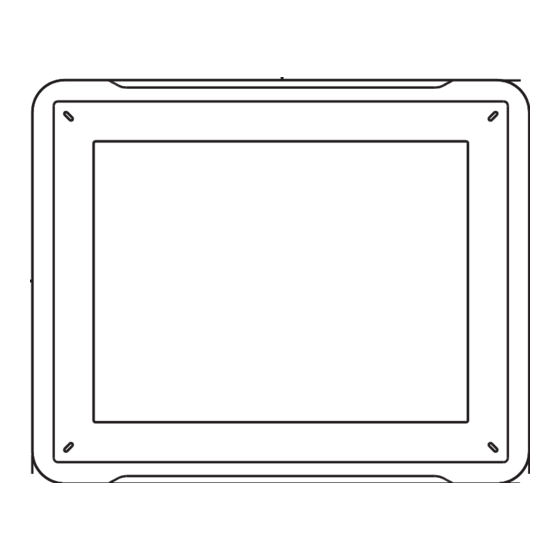

Page 19: T10A Outline
Operator Panel Drawings iX T10A Outline max. 8 mm SD memory USB host card slot Note: A Step CAD file is available on the web site www.beijerelectronics.com Beijer Electronics, MAEN017F... -
Page 20: Additional Installation Tips
2 turns around the ferrite core provide 4 times the suppression of 1 turn. 3 turns around the ferrite core provide 9 times the suppression of 1 turn. A ferrite core suppresses disturbances to the 24 V feed, see 6 in drawing above. Beijer Electronics, MAEN017F... -
Page 21: Ethernet Connection In The Operator Panel
1. Check whether the other Ethernet unit has its shield directly grounded or grounded via a capacitor. Note: In many cases, connecting the shielded Ethernet cabling to the chassis at both ends is inappropriate. Hum or grounding loops can occur. Unshielded cabling may even result in fewer communication errors. Beijer Electronics, MAEN017F... - Page 22 A more elegant method is to expand the shielded Ethernet cabling with a piece of unshielded Ethernet cable, see 4 in drawing above. The shield can be grounded via an external 0.1 μF/250 V plastic capacitor, see 5 in drawing above. This will connect the HF transients to ground. Beijer Electronics, MAEN017F...
-
Page 23: To Achieve Better Emc Protection
Additional Installation Tips To Achieve Better EMC Protection Initially, use the original cabling from Beijer Electronics primarily. • Use shielded cables for RS232 communication. • Use twisted pair and shielded cabling for RS422 and RS485. • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, •... -
Page 24: Ambient Temperature
If the fan is mounted at the top and sucks warm air upwards, the fan’s ambient temperature will be higher, resulting in a shorter lifespan. The operator panel’s loss effect = supply voltage x current. Virtually no power goes to external users and no loss effects due to inputs. Beijer Electronics, MAEN017F... -
Page 25: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This • is not unusual since there is high static electricity. Beijer Electronics, MAEN017F... -
Page 26: Galvanic Isolation
24 V feed, disturbances and grounding currents from the 0 V on the 24 V side will disrupt communication. Using this type of unit solves one problem but creates a larger problem! A substandard installation may work now, but problems may arise when other devices are connected. Beijer Electronics, MAEN017F... -
Page 27: Cable And Bus Termination Rs485
Depending on the recipients’ design, the bus wires may be on the same level or require pull-up or pull-down to ensure that no faulty signals are detected when the bus is in resting mode (all transmitters are disconnected). Beijer Electronics, MAEN017F... - Page 28 Head office Beijer Electronics AB Box 426 201 24 Malmö, Sweden www.beijerelectronics.com / +46 40 358600...
