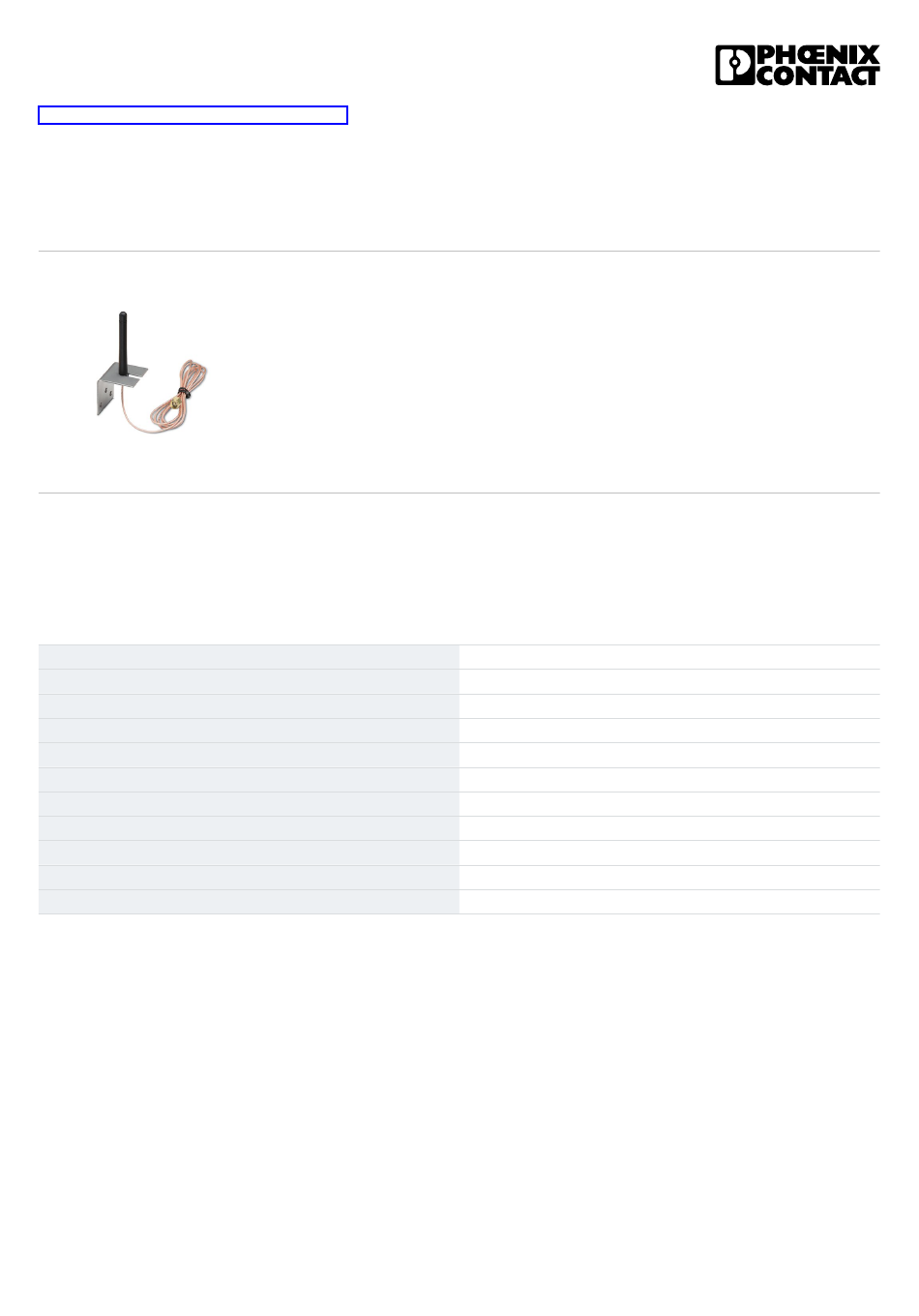

Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA
2701362
https://www.phoenixcontact.com/gb/products/2701362
Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user
documentation. Our General Terms of Use for Downloads are valid.
Your advantages
•
Ideally suited for freely mobile or stationary 2.4 GHz applications
•
Including 1.5 m connecting cable
Commercial Data
Item number
Packing unit
Minimum order quantity
Sales Key
Product Key
Catalog Page
GTIN
Weight per Piece (including packing)
Weight per Piece (excluding packing)
Customs tariff number
Country of origin
Omnidirectional antenna for wall mounting, frequency band: 2.4 GHz, gain: 2 dBi, degree of
protection: IP65, connection: RSMA (male), incl. 1.5 m connecting cable, mounting bracket, and
mounting material
2701362
1 pc
1 pc
DNN2Z1
DNN2Z1
Page 388 (C-6-2019)
4046356743471
91 g
70 g
85177100
TW
Jan 26, 2023, 3:52 PM
Page 1 (14)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Contact RAD-ISM-2400-ANT-OMNI-2-1-RSMA
Summary of Contents for Phoenix Contact RAD-ISM-2400-ANT-OMNI-2-1-RSMA
- Page 1 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user documentation. Our General Terms of Use for Downloads are valid.
-
Page 2: Technical Data
Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Technical Data Product properties Product type Antenna Radiation characteristics Omnidirectional Gain 2 dBi Vertical beamwidth 75 ° Horizontal beamwidth 360 ° Polarization Linear vertical Electrical properties Frequency band 2.4 GHz Frequency range 2.4 GHz ... 2.5 GHz Impedance 50 Ω... - Page 3 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Mounting type Wall mounting Assembly instructions Outdoors and indoors Jan 26, 2023, 3:52 PM Page 3 (14)
- Page 4 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Drawings Schematic diagram Mounting on the control cabinet Jan 26, 2023, 3:52 PM Page 4 (14)
- Page 5 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Diagram -150 -120 Horizontal Jan 26, 2023, 3:52 PM Page 5 (14)
- Page 6 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Schematic diagram Ø10 Control cabinet feed-through Jan 26, 2023, 3:52 PM Page 6 (14)
- Page 7 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Schematic diagram Wall mounting Jan 26, 2023, 3:52 PM Page 7 (14)
- Page 8 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Schematic diagram Installation example Jan 26, 2023, 3:52 PM Page 8 (14)
- Page 9 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Schematic diagram Jan 26, 2023, 3:52 PM Page 9 (14)
- Page 10 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Schematic diagram Wall mounting Jan 26, 2023, 3:52 PM Page 10 (14)
- Page 11 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Schematic diagram Mounting on the control cabinet Jan 26, 2023, 3:52 PM Page 11 (14)
- Page 12 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Diagram -150 -120 Vertical Jan 26, 2023, 3:52 PM Page 12 (14)
- Page 13 Antenna - RAD-ISM-2400-ANT-OMNI-2-1-RSMA 2701362 https://www.phoenixcontact.com/gb/products/2701362 Classifications ECLASS ECLASS-9.0 19070105 ECLASS-10.0.1 19070105 ECLASS-11.0 19070105 ETIM ETIM 8.0 EC001698 UNSPSC UNSPSC 21.0 43223100 Jan 26, 2023, 3:52 PM Page 13 (14)
- Page 14 Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 25; For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads” Phoenix Contact 2023 © - all rights reserved https://www.phoenixcontact.com PHOENIX CONTACT Ltd Halesfield 13, Telford Shropshire, TF7 4PG 01952 681700 info@phoenixcontact.co.uk...
