Summary of Contents for Minolta MNCD337N

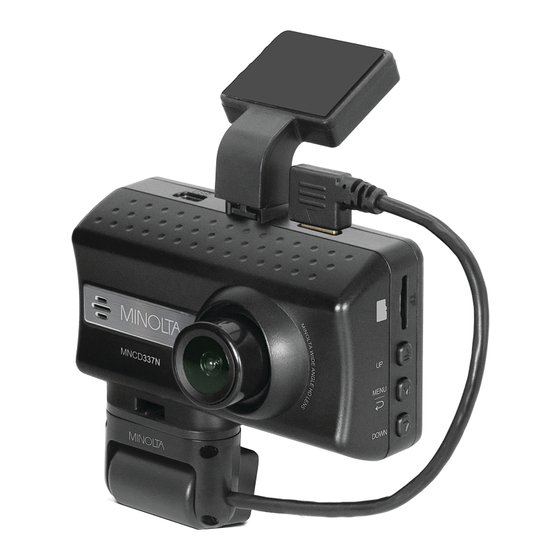

- Page 2 This camcorder is intended for in-vehicle shooting, which effectively enables the collection of evidence for driving accidents, daily life, traveling and outdoor activities. The Minolta MNCD337N allows you to record video when mounted to your car’s windshield in a wide, large angle.
-
Page 3: Getting Started
1. GETTING STARTED 1.1 Overview In-Car Camera Cable Display In-Car Camera Lens In-Car Camera IR LEDs USB Port In-Car Camera Cable OK | Record Display Mode In-Car Camera Lens Lock / Unlock File In-Car Camera IR LEDs Power | Display On/Off USB Port Speaker OK | Record... - Page 4 1.2 Button and Functions Explanation Function Description Shows the current view and menu, options and different Display statuses of each mode. Press and hold for 3 seconds to power on and off. Power Tap once while power is on to turn off the display, tap again to turn the display on, Tap once to cycle between Video, Photo and Playback Mode...
- Page 5 1.3 Memory Card Insertion and Removal 1. Ensure the camcorder is powered off. 2. Insert a MicroSD memory card into the MicroSD card slot with the gold pins facing the display screen. Do not force it through the MicroSD card into the slot as it can only be inserted in one direction.
- Page 6 1.5 Swivel Lens The front lens of your dashcam can swivel and adjust to your preferred point of view. Simply move the front lens housing in any direction until satisfied with the front view. Be sure to adjust the front lens only after applying the mount and dashcam combined to your windshield and it is fixed firmly in place.
- Page 7 1.7.3 USB Cord / Computer Use Connect the included USB cable to a free USB port on your computer, and connect the other end of the cable into the camcorder’s USB port. The battery may be charged while the camcorder is powered on or off. The camcorder will automatically power on and show three different modes you can select from.
-
Page 8: Camcorder Operation
3. CAMCORDER OPERATION Once you have inserted the MicroSD memory card and plugged your camcorder into a power source, your camcorder will automatically power on and begin recording. Press the OK button to stop recording. You may also manually power your camcorder on or off by pressing the POWER button for 2 seconds. - Page 9 3.4 Main Screen and Icons Explanation VIDEO MODE 3 4 5 6 7 1. VIDEO Mode 2. Recording Time Elapsed 3. Park Mode 4. Motion Detection 5. Memory Card Inserted 6. Audio Recording 7. Battery Level 8. Current Time 9. Current Date PHOTO MODE 1.
- Page 10 4. MENU & SETTINGS INTERFACE 4.1 Video & Photo Mode Settings Overview Your camcorder comes preset with some user-adjustable settings to fine tune and customize how you would like your videos to be captured. The settings are already optimized and preset for the easiest experience. NOTE: The settings menu cannot be accessed while the camcorder is recording a video file.
- Page 11 4.1.3 Exposure This function adjusts the frame brightness in your video. 1. In VIDEO or PHOTO modes, press the MENU button. Select ‘Exposure’ by using the UP or DOWN buttons. Press the OK button to enter the ‘Exposure’ submenu. 2. Press the UP or DOWN buttons again to navigate the submenu and select a setting. You can select from +2.0, +5/3, +4/3, +1.0, +2/3, +1/3, +0.0, -1/3, -2/3, -1.0, -4/3, -5/3, and - 2.0.
- Page 12 begin recording and the recording will be stored with a lock icon. The video file will be locked and protected from deletion. 1. In VIDEO or PHOTO modes, press the MENU button. Select ‘Collision Sensitivity’ by using the UP or DOWN buttons. Press the OK button to enter the ‘Collision Sensitivity’ submenu.
- Page 13 1. In VIDEO or PHOTO modes, press the MENU button. Select ‘Photo Quality’ by using the UP or DOWN buttons. Press the OK button to enter the ‘Photo Quality’ submenu. 2. Press the UP or DOWN buttons again to navigate the submenu and select a setting. You can select from Super Fine (highest quality), Fine, and Normal (lowest quality).
- Page 14 To exit the settings menu, press the MENU button and your camcorder will return to the main status screen of the current mode. 4.1.13 Image Stabilization This setting enables image capture in shaky or low-light settings by electronically eliminating motion blur and canceling shake. 1.
- Page 15 1. In VIDEO or PHOTO modes, press the MENU button. Select ‘Date & Time Setup’ by using the UP or DOWN buttons. Press the OK button to enter the ‘Date & Time Setup’ submenu. 2. The menu is presented as follows: 3.
- Page 16 To exit the settings menu, press the MENU button and your camcorder will return to the main status screen of the current mode. 4.1.19 Language This setting allows you to set the language for your camcorder’s menus. 1. In VIDEO or PHOTO modes, press the MENU button. Select ‘Language’ by using the UP or DOWN buttons.
- Page 17 4.1.22 Restore Factory Setting This setting allows you to reset all menu settings to the factory default settings. This function will not delete any media stored on your memory card. 1. In VIDEO or PHOTO modes, press the MENU button. Select ‘Restore Factory Setting’ by using the UP or DOWN buttons.
- Page 18 4.2 Playback Mode Settings Overview Before you begin, ensure you are in PLAYBACK mode. From the main screen, press the MODE button two times. The current mode will be displayed in the upper right corner of the display. To cycle through the different modes, simply press the MODE button again. 4.2.1 Delete Your camcorder gives you the option of deleting your recorded video and photo files right from your camcorder.
-
Page 19: Technical Specifications
Built-in Battery during power outage Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. 40 Wall Street, 61st Floor, New York, NY 10005 USA • Tel: 800-441-1100 www.minoltadigital.com •...
