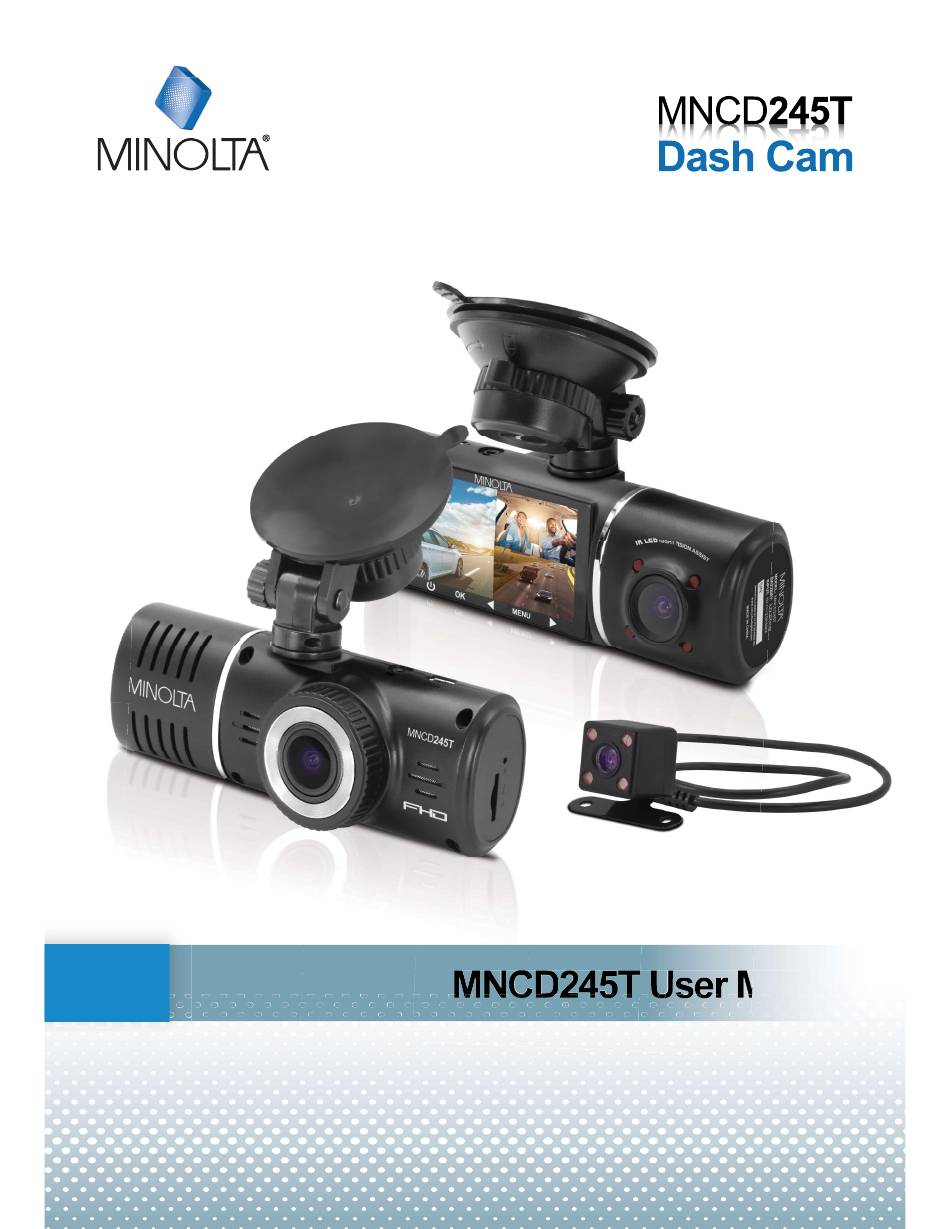

  • Page 1 MNCD245T User Manual...
  • Page 2 This camcorder is intended for in-vehicle shooting, which effectively enables the collection of evidence for driving accidents, daily life, traveling and outdoor activities. The Minolta MNCD245T allows you large angle.

  • Page 3: Getting Started

    1. GETTING STARTED 1.1 Overview USB Port Rear Camera Port Display Mount Port Lens IR LEDs Lens Speaker Reset Memory Card Slot Microphone Power Left Menu Right 11 12 13 14 15 16...
  • Page 4 1.2 Button and Functions Explanation Function Description Shows the current view and menu, options and different Display statuses of each mode. Power Press and hold for 3 seconds to power on or off. Tap to access and exit all menus and submenus. Menu | Mode Press and hold for 3 seconds to cycle between Video, Photo and Playback modes.
  • Page 5 1.3 Memory Card Insertion and Removal 1. Ensure the camcorder is powered off. 2. Insert a MicroSD memory card into the MicroSD card slot with the gold pins facing the display screen. Do not force it through the MicroSD card into the slot as it can only be inserted in one direction.
  • Page 6 1.5 Mounting the Camcorder The camcorder should be mounted on the windshield of your vehicle in a location where it does not interfere with your view through the windshield. The optimal location is to the right of or directly below the rearview mirror. When mounting the camcorder, make sure to run the power cable so that the cable does not interfere with your view through the windshield.
  • Page 7 Please note, if you do not wish to wire your camera to the reverse lights, the rear camera will still operate normally but will not automatically activate unless done so manually by cycling through the camera views. When mounting the rear camera, the camera should always be mounted with the metal bracket at the top, like below.
  • Page 8 Before mounting the rear camera, connect it to the camcorder to check the view from your chosen mounting location. If the view is acceptable, you can proceed with mounting the rear camera. Makes sure that the mounting surface of the vehicle has been cleaned very well and is completely dry.
  • Page 9 1.7 Startup 1.7.1 In-Car Use plug Charging will begin immediately. Please note that the camc emergency use situations. 1.7.2 Interior Camera + Rear Camera Display Views The dashcam comes with a second built-in camera for recording the interior view of your car.
  • Page 10 Default Display View When only the front and interior lenses are enabled (this is the default), you can cycle through the modes listed below by pressing the LEFT button. CAMERAS LENSES: AVAILABLE DISPLAY MODES: Front + Interior (Default Mode) FRONT + INTERIOR Front Only (rear camera not plugged in) Interior Only...
  • Page 11 1.7.3 Video and Photo Files Video and photo files from all 3 camera lenses are saved as separate files on the memory card. below shows a sample folder structure of files are saved when accessing from a PC by USB cable. Front Camera Files Interior Camera Files Rear Camera Files...
  • Page 12 2. USING YOUR CAMCORDER Quick Use Instructions Simply insert the memory card into the card slot, and insert the auxiliary power adaptor into the camcorder The camcorder will automatically power on and begin recording a video file. To start or stop recording at any time, press the OK button. You may also remove the auxiliary DC power adaptor at any time to automatically save a recording and power the camcorder off.

  • Page 13: Camcorder Operation

    3. CAMCORDER OPERATION Once you have inserted the MicroSD memory card and plugged your camcorder into a power source, your camcorder will automatically power on. You may also manually power your camcorder on or off by pressing the POWER button for 3 seconds. There are 3 operation modes available for use.

  • Page 14: Video Mode

    3.4 Main Screen and Icons Explanation VIDEO MODE 1. VIDEO Mode 1 2 3 4 5 2. Recording Active 3. Gravity Sensor Enabled 4. High Dynamic Range (HDR) 5. Collision Sensitivity 6. Recording Time Elapsed 7. Video Size (Resolution) 8. Parking Guard 9.
  • Page 15 4. MENU & SETTINGS INTERFACE 4.1 Video Mode Settings Overview Your camcorder comes preset with some user-adjustable settings to fine tune and customize how you would like your videos to be captured. The settings are already optimized and preset for the easiest experience. Before you begin, ensure you are in VIDEO mode .
  • Page 16 4.1.2 Loop Recording This setting allows you to set a maximum duration for each video clip recorded. Once you select an option, your camcorder will record video clips in this time interval only. Once your selected duration recording time is reached, the camcorder will end the recording and begin recording a new video file seamlessly.
  • Page 17 2. Press the LEFT or RIGHT buttons again to navigate the submenu and select a setting. You can select from +3, +2, +1, 0, -1, -2 and -3. 3. Press the OK button to confirm your selected setting. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.
  • Page 18 1. In VIDEO mode, press the MENU button. Select by using the LEFT or RIGHT buttons. Press the OK button to enter the submenu. 2. Press the LEFT or RIGHT buttons again to navigate the submenu and select a setting. You can select from Off, Low, Medium and High.
  • Page 19 4.2 Photo Mode Settings Overview Your camcorder comes preset with some user-adjustable settings to fine tune and customize how you would like your photos to be captured. The settings are already optimized and preset for the easiest experience. Before you begin, ensure you are in PHOTO mode .
  • Page 20 1. In PHOTO mode, press the MENU button. Select by using the LEFT or RIGHT buttons. Press the OK button to enter the submenu. 2. Press the LEFT or RIGHT buttons again to navigate the submenu and select a setting. You can select from Off and On.
  • Page 21 4.3 Playback Mode Settings Overview Before you begin, ensure you are in PLAYBACK mode . From the main screen, press and hold the MENU/MODE button for 3 seconds two times. The current mode will be displayed in the upper right corner of the display. To cycle through the different modes, simply press and hold the MENU/MODE button for 3 seconds again.
  • Page 22 4.4 Setup Settings Menu Overview The Setup Settings Menu can be accessed while in any mode. From the main screen, press the MENU button twice. The menu will move right and switch tabs from icon to the Setup Settings menu. NOTE: The settings menu cannot be accessed while the camcorder is recording a video file.
  • Page 23 4.4.3 Frequency This setting allows you to set the power frequency of your camcorder. This setting is dependent on the region that the camcorder is being used in. 1. In any mode, press the MENU button twice. Select by using the LEFT or RIGHT buttons.
  • Page 24 2. The menu is presented as follows: Date: MM / DD / YYYY (the date can only be displayed in this format) Time: HH:MM:SS (the time can only be displayed in a 24-hour format) 3. Press the LEFT or RIGHT buttons to change the any of the values of the date and time. When you are satisfied with the highlighted value, press the OK button to confirm that value and proceed to the next value.
  • Page 25 4.4.9 Firmware Version This setting displays the current firmware version of your camcorder. 1. In any mode, press the MENU button twice. Select by using the LEFT or RIGHT buttons. Press the OK button to enter the submenu. 2. The menu will display the current firmware version. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.
  • Page 26 5. MEDIA TRANSFER & RESET Connecting to a Computer Your camcorder can connect to a computer to transfer photo and video files for viewing and editing, or to use the camcorder as a web cam. To connect the camcorder to your computer, nd into the USB port on your c ass Storage...

  • Page 27: Technical Specifications

    3.7v 200mAh - for use as a backup power source during Built-in Battery power outage Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. 40 Wall Street, -441-1100 Copyright ©...
