- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 801018 BOOK SHELF REVISION 0 : 09/14/2017 REVISION 1 : 07/01/2020 PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
801018 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
801018 ITEM: ASSEMBLY INSTRUCTIONS HARDWARE IDENTIFICATION SHORT BOLT 24PCS (1/4" x 12mm BLK) SUCTION CUP 24PCS ∅ 19 x 9mm) 6PCS (20 x 20mm) ALLEN WRENCH (4mm) STEP 1 Do not tighten until each step is completed or instructed. PAGE 3 OF 5... - Page 4 801018 ITEM: ASSEMBLY INSTRUCTIONS STEP 2 STEP 3 PAGE 4 OF 5 COASTERFURNITURE.COM...

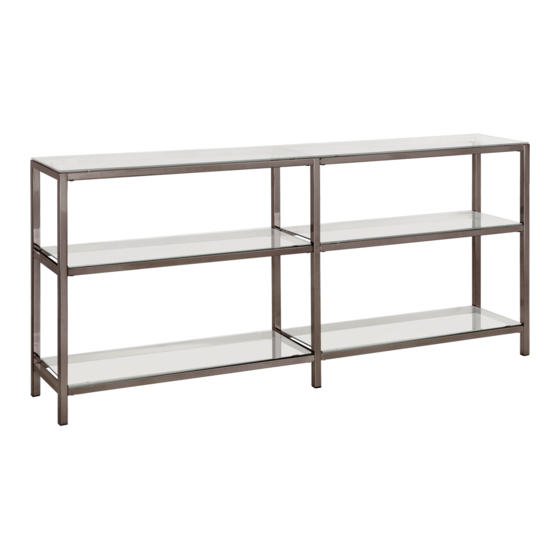

- Page 5 801018 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 1403 X 260 X 679 H (MM) Product Size : 55.25" X 10.25" X 26.75" 679 mm 26.75" 260 mm 1403 mm 10.25" 55.25" 667x255x5 Note : Dimension tolerance ±5% PAGE 5 OF 5...
