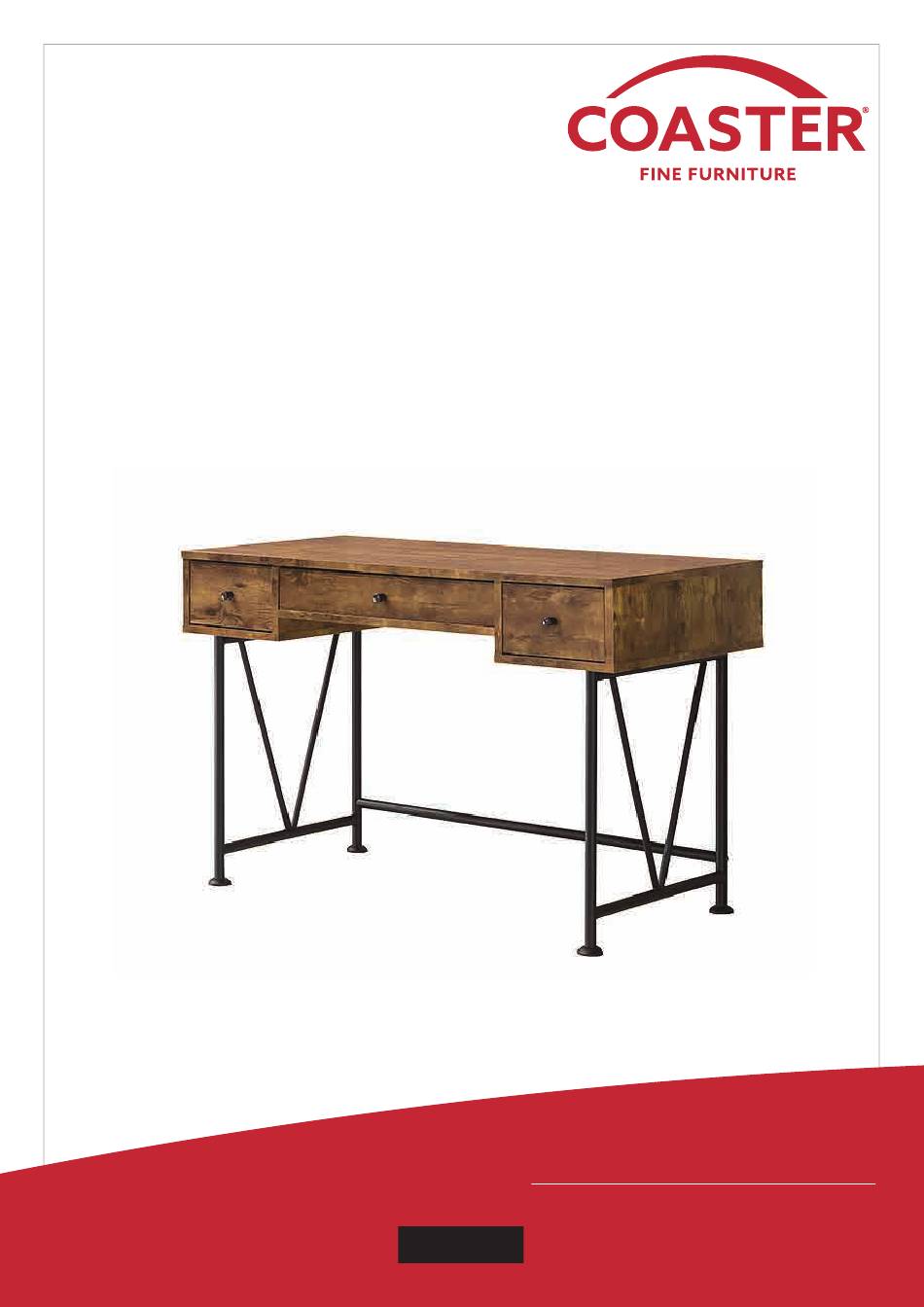

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 801541 WRITING DESK REVISION 0 : 09/26/2017 REVISION 1 : 07/16/2019 PAGE 1 OF 12 COASTERFURNITURE.COM REVISION 2 : 06/28/2022...
-
Page 2: Assembly Tips
801541 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
801541 ITEM: MIDDLE DRAWER 1 PC CROSS BAR 1 PC BOTTOM PANEL METAL FRAME 2 PCS HARDWARE IDENTIFICATION DESCRIPTION FIGURE Q’TY DESCRIPTION FIGURE Q’TY GLIDES SCREW GLUE 40g 1 PC 36 PCS Ø 3x12mm SR WOODEN DOWEL 45 PCS KNOB 3 PCS Ø... - Page 4 801541 ITEM: STEP 1 7 x 3 x 20 x 18 7 (CR) 7 (CL) the reverse side 7 (CR) 7 (CL) the reverse side 7 (CR) 7 (CL) INCORRECT CORRECT (CL) Apply glue on all wooden dowels to ensure integrity of the structure.
- Page 5 801541 ITEM: STEP 2 x 19 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 3 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 5 OF 12 COASTERFURNITURE.COM...
- Page 6 801541 ITEM: STEP 4 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 5 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 6 OF 12 COASTERFURNITURE.COM...
- Page 7 801541 ITEM: STEP 6 x 14 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 7 x 16 PAGE 7 OF 12 COASTERFURNITURE.COM...
- Page 8 801541 ITEM: STEP 8 x 10 STEP 9 x 10 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 8 OF 12 COASTERFURNITURE.COM...
- Page 9 801541 ITEM: STEP 10-1 STEP 10-2 J x2 L x2 M x2 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 10-3 STEP 10-4 9 x2 6 x8 10 x2 4 x4 STEP 10-5 8 x12...
- Page 10 801541 ITEM: STEP 11-1 STEP 11-2 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 11-3 STEP 11-4 9 x1 6 x4 10 x1 4 x2 STEP 11-5 8 x6 7 (DL) 7 (DL) (DR) 7 (DR) PAGE 10 OF 12 COASTERFURNITURE.COM...
- Page 11 801541 ITEM: STEP 12 STEP 13 COMPLETE PAGE 11 OF 12 COASTERFURNITURE.COM...
- Page 12 801541 ITEM: 22.87" 40.43" 25" 8.11" 13.15" 3.11" 5.91" 10.08" 21.61" 2.24" 13.15" 3.7" 23.58" Note : Dimension tolerance ±5% PAGE 12 OF 12 COASTERFURNITURE.COM...
