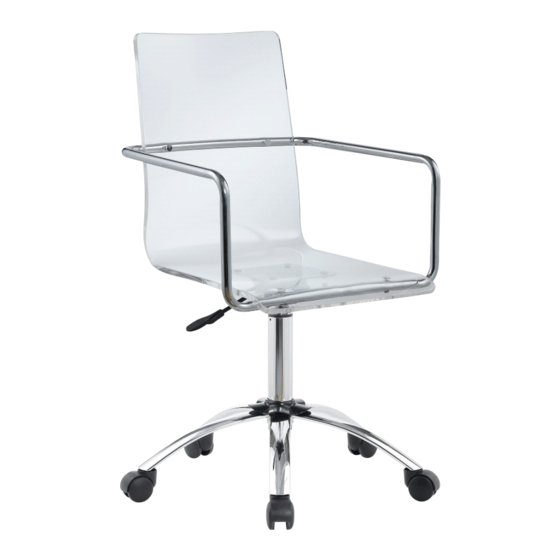

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 801436 OFFICE CHAIR REVISION 0 : 09/15/2017 REVISION 1 : 07/17/2019 REVISION 1 : 06/03/2020 PAGE 1 OF 6 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
801436 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
801436 ITEM: ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS PARTS IDENTIFICATION PARTS IDENTIFICATION BASE CASTER 5PCS HARDWARE IDENTIFICATION SHORT BOLT 4PCS (1/4" x 12mm SR) LONG BOLT 4PCS (1/4" x 25mm SR) 8PCS (1/4") SPRING WASHER 8PCS (1/4") WASHER 8PCS 16mm SR) ∅... - Page 4 801436 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 801436 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COMPLETE How to clean Acrylic product: Using a dry soft microfiber cloth, lightly brush off any dust. For additional care, dampen the cloth with warm water. For deepest cleaning, use an Acrylic cleaner.
- Page 6 801436 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 597 X 597 X 883 H (MM) Product Size : 23 " X 23 " X 34 " 883 mm " 661 mm 26" 597 mm 597 mm " " Note : Dimension tolerance ±5% PAGE 6 OF 6 COASTERFURNITURE.COM...
