Qlight ETA50MCL Series Manual

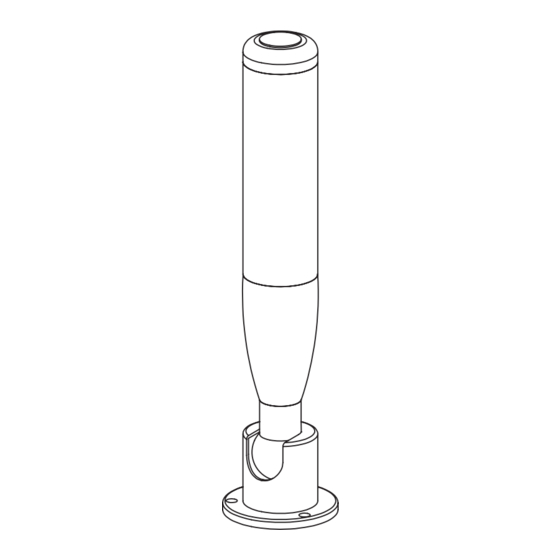

Industrial LED beacon
ETA50MCL Series
85dB
25 55
20
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a
loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the
power of the product. (Failure to follow this may lead to an electric
shock.)
2. Do not install the product in locations that subjects it to excessive
dust or water other than the conditions designated by the IP
protection ratings indicated for each product. (Failure to follow
these instructions may cause a fire to the product, electric shock,
physical injury, malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service
is required, please contact your local Qlight contact point.
(Failure to follow these instructions may lead to fire, electric shock,
or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow
these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives
or property, please make sure to have a double safety device.
(Failure to follow this may cause damage to property, fire, electric
shock and loss of life.)
Ordering Specifications
ETA50MCL -
[Model number]
|
• ETA50MCL • 24 - DC24V
• ETA50MCL-BZ
• ETA50MCLF
• ETA50MCLF-BZ
Product Specifications
Model number Layers Voltage Current Certificate Weight
ETA50MCL
Steady
ETA50MCL-BZ
Steady w/built-
in buzzer
3 DC24V 0.085A
ETA50MCLF
Flashing
ETA50MCLF-BZ
Flashing w/
built-in buzzer
Please scan the QR code for more
detailed product information.
www.qlight.com
24 - R
[Voltage] [Color]
| |
R-Red
A-Amber
G-Green
Color
R-Red
0.55Kg
A-Amber
G-Green
Precautions for Correct Use
Failure to follow the proper instructions may cause
damage to property, the product, or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation
around the product.
2. Please turn off the power of the product immediately if it fails
to operate properly.
3. Carefully wire the product according to each product's
specification.
4. Please be careful in preventing chemicals such as thinner,
benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause
malfunction or damage to the product, fire, and electric
shock.
Dimensions
• ET64MCL, ET64MCL-BZ, ET64MCLF, ET64MCLF-BZ
360°/3-Ø4.8
PCD65
Ø17 CABLE ENTRY
(Units : mm)
Ø50
Ø77
