Qlight QWCD50 Operating Manual

QWCD50/QWCD50SD
OPERATING MANUAL

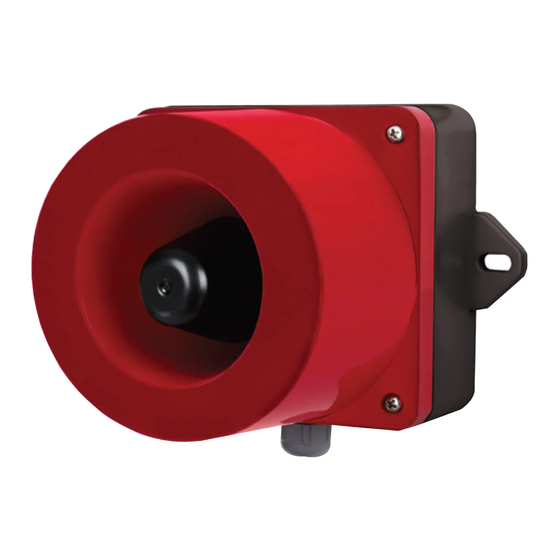

LED Strobe Light with Siren
Thank you for purchasing Qlight product. Please read this
manual carefully before installing this product for safe and
long use.
1

Feature

▪ A new concept of using the horn cover as a light globe.
▪ Sound pattern selection switch, volume controller and built-in
SD card reader realize convenient control.
▪ There are 31 built-in sounds that can be played in various
environments,
▪ User can select MP3 file by themselves in case of SD card
type model
▪ Protection rating IP66 allows excellent air tightness where is
dusty and outdoor place
▪ Ambient temperature : -30°C to +50°C
▪ Materials : Horn-PC, Housing- PC+ABS BLEND
▪ Volume : QWCD50 - Max. 123dB (Warning sounds)
QWCD50SD- Max. 118dB (MP3 sounds)
2

Specification and Dimension

▪ QWCD50/QWCD50SD Specification
Model name Voltage Current
DC12V Max.2.4A
QWCD50
DC24V Max.2.1A
QWCD50
AC110
SD
Max.0.38A
~220V
▪ QWCD50/QWCD50SD Dimensional drawing
QWCD50/QWCD50SD
www.microlectra.nl
Built-in sound and
Weight
(Kg)
volume
▪ Bit Input : 5Ch
(SD card only)
2.4
▪ Binary Input : 31Ch
▪ Warning sound :
Max.123dB
2.45
▪ MP3 : Max. 118dB
3

Sound patterns and selection

▪ This product supports Bit input(SD Card) and Binary input mode.
▪ Bit input mode is specialized option for SD card. 5 sound tones can
be played as pre-defined rule.
▪ Following is how to save MP3 files into SD card.
23 _ For Elise
▪ Binary input mode can played 31 sound tones by using combination
of 5ch switch.
No. 1 2
0 0 0
1 0 0
2 0 0
3 0 0
4 0 0
5 0 0
6 0 0
7 0 0
8 0 1
9 0 1
Color
10 0 1
11 0 1
12 0 1
R
13 0 1
A
14 0 1
G
15 0 1
B
16 1 0
17 1 0
18 1 0
19 1 0
20 1 0
21 1 0
22 1 0
23 1 0
24 1 1
25 1 1
26 1 1
27 1 1
28 1 1
29 1 1
30 1 1
31 1 1
info@microlectra.nl
.mp3
File name 20 Koreans, 40 Alphabets
Separator between file number and title
No. of message 01 to 31
3 4 5 Sound tone
0 0 0 No sound
0 0 1 Rel rel rel
0 1 0 Slow Ambulance PI-PO
0 1 1 Oit Oit warning sound
1 0 0 Emergency WA-U(Yelp)
1 0 1 Pi- buzzer
1 1 0 7 Short PI / 1 Long
1 1 1 Pi o Pi o
0 0 0 Phone Ring
0 0 1 Pi- buzzer
0 1 0 Pi pi pi short
0 1 1 Di o Di o 2 tones buzzer
1 0 0 Oit Oit warning sound
1 0 1 Slow Ambulance PI-PO
1 1 0 Slow Di o Di o
1 1 1 Fast Li o li o
0 0 0 Fire.A-ANG
0 0 1 Fast Ambulance PI-PO
0 1 0 Slow Ambulance PI-PO
0 1 1 Ri ro ri ro warning sound
1 0 0 Repeat Di-o 3 times
1 0 1 Fire.A-ANG
1 1 0 Ambulance PI-PO
1 1 1 Slow Fire.A-ANG
0 0 0 Pi-pi- buzzer low frequency
0 0 1 Pi-pi- buzzer high frequency
0 1 0 Di-di- buzzer high frequency
0 1 1 Di-di- buzzer low frequency
1 0 0 Rising Po-ong
1 0 1 Fast Ambulance PI-PO
1 1 0 Rising frequency
1 1 1 Repeat A-ANG
