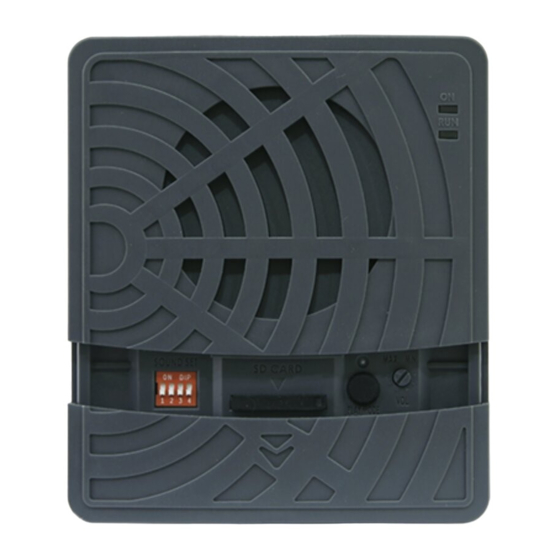

Panel Mount Audible Alarm
QMPS
98dB
25
50
54
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Warning and Caution
■
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, and or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specification
-
QMPS
[Model number]
|
• QMPS
• 12/24-DC12V-24V
• 110/220-AC110V-220V
Please scan the QR code for more
detailed product information.
QMPS
www.qlight.com
95dB
Specification
12/24
Model
number
[Voltage]
|
QMPS
※ DC type model has a free-voltage range of DC10V-30V.
※ AC type model has a free-voltage range of AC100V-240V.
• Protection rating : IP54
• Ambient operating temperature : -25 ℃ to + 50 ℃
Sound Volume
Voltage
Current
DC12V-24V
Max. 0.750A
• Warning : 98dB
• MP3 : 95dB
AC110V-220V Max. 0.100A
1
Input Method /
(dB)
No.of ch
Bit Input : 5Ch
Binary Input : 30Ch
Certi-
Weight
ficate
0.35 kg
0.53 kg

Advertisement

Table of Contents
loading

Related Manuals for Qlight QMPS

Summary of Contents for Qlight QMPS

  • Page 1 3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to follow these instructions may lead to fire, electric shock, or product damage.) 4.

  • Page 2: Wiring Instructions

    Dimensions (Unit : mm) QMPS QMPS Mounting Bracket SOUND POWER STOP BUSY Wiring Instructions When wiring the product with an external transistor, both NPN and PNP type transistors can be used. QMPS-DC QMPS-AC EXTERNAL CONTACT EXTERNAL CONTACT SOUND DW SOUND...

  • Page 3: Parts Definition

    ㆍ If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection ratings VOL. 1 2 3 4 1 2 3 4 PLAY MODE indicated (IP54), it may cause malfunction or damage to the product. ㆍ For further information, please visit our website at http://www.qlight.com.

  • Page 4: Operation Indicator

    SOUND POWER Operation Indicator Removing the Front Cover STOP BUSY SOUND SET SOUND SET Removing the Front Cover SOUND SET SD CARD MAX. MIN. MAX. MIN. SOUND SET SOUND SET SD CARD SD CARD 1 2 3 4 Red Steady Light VOL.

  • Page 5: Volume Adjustment

    OFF(0) terminal block. Actual products do not have switches. Bit Input Method Can choose one of the 5 channels (Ch1 - Ch5) Binary Input Method Can choose one of the 30 channels www.qlight.com (Ch1 - Ch30)
  • Page 6 Sound Type and Combination for Built-in Sound Bit Input Binary Input ■ ■ ㆍ For bit input method, select one of the 5 sound types from the selected ㆍ For binary input method, select one of the 30 sound types to play. sound group to play.
  • Page 7 Sound Type and Combination for SD Card Bit Input Binary Input ■ ■ ㆍ When using an external sound stored on the SD Card, bit input ㆍ When using an external sound stored on the SD Card, the binary input is selects one of the five sounds stored by the user and plays it.
  • Page 8 ※ ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Head office : A-412, 579 Kyungin-Ro, Guro-Gu, Seoul, Korea (Postal Code : 08212) Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805) www.qlight.com EN-1709A...
