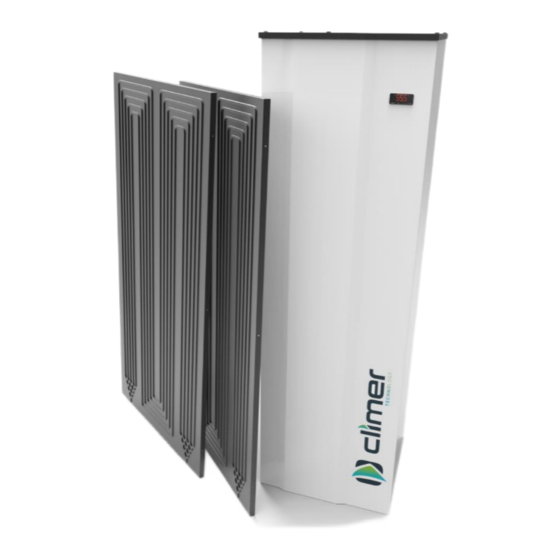

- Page 1 INSTALLATION AND USER MANUAL ECOHEAT TD EH500TD...
- Page 2 INSTALLATION AND USER MANUAL ECOHEAT TD V1REV5EN1222...
-
Page 3: Table Of Contents
INSTALLATION AND USER MANUAL ECOHEAT TD INTRODUCTION ......................1 GENERAL INDICATIONS ....................1 TECHNICAL INFORMATION ..................2 INSTALLATION STEPS ....................6 THERMODYNAMIC SOLAR PANEL INSTALLATION ............ 7 PLACING ECOHEAT ...................... 9 CONNECTION BETWEEN ECOHEAT TD AND PANELS ..........10 HYDRAULIC CONNECTION ..................14 ELECTRICAL CONNECTION .................. - Page 4 INSTALLATION AND USER MANUAL ECOHEAT TD V1REV5EN1222...
-
Page 5: Introduction
INSTALLATION AND USER MANUAL ECOHEAT TD INTRODUCTION This product has been manufactured according to the European Quality Standards, incorporates prime grade materials and its correct working has been tested before it leaves our facilities. Through this Installation and User Manual, you will be guide towards the correct and safety installation of the product. -
Page 6: Technical Information
INSTALLATION AND USER MANUAL ECOHEAT TD 2.3. Package contents The ECOHEAT system comprises the following components: - ECOHEAT TD - Thermodynamic panels - Liquid distributors - Anchoring elements - Silent-Blocks - User Manual 2.4. Indications about transport and unpacking the unit The unit is supplied packed into a wooden pallet properly secured to prevent damage during transport. - Page 7 INSTALLATION AND USER MANUAL ECOHEAT TD 3.2. Dimension drawings It is possible to remove the side and front casing access easily to any part of the system. V1REV5EN1222...
- Page 8 INSTALLATION AND USER MANUAL ECOHEAT TD Dimensions, mm EH500TD 2066 1326 Back connections Front connections Refrigerant inlet (gas), 1/2‘’ Hot water outlet, 1‘’ Refrigerant outlet (liquid), 3/8” Recirculation connection, 1’’ Power supply 230 V/1PH/50 Hz Electrical heater / Temperature probe Cold water inlet, 1’’...
- Page 9 INSTALLATION AND USER MANUAL ECOHEAT TD 3.3. Technical data *Depends on ambient temperature and solar radiation Thermodynamic panel dimensions: V1REV5EN1222...
-
Page 10: Installation Steps
INSTALLATION AND USER MANUAL ECOHEAT TD INSTALLATION STEPS Before starting the installation, check the availability of all the necessary components and tools: - Copper tee for gas line: 2 inlets 3/8 - 1 outlet 1/2 - Liquid distributor (supplied): 1 inlet 3/8 - 2 outlets 1/4 - High- and low-pressure manometers - Vacuum pump - Scales... -
Page 11: Thermodynamic Solar Panel Installation
INSTALLATION AND USER MANUAL ECOHEAT TD 10. Commissioning 11. Adjustment of refrigerant load THERMODYNAMIC SOLAR PANEL INSTALLATION 5.1. Site selection The choice of the installation site of the thermodynamic panel is a key factor in the final performance of the unit. For this reason, we recommend following the indications to achieve the best performance: - South orientation is indeed the best to take the maximum advantage of solar radiation. - Page 12 INSTALLATION AND USER MANUAL ECOHEAT TD When the panel is installed in vertical If the panel is installed at position, always the inlet and outlet horizontal position, refrigerant connection has been at the bottom. inlet pipe should be connected (It is not allowed to install the reverse) into the bottom connection.
-
Page 13: Placing Ecoheat
INSTALLATION AND USER MANUAL ECOHEAT TD Anchor the panels using the lateral and front holes to the suitable surface. PLACING ECOHEAT The place where the system will be installed should allow an easy access to make maintenance work or inspection. Air outlet of ECOHEAT is around 5-10 degrees below inlet temperature, so in case that the exhaust air would not be ducted, the room temperature will be considerably reduced. -
Page 14: Connection Between Ecoheat Td And Panels
INSTALLATION AND USER MANUAL ECOHEAT TD 7. CONNECTION BETWEEN ECOHEAT TD AND PANELS Pipeline installation First, measure the distance between Ecoheat and Panels and cut the appropriate copper pipe length. The diameter for each line is: - Liquid line: 3/8 inch - Gas line: ½... - Page 15 INSTALLATION AND USER MANUAL ECOHEAT TD IMPORTANT: It is recommended to weld pipelines by oxyacetylene welding. Welding is a critical step in the installation and to do it well ensures that the system will run properly along its useful life. Only expert staff should make this step by using proper tools and high-quality materials.
- Page 16 INSTALLATION AND USER MANUAL ECOHEAT TD Join refrigerant pipes to the Panels and Ecoheat Panels are supplied with two nuts for the inlet and outlet connection. The inlet to each panel is 1/2 inch diameter. The installer has to insert the nut into the copper pipe, flare the pipe and then use the nut to fit it.
- Page 17 INSTALLATION AND USER MANUAL ECOHEAT TD IMPORTANT (Only when welding is needed): It is recommended to weld pipelines by oxyacetylene welding. Welding is a critical step in the installation and to do it well ensures that the system will run properly along its useful life.
-
Page 18: Hydraulic Connection
INSTALLATION AND USER MANUAL ECOHEAT TD HYDRAULIC CONNECTION The hydraulic connections are shown in the following scheme: The installer must install the following components of the hydraulic circuit shown in the scheme. - Cold water inlet (1) - Ball valves (2) - Pressure reducing valve (3) - Non- return valve (4) - Lined Filter Strainer (Y Type) (5) -
Page 19: Electrical Connection
INSTALLATION AND USER MANUAL ECOHEAT TD ELECTRICAL CONNECTION The power supply of the system is 230 V/1/50 Hz. The power supply line must be protected with a 16 A circuit breaker. The electrical scheme is shown in the picture below: PV: Photovoltaic connection LPS: Low pressure switch HPS: High pressure switch... -
Page 20: Comissioning. Controller
INSTALLATION AND USER MANUAL ECOHEAT TD 10. COMISSIONING. CONTROLLER. D E S C R I P T I 10.1. User interface connection Symbol Meaning when it lights Compressor switched on Alarm active Compressor working hours exceeded Unit in ºC Unit in ºF Electric heater switched on Stand-by V1REV5EN1222... - Page 21 INSTALLATION AND USER MANUAL ECOHEAT TD 10.2. INSTALLATION- Switching on After full installation of the water heater (power and water pipes connected) and after the water heater tank is full of water, power can be turn ON. 1. After filling the tank of water, connect the mains plug to the mains supply.
- Page 22 INSTALLATION AND USER MANUAL ECOHEAT TD 10.4. Unlocking the keypad When 30 have elapsed without the keys being pressed, the display will show the ‘’Loc’’ label and the keypad will lock automatically. Touch any key until the screen shows UnL, to unlock the keypad.
- Page 23 INSTALLATION AND USER MANUAL ECOHEAT TD 10.6. Changing operating mode To change the operating mode, touch the key for 4 seconds. The screen will show blinking the selectable operating modes. Use the keys to select the operating mode. Touch to confirm or to cancel.
- Page 24 INSTALLATION AND USER MANUAL ECOHEAT TD 10.7. ECO Mode ECO mode: Maximum savings. The system heats water only by heat pump technology. This is the factory default mode. Setting the ECO temperature setpoint The water temperature set point in ECO mode can be changed with the SP1 parameter. Touch key and select SP1.
- Page 25 INSTALLATION AND USER MANUAL ECOHEAT TD 10.8. AUTO Mode It maintains a steady temperature by the heat pump and only use the electrical heater if the temperature falls drastically. Setting the AUTO temperature setpoint The water temperature set point in AUTO mode can be changed with the SP2 parameter. Touch key and select SP2.
- Page 26 INSTALLATION AND USER MANUAL ECOHEAT TD 10.9. OVERBOOST Mode Select this mode to achieve a fast heating by using simultaneously heat pump and electric heater. This mode Works as a rapid heating. Once the setpoint temperature is reached, the system returns to the initial mode.
- Page 27 INSTALLATION AND USER MANUAL ECOHEAT TD Parameter SP3 allows to set the minimum temperature that Overboost can be actived. To change it value, follow the procedure: Touch and select with SP3. Touch to confirm. The display will show the programmed temperature.
- Page 28 INSTALLATION AND USER MANUAL ECOHEAT TD 10.10. Photovoltaic input Working on this mode, the system automatically heats the water due to electric energy surplus or by Off Peak rate. The parameters of this mode can only be changed by the Installer’s Menu. Contact with the technician for more information.
- Page 29 INSTALLATION AND USER MANUAL ECOHEAT TD 10.12. Antilegionella The Anti-legionnella feature reduces the risk of development of bacteria in the tank. The system performs a thermal shock disinfection to avoid any risk conditions that might cause the development of bacteria. The disinfection is made automatically once a month, reaching a temperature of 62 ºC.
-
Page 30: Warranty Conditions
- To exceed the maximum accumulation temperature. The maximum accumulation temperature in all buffer tanks, unless otherwise indicated by Climer Technology, S.L.L., is 85ºC. The most restrictive operating temperature range of those indicated in this document, data sheet, equipment manual and identification label will always prevail, contrary indication expressed by Climer Technology, S.L.L. - Page 31 INSTALLATION AND USER MANUAL ECOHEAT TD V1REV5EN1222...
- Page 32 CLIMER TECHNOLOGY, S.L.L. This company reserves the right to modify the information contained herein without prior notice. V1REV5EN1222...
