CAYMON PSR52 Series Quick Start Manual

PSR52x series
Power distribution unit
Quick Start Guide
The quick start guide gives you an overview of all the front and rear controls and
connections on the PSR52x series. It allows you to get started with the installation of
it in your project.

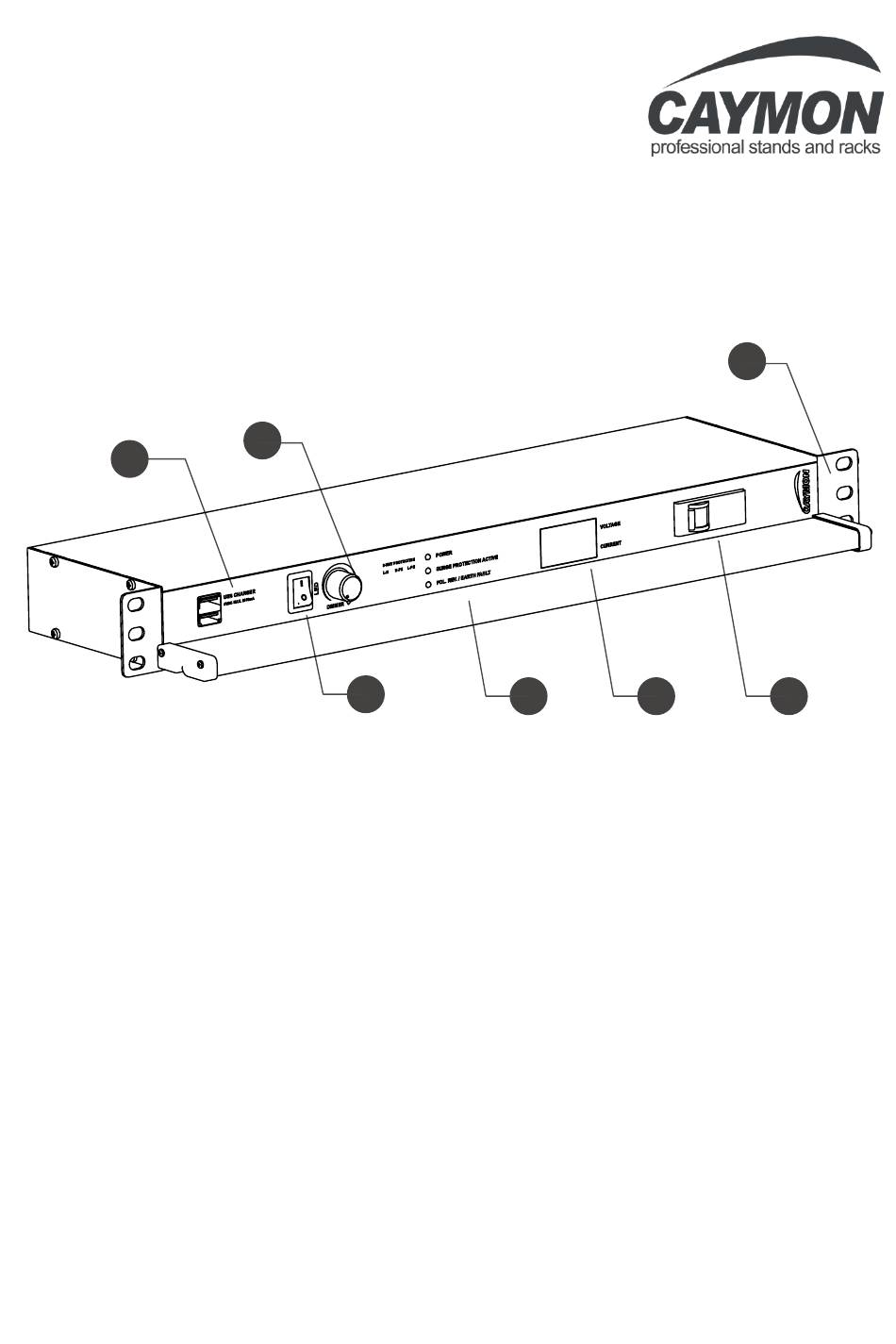

Front:
1
1) USB charger
The two USB type A connectors offer
the possibility to charge various devices
such as smartphones, tablets or similar
devices. It is not designed for plugging in
USB memory devices.
2) Power button LED light
Switches the LED light ON or OFF
3) LED dimmer
The LED light can be dimmed by turning
the dial.
3
2
4 5
4) LED indicator:
- Power indicator: The power is ON
when the LED is illuminated.
- Surge protection indicator: The LED
will illuminate when surge protection
is active and connected devices are
protected from electrical surges. If
the LED does not illuminate, surge
protection is not working anymore
and the unit should be inspected by a
technician.
- Reverse polarity / grounding indicator:
the LED lights up when no grounding
is detected or when the polarity is
reversed.
If the LED is not illuminated, the unit is
grounded and the polarity is correct.
7
6
1
