CAYMON PSR529 Series Quick Start Manual

PSR529 series
Power distribution unit
Quick Start Guide
The quick start guide gives you an overview of all the front and rear controls and
connections on the PSR529 series. It allows you to get started with the installation of
it in your project.

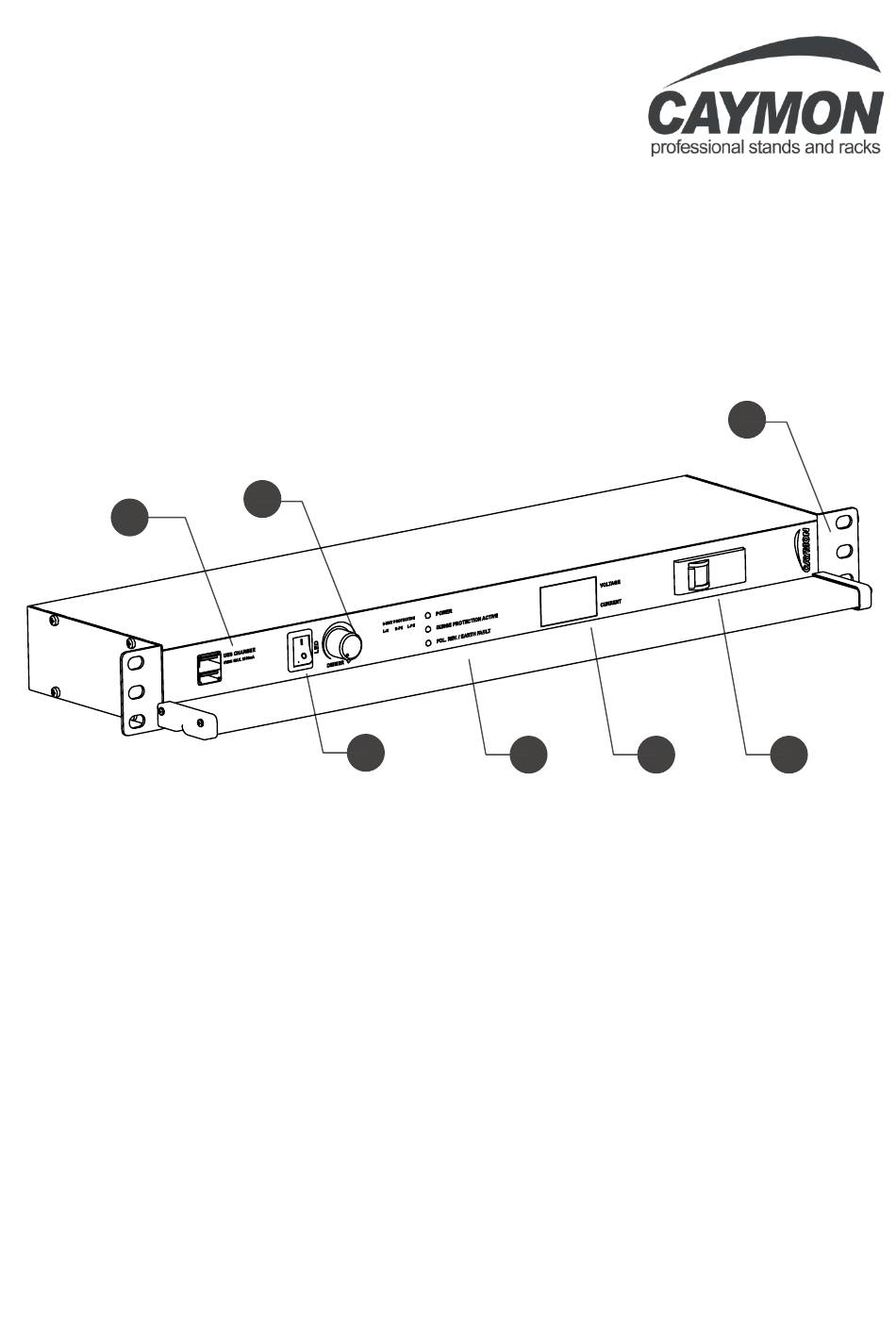

Front:

1
1) USB charger
The two USB type A connectors offer
the possibility to charge various devices
such as smartphones, tablets or similar
devices. It is not designed for plugging in
USB memory devices.
2) Power button LED light
Switches the LED light ON or OFF
3) LED dimmer
The LED light can be dimmed by turning
the dial.
3
2
4 5
4) LED indicator:
- Power indicator: The power is ON
when the LED is illuminated.
- Failure indicator: The LED illuminates
when surge current is detected. If the
LED is not illuminated, no surge current
is detected.
- Reverse polarity / grounding indicator:
the LED lights up when no grounding
is detected or when the polarity is
reversed.
If the LED is not illuminated, the unit is
grounded and the polarity is correct.
