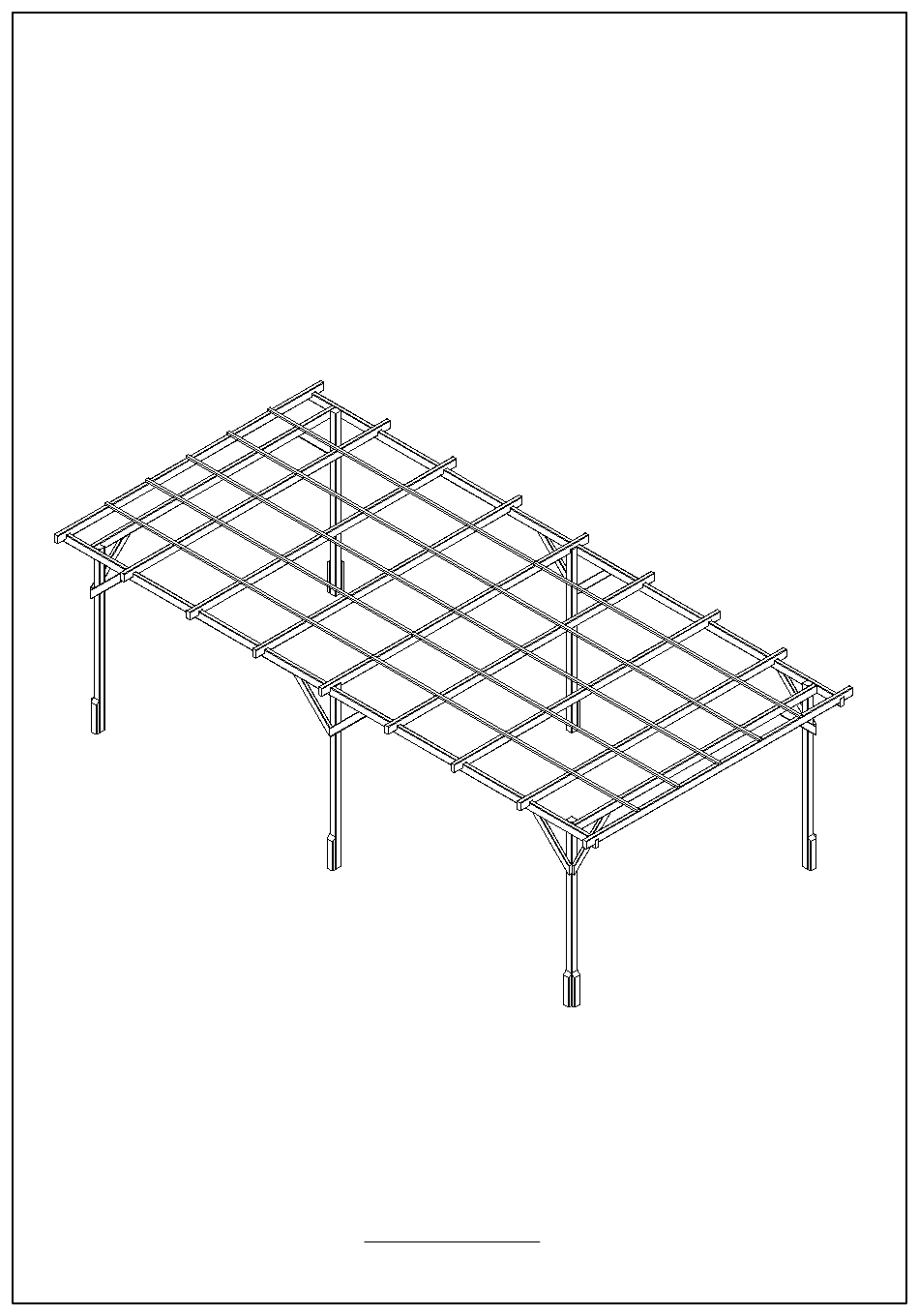

- Page 1 Installation Manual Utopia Pergola 3m x 6m H4-GS3X6PRG Unique product reference number ................. www.dunsterhouse.co.uk...
- Page 2 Email: cs@dunsterhouse.co.uk Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your postcode so we can locate your order.
- Page 3 Components required for Utopia Pergola 3m x 6m 70x70x1965 6x Pressure Treated Post 1965 70x35x350.C 70x35x650.C 10x Pressure Treated Post Fascia 12x Pressure Treated Brace 86x43x3000 2x Pressure Treated Beam 3000 86x43x3300 4x Pressure Treated Beam 3300 86x43x3300.EN 1x Pressure Treated Beam 3300 86x43x3300.N 8x Pressure Treated Beam...
- Page 4 Utopia Pergola 3m x 6m Installation Manual Please remember to pre-drill all holes before fixing, to avoid the splitting of timber. STEP: COMPONENTS REQUIRED Fix the beams to the posts as shown in the image, use 2x screws per end. •...
- Page 5 Utopia Pergola 3m x 6m Installation Manual Please remember to pre-drill all holes before fixing, to avoid the splitting of timber. STEP: COMPONENTS REQUIRED • Once the frame is assembled, fix the braces in positions shown using 3x 70mm screws PART NUMBER and 1x 95mm screw per brace.
- Page 6 Utopia Pergola 3m x 6m Installation Manual Please remember to pre-drill all holes before fixing, to avoid the splitting of timber. STEP: SCREW 70 mm 86x43x3300.N COMPONENTS REQUIRED PART NUMBER 86x43x3300.N 86x43x3300.EN 86x43x3300.EN SCREW 70 mm 86x43x3300.N SCREW 70 mm SCREW 70 mm •...
- Page 7 Utopia Pergola 3m x 6m Installation Manual Please remember to pre-drill all holes before fixing, to avoid the splitting of timber. STEP: SCREW 50 mm COMPONENTS REQUIRED 30x20x3300 PART NUMBER 5x required 30x20x3300 SCREW 50 mm 30x20x3300 5x required SCREW 50 mm •...
- Page 8 Utopia Pergola 3m x 6m Installation Manual Please remember to pre-drill all holes before fixing, to avoid the splitting of timber. STEP: COMPONENTS REQUIRED • On the base of the posts, fix 2x Post Fascia to each post on the corners, and 1x on the PART NUMBER middle posts on the outside of the Pergola.
- Page 9 Installation Manual Utopia Pergola (Additional Wall Panel Pack) Unique product reference number ................. http://www.dunsterhouse.co.uk Dunster House Ltd.
- Page 10 Utopia Pergola 3m x 6m - Pack may contain 2m Solid Wall Panel Pressure Treated 1860 Solid Wall Panel Pressure Treated 2860 Glass Wall Panel Pressure Treated 1860 LOOSE COMPONENTS Horizontal Beading Timber - Per Window Pressure Treated Vertical Beading Timber - Per Window Pressure Treated Page 10...
- Page 11 Utopia Pergola 3m x 6m - Pack may contain Glass Wall Panel Pressure Treated 2860 LOOSE COMPONENTS Horizontal Beading Trim - Per Window Pressure Treated Vertical Beading Trim - Per Window Pressure Treated ACCESSORIES PART NUMBER 70mm Screw For Panels Varies Varies 40mm Pin Nail For Beading Trims...
- Page 12 Utopia Pergola 3m x 6m - Additional Panel Assembly Full Height Wall Panel Assembly • 3m Solid Wall Panel • 2m Solid Wall Panel **Quantity of components will vary, depending on your purchase • 70mm Screws • Position the solid wall panels between posts as shown in the diagram below. •...
- Page 13 Utopia Pergola 3m x 6m - Additional Panel Assembly Half Height Wall Panel Assembly • 3m Solid Wall Panel • 2m Glass Wall Panel **Quantity of components will vary, • 3m Glass Wall Panel • 70mm Screws depending on your purchase •...
- Page 14 Principle of Glass Installation 1x - Glass 16x - Pin Nail **Quantity of components will vary, depending on your purchase 2x - Horizontal Beading Trim 2x - Vertical Beading Trim Please Note: This diagram represents how to install one window panel frame. Please apply this procedure to all window frames purchased.
