Installation Manual

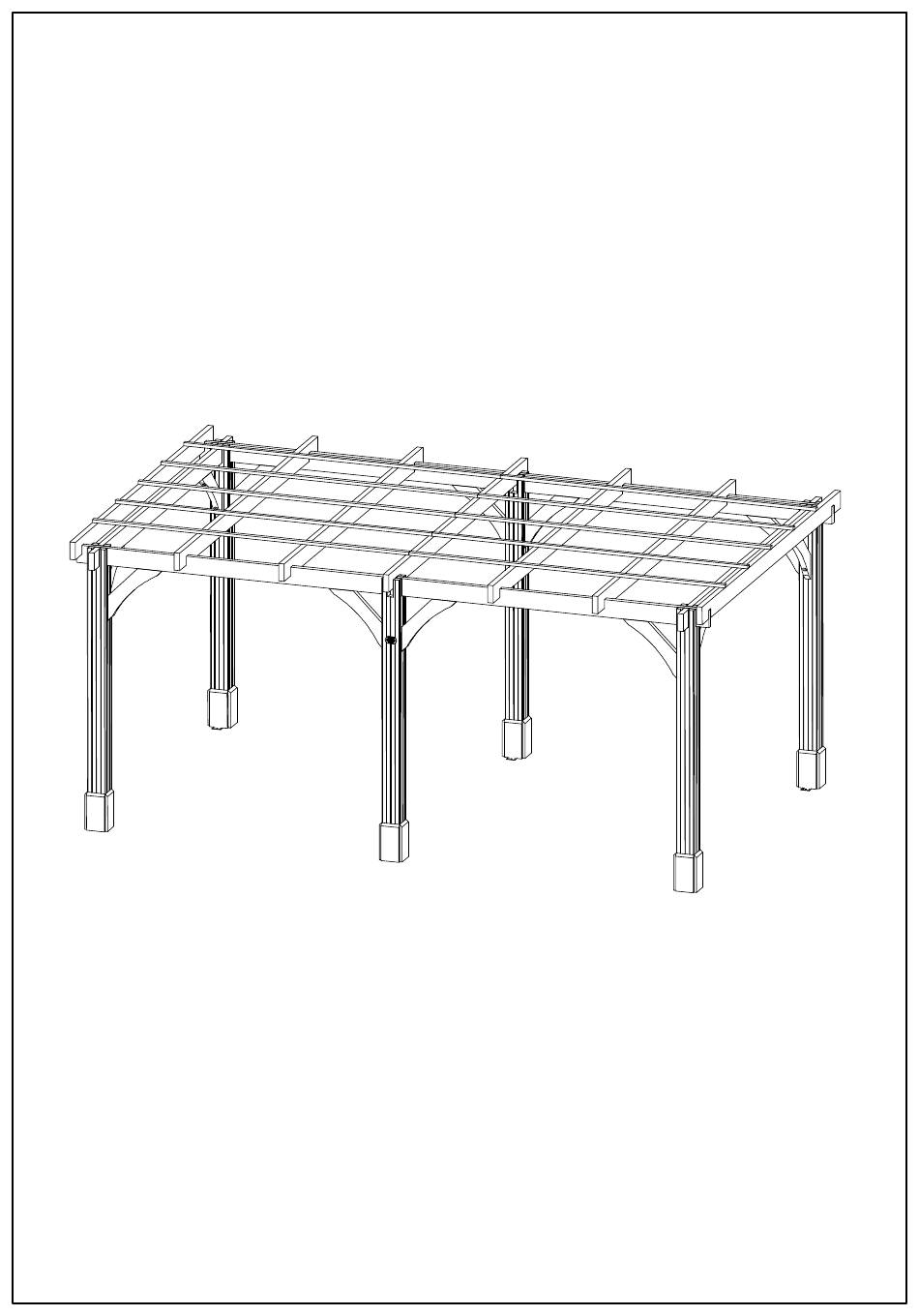

Artemis Pergola 3m x 5m
Base:
A correct base is paramount to installing your Pergola correctly. Only a completely level and
square load bearing base will ensure a stable and problem free installation.
P3-3050PRG
Unique Product Reference Number:
.........................
www.dunsterhouse.co.uk
Advertisement
Related Manuals for Dunster House Artemis P3-3050PRG
Summary of Contents for Dunster House Artemis P3-3050PRG
- Page 1 Installation Manual Artemis Pergola 3m x 5m Base: A correct base is paramount to installing your Pergola correctly. Only a completely level and square load bearing base will ensure a stable and problem free installation. P3-3050PRG Unique Product Reference Number: ......
- Page 2 Email: cs@dunsterhouse.co.uk Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number starting with SO or your postcode so we can locate your order.
- Page 3 Components required for Artemis Pergola 3m x 5m 145x145x2260.A 6x Pressure Treated Post 2260 145x20x300.A 140x45x630.A 24x Pressure Treated Post Fascia 12x Pressure Treated Bracket 140x45x3200.B2 9x Pressure Treated Beam 3200 140x45x2645.A 2x Pressure Treated Beam 2645 140x45x2600.A 2x Pressure Treated Beam 2600 25x35x2575 25x35x2570...
- Page 4 Components required for Artemis Pergola 3m x 5m ACCESSORIES Description 35mm Screw 50mm Screw 120mm Screw M10x120mm Hex Head Screw M10x20mm Washer 70x70x70mm Angle Bracket DH Logo 20mm Screw Customer Instructions Page 02...
- Page 5 Assembly Instructions for Artemis Pergola 3m x 5m Components required for Step 1 2x 140x45x3200.B2 4x 145x145x2260.A 8x 120mm Screw **Avoid splitting timber by pre-drilling ALL screw holes** Step 1. Prepare 2 assemblies of the beams and posts using 2x post 145x145x2260.A and 1x beam 140x45x3200.B2 for each assembly.
- Page 6 Assembly Instructions for Artemis Pergola 3m x 5m Components required for Step 2 12x 140x45x630.A 2x 140x45x2645.A 24x M10x120mm Hex Head Screw 24x M10x20mm Washer 2x 140x45x2600.A 12x 120mm Screw 2x 145x145x2260.A 6x 70x70x70mm Angle Bracket Step 2. Using the same principles as shown in Step 1, position and fix the remaining beams and posts so that your assembly matches the diagram below.
- Page 7 Assembly Instructions for Artemis Pergola 3m x 5m Components required for Step 3 14x 120mm Screw 7x 140x45x3200.B2 Step 3. Fix 7x 140x45x3200.B2 beams using 1x 120mm Screw at either end of the beam. Ensure that the beams are evenly spaced, as shown in the diagram below. 140x45x3200.B2 120mm Screw Flush...
- Page 8 Assembly Instructions for Artemis Pergola 3m x 5m Components required for Step 4 5x 25x35x2570 5x 25x35x2575 40x 50mm Screw Step 4. Once the main beams are in place you are ready to fix 5x 25x35x2575 and 5x 25x35x2570 trims on top of the beams.
- Page 9 Assembly Instructions for Artemis Pergola 3m x 5m Components required for Step 5 1x DH Logo 96x 35mm Screw 24x 145x20x300.A 2x 20mm Screw Step 5. Attach 4x 145x20x300.A post fascias to each post. Use 4x 35mm Screws per post fascia. Fix the DH Logo to a post of your choice using 2x 20mm Screws.
- Page 10 Installation Manual Additional Wall Panels Artemis Pergola Half Panel Wall Half Full Panel Glass Panel Wall Full Panel Wall Please note: 1. These instructions are for how to assemble additional wall panels in your pergola. The configuration of the panels shown on the illustrations may vary from the product you have purchased.
- Page 11 Components required for Additional Wall Panels for Artemis Pergola Panel CP1 Panel CP10 Pressure Treated Pressure Treated Panel CP8 Panel CP2 Pressure Treated Pressure Treated Page 01...
- Page 12 Components required for Additional Wall Panels for Artemis Pergola glass 825x960 70x15x2120 Pressure Treated Panel Support 2120 70x15x1060 Pressure Treated Panel Support 1060 105x20x900 Pressure Treated Sill ACCESSORIES Description 35mm Screws for trims varies 60mm Screws for panels varies 2 per panel M10x110mm Hex head bolts for shield anchors 2 per panel M10x28mm Washers...
- Page 13 Assembly Instructions for Additional Wall Panels for Artemis Pergola Components required - quantities vary depending on your purchase Panel CP1 Panel CP10 60mm Screws M10x110mm Bolts M10 Shield Anchors M10x28mm Washers **Full height wall panels assembly** Step 1. Position the panels between the support posts as shown in the diagram below. Join the panels to each other and the support posts using 5x 60mm screws per panel side.
- Page 14 Assembly Instructions for Additional Wall Panels for Artemis Pergola Components required - quantities vary depending on your purchase 90x20x3105.B 90x20x3430.B from pergola pack from pergola pack 70x15x2120 35mm Screws **Full height wall panels assembly** Step 2. Inside the pergola, on full panel wall, fix components '90x20x3105.B' and '90x20x3430.B' using 4x 35mm screws.
- Page 15 Assembly Instructions for Additional Wall Panels for Artemis pergola Components required - quantities vary depending on your purchase Panel CP10 Panel CP2 60mm Screws M10x110mm Bolts M10 Shield Anchors M10x28mm Washers **Half height wall panels assembly** Step 1. Position the panels between the support posts as shown in the diagram below. Join the panels to each other and the support posts using 3x 60mm screws per panel side.
- Page 16 Assembly Instructions for Additional Wall Panels for Artemis Pergola Components required for - quantities vary depending on your purchase 105x20x900 70x15x1060 35mm Screws **Half height wall panels assembly** Step 2. On the top of the 'CP2' panels, position '105x20x900' sills so that they are flush with the panel frames from the inside of the pergola.
- Page 17 Assembly Instructions for Additional Wall Panels for Artemis Pergola Components required - quantities vary depending on your purchase glass 825x960 Panel CP8 60mm Screws **Windows assembly** Assemble the half height wall panels according to the instructions given on the previous pages. Take off the beading trims from one side of the 'CP8' glass panel frames.
