KEKO K599 Installation Instructions Manual

Aluminum retractable tonneau cover

Advertisement

Quick Links

Capota Rígida Retrátil Aluminum |
K599 | Toro 16- | Ram 1000 16-

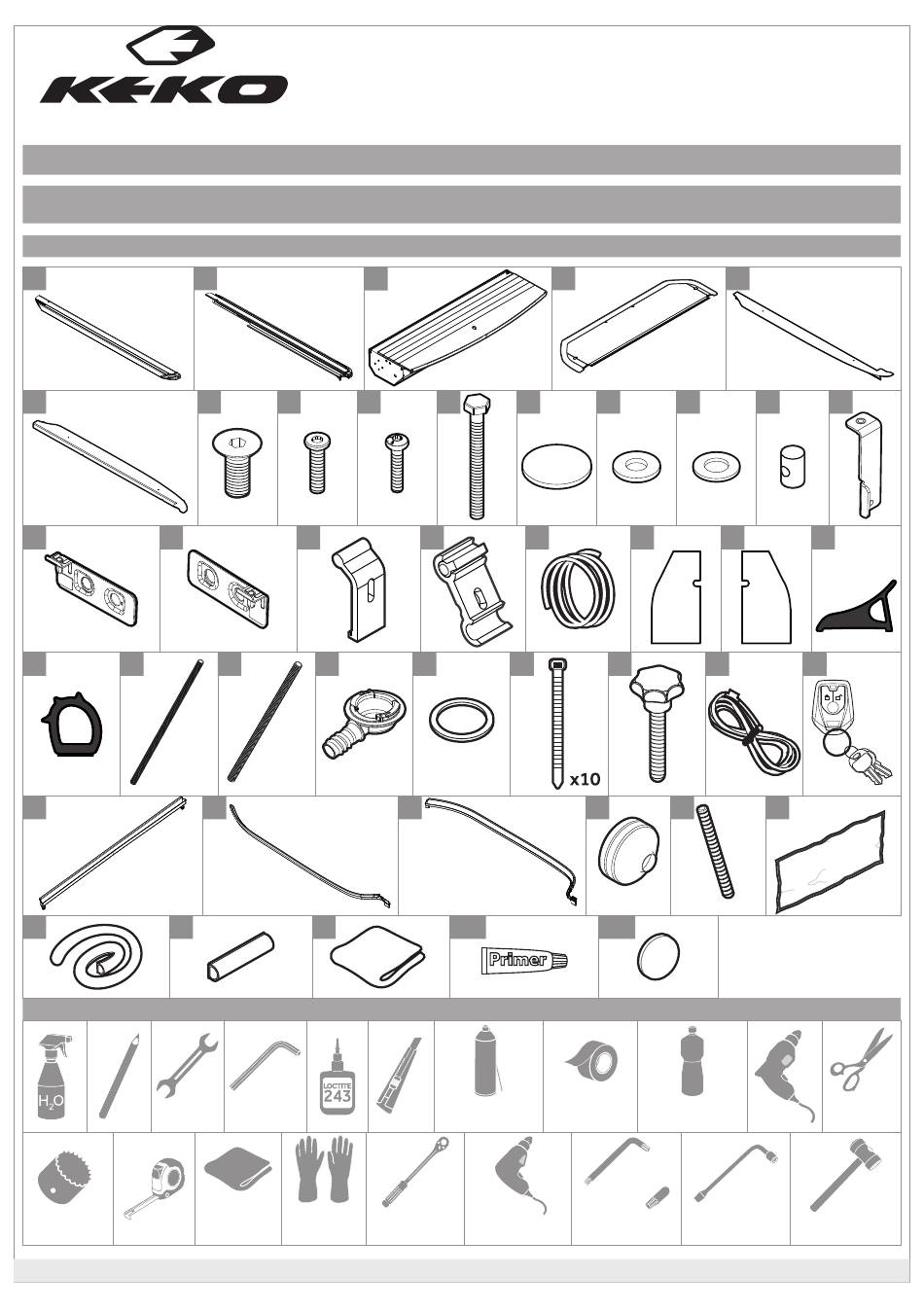

COMPONENTES |
Components
A
F
Q
P
x2
X
Y
x2
x2
A1
A8
A7
x2
x2
FERRAMENTAS
| Tools | Herramientas
10 mm
Ø30
Serra Copo
Hole Saw
Sierra Agujero
4.1460.1491
Aluminum Retractable Tonneau Cover
| Componentes
B
C
G
H
I
x6
x8
R
x2
Z
#
x2
A2
A9
x2
4mm e 5mm
Luvas
Pano Limpo
Gloves
Clean Cloth
Guantes
Medidor de Torque
Trapo Limpio
Rua Adhautt Mantovani - Linha 80 - Cx. Postal 336 - Flores da Cunha - RS - Brasil
CEP 95270-000 - www.keko.com.br - keko@keko.com.br - (0-XX-54) 3279-5700
MANUAL DE INSTALAÇÃO
D
J
K
x2
x4
S
T
x4
x4
&
@
x2
x2
A3
A10
Lubrificante Silicone
Silicone Lubricant
Lubricante Silicona
Cinta Adhesiva
Torquímetro
Parafusadeira
Torquemeter
Electric Screwdriver
Tornilleria
INSTALLATION INSTRUCTIONS
MANUAL DE INSTALACIÓN
| Tapa R
igida Retráctil Aluminum
E
L
M
x4
x4
x6
U
V
$
¢
A4
A5
x4
A11
x3
x6
Álcool Isopropílico
Fita Adesiva
Isopropyl Alcohol
Scotch Tape
Alcohol Isopropílico
ou
Chave Torx T20 e T25
Chave L 10 e 11mm
T20 T25 Torx Wrench
L Wrench 10 and 11mm
Llave L 10 y 11mm
Llave Torx T20 y T25
N
O
x4
x2
W
§
A
A6
x2
Tesoura
Scissors
Tijera
Martelo de Borracha
Rubber Hammer
Martillo de Goma
Rev. 00 - 08/10/2021
