FKP002B
Field module for cold locations with relay and semiconductor outputs for EEV
Features
Operation of electronic expansion valves:
- Constant via output 0...10V
- Direct operation of an electronic expansion valve 230V~, pulsed
- Operation of an electronic expansion valve 230V=, pulsed only via driver ATV230
Regulation of one evaporator per module
Connection of an external display
Fixed input/output allocation for probes, control inputs and relays
Emergency program in case of bus errors
Differentiation of probes that have not been used and defective probes
Intelligent determination of product temperature by means of the connected probes
No parameters need to be set on the device
FKP002B_PI_2013-07_EN
Subject to technical modifications
FRIGOLINK
Product information
Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Würth FKP002B
Summary of Contents for Würth FKP002B

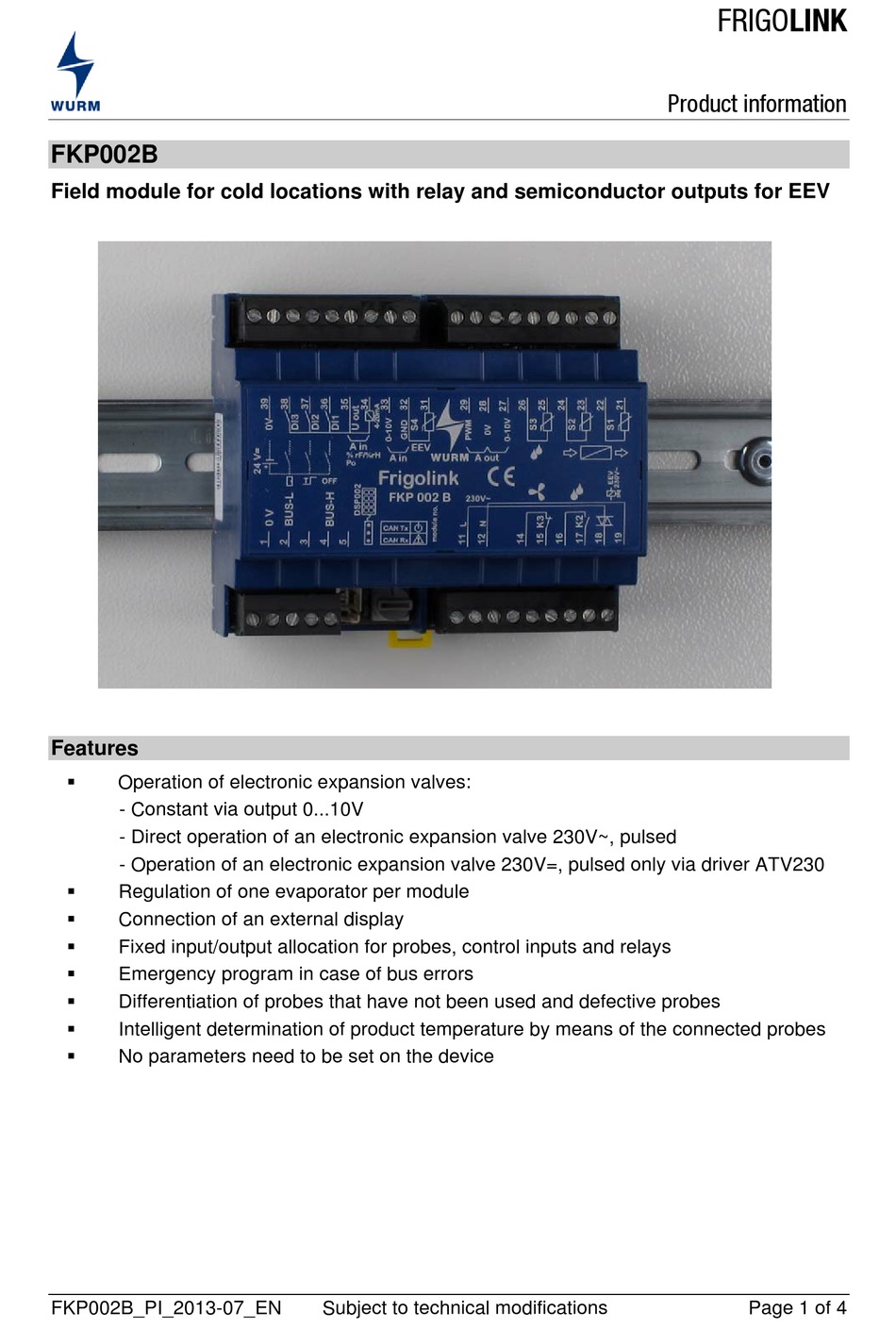

- Page 1 FRIGOLINK Product information FKP002B Field module for cold locations with relay and semiconductor outputs for EEV Features Operation of electronic expansion valves: - Constant via output 0...10V - Direct operation of an electronic expansion valve 230V~, pulsed - Operation of an electronic expansion valve 230V=, pulsed only via driver ATV230 ...
- Page 2 Wurm GmbH & Co. KG Elektronische Systeme accepts no liability in case of improper use or use for other than the intended purpose. Target group These instructions are intended for "service technician" personnel. The FKP002B is a field module for cold locations with relay and Intended purpose semiconductor outputs for electronic expansion valves. WARNING! Danger of death from electric shock! ...
- Page 3 FRIGOLINK Product information Circuit diagram Mounting The device is designed for profile rail mounting. The housing is a standard size and is also suitable for installation in fuse boxes, distribution switch boxes or electric boxes of refrigerators. The devices can be assembled side-by-side without clearance.
- Page 4 FRIGOLINK Product information Technical data Characteristic Data Supply voltage 230 V~, +10%/-15%, approx. 6VA Displays 1 x green light-emitting diode, operating voltage 2 x green light-emitting diodes, CAN bus data traffic CAN Tx, CAN Rx 1 x red light-emitting diode, flashing in case of fault Communication 3-wire CAN-bus interface with integrated power supply, electrically isolated...
