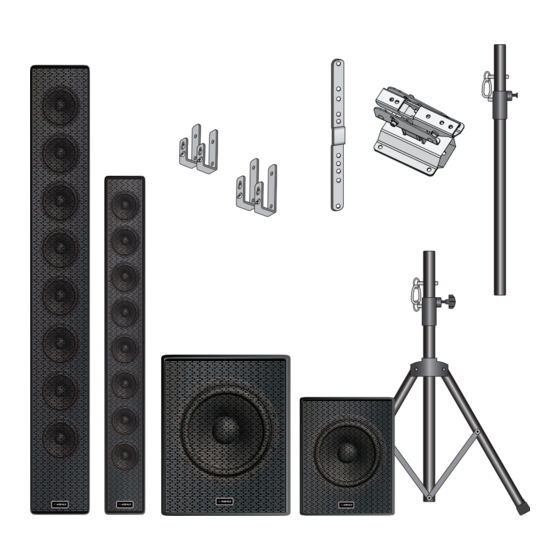

IS 2.8P
8 x 2-inch
column speakers
IS 3.8P
8 x 3-inch
column speakers
SP 12.1P
Twelve-inch subwoofer
SP 8.1P
Eight-inch subwoofer
IS-TR7B
Tripod mount for IS 2.8P or IS 3.8P
IS-PM1B
1 foot pole mount for SP subs
IS-PM6B
Pole mount for IS 2.8P or IS 3.8P + SP 12.1P
IS-TWM
Tilt wall mount for IS 2.8P or IS 3.8P
IS-FWM
Flush wall mount for IS 2.8P or IS 3.8P
IS-JP2
Joining bracket for two IS 2.8Ps or IS 3.8Ps
M10-SP
Fly bolts for SP 1.8P
Operating and
Installation Manual
1
Advertisement
Table of Contents
Related Manuals for Ashly IS 2.8P
Summary of Contents for Ashly IS 2.8P
- Page 1 Tripod mount for IS 2.8P or IS 3.8P IS-PM1B 1 foot pole mount for SP subs IS-PM6B Pole mount for IS 2.8P or IS 3.8P + SP 12.1P IS-TWM Tilt wall mount for IS 2.8P or IS 3.8P IS-FWM Flush wall mount for IS 2.8P or IS 3.8P IS-JP2 Joining bracket for two IS 2.8Ps or IS 3.8Ps...
- Page 2 Please use Ashly IS-TR7B tripod mount for To avoid clipping, always use a clip limiter correct loudspeaker polarity is necessary. IS 2.8P and IS 3.8P speakers. If mounting if available. Always observe specified high Check “+” and “−” polarity at both the the speakers on top of the SP 8.1P or...
-
Page 3: Table Of Contents
(and hopefully our Back Panel Connections matching subwoofer). We know that there are 8 x 2-inch (IS 2.8P) and 8 x 3-inch (IS 3.8P) matched, ■ many choices on the market today; so we have IS Series columns are designed for both... -
Page 4: System Configurations With Dual-Impedance Is Series
Neutrik® SpeakOn However, switching IS columns to 32 Ω lets another IS 3.8 connector for – one Ashly 4-channel amplifier drive up to 32 input from Power individual IS 2.8P or IS 3.8P speakers! Amplifer Neutrik® for output Ashly 2-ch. -
Page 5: Other Typical Configurations
2 channels @ 8 , 2 -channels Bridge Mode (sub) IS Series + SP Series Operating Manual – – – Ashly 2-ch. Power Amplifier Amp running at 4 per channel Other typical configurations Ashly 2-ch. Power Amplifier Shown below is a system with 16 IS columns... - Page 6 IS Series + SP Series Operating Manual Ashly 2-ch. Power Amplifier Ashly 4-ch. Power Amplifier Amp running at 4 per channel 2 channels @ 8 , 2 -channels Bridge Mode (sub) NOTE: If amp power exceeds more than 2 x...
-
Page 7: Ashly Aquacontrol (Via Aquacontrol™)
IS Series + SP Series Operating Manual Ashly AquaControl (via Universal AquaControl™) crossover and Protēa™ software presets Directivity- implementation for IS Speakers weighted, for use between FIR-corrected, optimized linear subwoofers linear phase Basic Ashly frequency and full-range response above loudspeaker... - Page 8 IS Series + SP Series Operating Manual Frequency IS 2.8P Specifications Response (On-Axis) Transducer 8 x 2-inch (51 mm)Neodymium Frequency Response 115 Hz – 20 kHz (–10dB limits Sensitivity (ref 2.83V) 88 dB 1, 2 Nominal Impedance 8 Ω / 32 Ω switchable...
- Page 9 IS Series + SP Series Operating Manual Impedance IS 2.8P Specifications Frequency [Hz] 8 ohm 32 ohm Beamwidth Frequency [Hz] Horizontal Vertical Directivity Index Frequency [Hz] Directivity...
- Page 10 IS Series + SP Series Operating Manual 0∞ 0∞ +30∞ -30∞ +30∞ -30∞ IS 2.8P Specifications +60∞ -60∞ +60∞ -60∞ Horizontal & Vertical Polars (1/3 octave) +90∞ -90∞ +90∞ -90∞ Horizontal +120∞ -120∞ +120∞ -120∞ +150∞ -150∞ +150∞ -150∞ +/-180∞...
-
Page 11: Is 2.8P Specifications
IS Series + SP Series Operating Manual 0∞ 0∞ +30∞ -30∞ +30∞ -30∞ IS 2.8P Specifications +60∞ -60∞ +60∞ -60∞ +90∞ -90∞ +90∞ -90∞ Vertical (1/3 octave) +120∞ -120∞ +120∞ -120∞ +150∞ -150∞ +150∞ -150∞ +/-180∞ +/-180∞ 400 Hz 630 Hz 3.15 kHz... -
Page 12: Is 3.8P Specifications
IS Series + SP Series Operating Manual Frequency IS 3.8P Specifications Response (On-Axis) 8 x 3-inch (76 mm) Transducer Neodymium Frequency Response 105 Hz – 19 kHz (–10dB limits Sensitivity (ref 2.83V) 95 dB 1, 2 Nominal Impedance 8 Ω / 32 Ω switchable Maximum Continuous SPL, @ 113 dB / 124 dB a MIV (continuous / peak) - Page 13 IS Series + SP Series Operating Manual Impedance IS 3.8P Specifications Frequency [Hz] 8 ohm 32 ohm Beamwidth Frequency [Hz] Horizontal Vertical Directivity Index Frequency [Hz] Directivity Index...
- Page 14 IS Series + SP Series Operating Manual 0∞ 0∞ +30∞ -30∞ +30∞ -30∞ IS 3.8P Specifications +60∞ -60∞ +60∞ -60∞ Horizontal & Vertical Polars (1/3 octave) +90∞ -90∞ +90∞ -90∞ Horizontal +120∞ -120∞ +120∞ -120∞ +150∞ -150∞ +150∞ -150∞ +/-180∞ +/-180∞...
- Page 15 IS Series + SP Series Operating Manual 0∞ 0∞ +30∞ -30∞ +30∞ -30∞ IS 3.8P Specifications +60∞ -60∞ +60∞ -60∞ +90∞ -90∞ +90∞ -90∞ Vertical +120∞ -120∞ +120∞ -120∞ +150∞ -150∞ +150∞ -150∞ +/-180∞ +/-180∞ 400 Hz 630 Hz 3.15 kHz 5 kHz 500 Hz 4 kHz...
-
Page 16: Sp 8.1P Specifications
IS Series + SP Series Operating Manual Frequency SP 8.1P Specifications Response Specifications SP 8.1P SP 12.1P (On-Axis) 1 x 8-inch (200 mm) 1 x 12-inch (300 mm) Transducer Ferrite woofer Ferrite woofer Frequency Response 43 Hz – 180 Hz 39 Hz –... -
Page 17: Sp 12.1P Specifications
IS Series + SP Series Operating Manual Frequency SP 12.1P Specifications Response (On-Axis) 1 x 12-inch (300 mm) Transducer Ferrite woofer Frequency Response 39 Hz – 180 Hz (–10dB limits) Sensitivity (ref 2.83V) 99 dB 1, 2 Nominal Impedance 8 Ω Maximum Continuous SPL, @ 120 dB / 128 dB a MIV (continuous / peak) -
Page 18: Is-Fw Joining Bracket Install
IS Series + SP Series Operating Manual IS-JP2 Joining Bracket Install IS-FW Joining Bracket Install NOTE: When joining two IS Easy peasy. Easy peasy. Easy peasy. Use correct fasteners for Use correct fasteners for Use correct fasteners for speakers invert the upper the wall type. -
Page 19: Is-Twm Tilt Bracket Install
IS Series + SP Series Operating Manual IS-TWM Tilt Bracket Install NOTE: Use correct fasteners for the wall type. Align to a wall stud 15˚ tilt when possible. And remember to securely 90˚ attach the safety cable. swivel Other IS Accessories IS-TP7B Tripod IS-PM6B IS-PM1B... - Page 20 847 Holt Road, Webster, NY USA US toll-free +1.585.872.0010 Fax +1.585.872.0739 Sales@Ashly.com www.Ashly.com Questions? Install problems? We think that Ashly Technical Support is the best in the pro audio business. Just call us (8 AM-5PM Eastern time zone) or e-mail us. US toll-free +1.585.872.0010...
