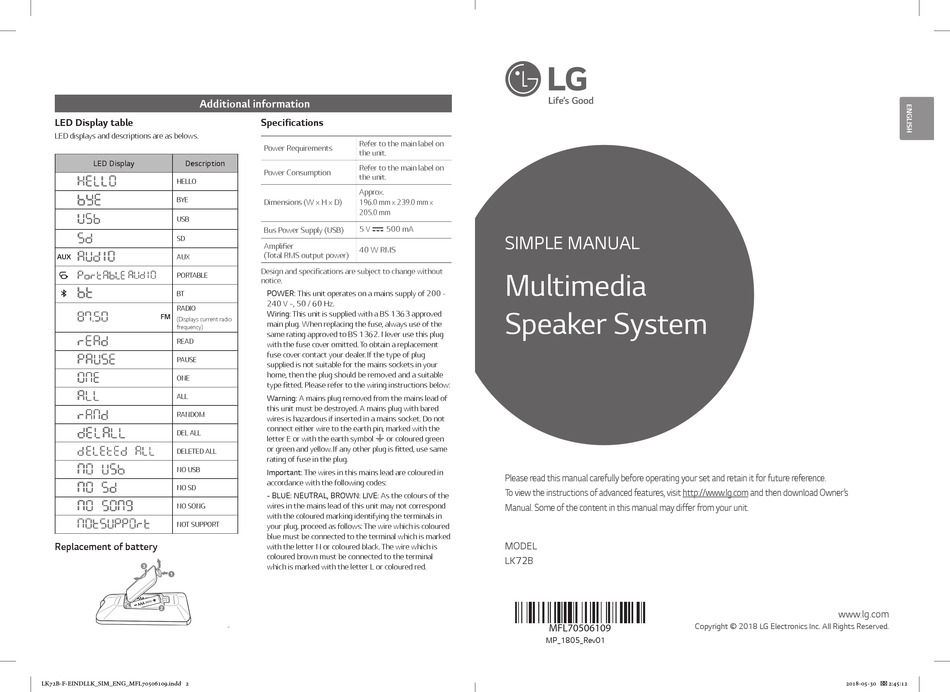

LG LK72B Simple Manual

Additional information

LED Display table

LED displays and descriptions are as belows.
LED Display Description
HELLO
BYE
USB
SD
AUX
PORTABLE
BT
RADIO
(Displays current radio
frequency)
READ
PAUSE
ONE
ALL
RANDOM
DEL ALL
DELETED ALL
NO USB
NO SD
NO SONG
NOT SUPPORT
Replacement of battery
LK72B-F-EINDLLK_SIM_ENG_MFL70506109.indd 2

Specifications

Refer to the main label on

Power Requirements

the unit.
Refer to the main label on

Power Consumption

the unit.
Approx.

Dimensions (W x H x D)

196.0 mm x 239.0 mm x
205.0 mm
5 V 0 500 mA

Bus Power Supply (USB)

Amplifier

40 W RMS
(Total RMS output power)
Design and specifications are subject to change without
notice.
POWER: This unit operates on a mains supply of 200 -
240 V ~, 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use of the
same rating approved to BS 1362. Never use this plug
with the fuse cover omitted. To obtain a replacement
fuse cover contact your dealer. If the type of plug
supplied is not suitable for the mains sockets in your
home, then the plug should be removed and a suitable
type fitted. Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead of
this unit must be destroyed. A mains plug with bared
wires is hazardous if inserted in a mains socket. Do not
connect either wire to the earth pin, marked with the
letter E or with the earth symbol 6 or coloured green
or green and yellow. If any other plug is fitted, use same
rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE: As the colours of the
wires in the mains lead of this unit may not correspond
with the coloured marking identifying the terminals in
your plug, proceed as follows: The wire which is coloured
blue must be connected to the terminal which is marked
with the letter N or coloured black. The wire which is
coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
-

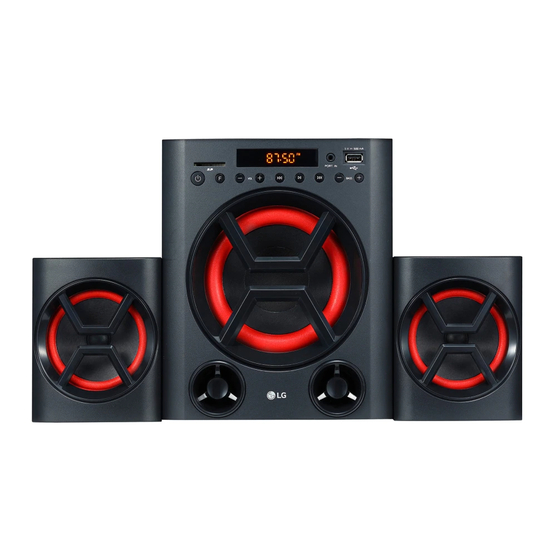

SIMPLE MANUAL
Multimedia
Speaker System
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download Owner' s
Manual. Some of the content in this manual may differ from your unit.
MODEL
LK72B
MFL70506109
MP_1805_Rev01
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
2018-05-30 2:45:12
