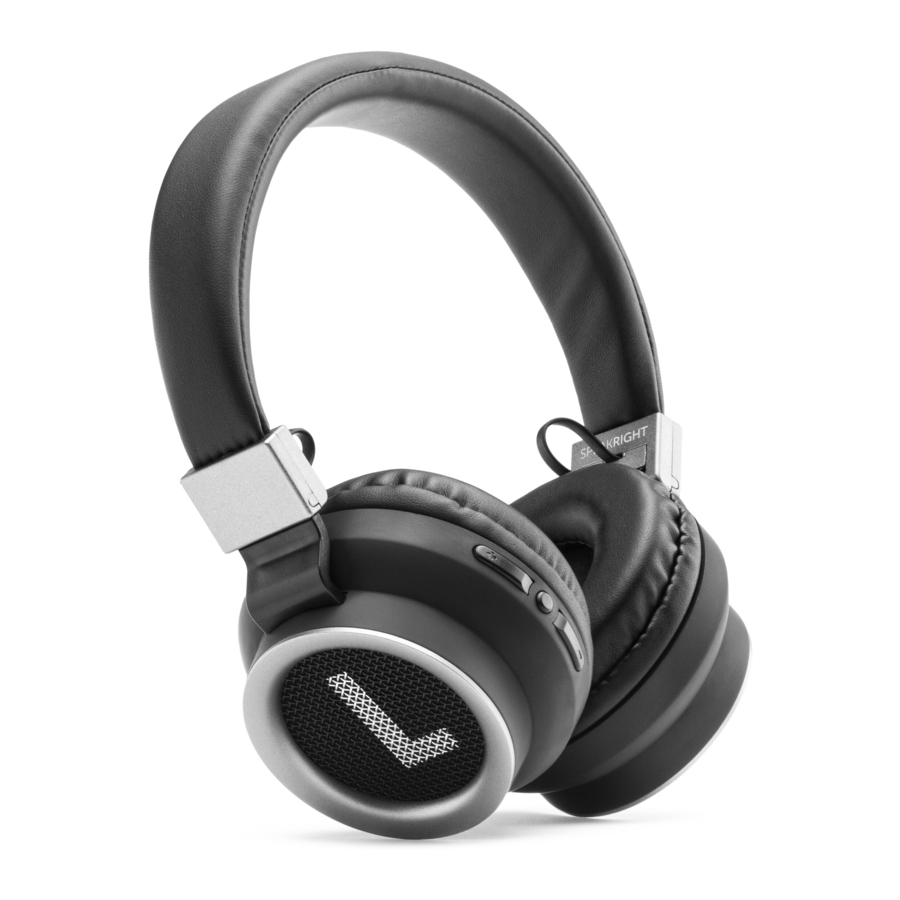

MELICONI MySound PEAK RIGHT BT - Headphones Manual

Overview

1. [VOLUME +] button / next track
2. [ON/OFF] button / [Play/pause] / Call control
3. [VOLUME -] button / previous track
4. Micro USB(USB) recharging socket
5. Stereo audio input 3.5 mm (AUX-IN)
6. Two-colour Red/Blue LED light
7. Microphone (MIC)

Safety warnings

• DO NOT WEAR THE HEADPHONES while the battery is charging.
• Do not expose the headphones to excessively high or low temperatures: avoid leaving them in the sun, or in places that are too hot or cold;
• Do not expose the headphones to water or other liquids: do not place them in water or expose them to drops, splashes or excessive humidity;
• Avoid damaging the headphones by dropping or knocking;
• If the headphones are not working, do not try to open or repair them. Contact a qualified assistance centre;
• The product contains lithium batteries that cannot be replaced by the user. If you need to dispose of the product, or when it reaches the end of its life, please refer to the "Disposing of the product" section in this manual;
• The product is compliant with the regulations in force governing human exposure to electromagnetics fields.

Hearing safety

To avoid possible damage to hearing, do not use the headphones at high volume for prolonged periods of time. In particular circumstances, turn down the volume or stop listening to ensure the sound does not distract you and/or cover the noises around you, thus creating dangerous situations.

Package contents

• SPEAK RIGHT stereo headphones
• Recharging cable (USB – micro USB)
• Audio jack cable, 3.5 mm
• User manual

Presentation

MySound SPEAK RIGHT wireless headphones can be paired with an audio device (SMARTPHONE / TABLET) provided it has a Bluetooth® interface.

Alternatively, they can be passively connected to a regular analogue audio output (3.5 mm jack) using the cable supplied.
The headphones can be used to:

• listen to music wireless;
• make hands-free calls with your smartphone;
• switch automatically to taking a call while you are listening to music;
• listen to music even when the battery has run down (by connecting it directly with an audio cable.

Recharging the battery

Do not use the headphones while the batteries are charging.
Fully charge the batteries before using the headphones (approx. 2h).

• Insert the micro USB connector of the cable supplied into the micro USB recharging [4];
• Insert the other end of the USB cable into any USB port available (for example a PC switched on or a regular USB phone charger);
• When the headphones are charging, the LED light [6] remains lit red;
• When the headphones are fully charged, the LED light [6] will turn off.

Pairing the headphones with a Bluetooth® device

1. Pairing is necessary the first time you use the SPEAK RIGHT headphones with a Bluetooth® device. Hold down the ON/ OFF [2] button for about 5 seconds until the LED light [6] flashes alternately blue/red, then release the button: the LED light will continue flashing;
2. Enable the Search for Bluetooth® Devices function on your device. (If you are using a smartphone, check it has the "visible to all" option);
3. Check the list of Bluetooth® devices found and look for "SPEAK RIGHT";
4. Follow the instructions on the device to pair it with the "SPEAK RIGHT" headphones (check the user manual of your device for further details if necessary);
5. If a password is requested, enter "0000" (4 zeros, not required for recent devices); Once paired, the headphones will automatically connect to the device if they are switched on and within the range of the device (approx. 10 metres).

Switching the headphones on and off

1. To switch on the headphones, pressing and hold down the ON/OFF button [2] for about 5 seconds until the blue LED light [6] comes on (you will hear the "POWER ON" tone from the headphones);
2. To switch off the headphones, pressing and hold down the ON/OFF button [2] for about 5 seconds until the LED light [6] goes off (you will hear the "POWER OFF" tone from the headphones).

Using the music and call commands

Volume control: in music or conversation mode, to turn the volume down, briefly press the "VOLUME –" [3] button; to turn the volume up, briefly press the "VOLUME +" [1] button (maximum volume is indicated by a high-pitched tone).
Changing track: in music mode, to move onto the next track, hold down the "VOLUME +" [1] button for 2 seconds; hold down the "VOLUME –" [3] button for 2 seconds to return to the previous track.
Pause / Play: While listening to music, press the ON/OFF [2] button briefly to pause or to replay the current track.
Answer/ end calls: Briefly press the ON/OFF button [2] once to answer an incoming call or to end the conversation.
Refuse a call: Hold down the ON/OFF button [2] for 2 seconds to refuse an incoming call.
To redial the last number called: quickly press the central button [2] twice to automatically redial the last number call on the phone connected to the headphones.
Virtual Assistant: press and hold down the central button [2] for about 2 seconds to call the Virtual Assistant on the phone connected ("Siri" for Apple and "Google Assistant" for Android.

Listening to music with 3.5 mm jack cable

Insert the audio cable into the headphone AUX-IN [5] socket to listen to music using the cable (also when the battery is run down).

When the audio cable is inserted into the AUX-IN socket, the headphones will switch off and disable all the functions.

Pairing with 2 Bluetooth devices at the same time

The SPEAK RIGHT headphones can be paired with both a SMARTPHONE and another Bluetooth® audio device (e.g. a TABLET) at the same time.

This function is useful, for example, to watch a video while staying connected to your smartphone so you can receive calls. Proceed as follows:

• First pair the headphones with your SMARTPHONE;
• Once pairing is complete, deactivate your SMARTPHONE's Bluetooth®;
• Switch on Bluetooth® on the second device you wish to pair (the headphones are already in pairing mode), and pair the second device;
• Switch the Bluetooth® of the SMARTPHONE back on, and manually connect the headphones by tapping on "SPEAK RIGHT" on the list of Bluetooth® devices.

LED light

The colour of the LED light [6] and how it is flashing provides a useful indication of the functioning of the headphones.

Technical features

*Note1: with battery fully charged, with Bluetooth® connection, playing continuously at 25°C at medium volume.
