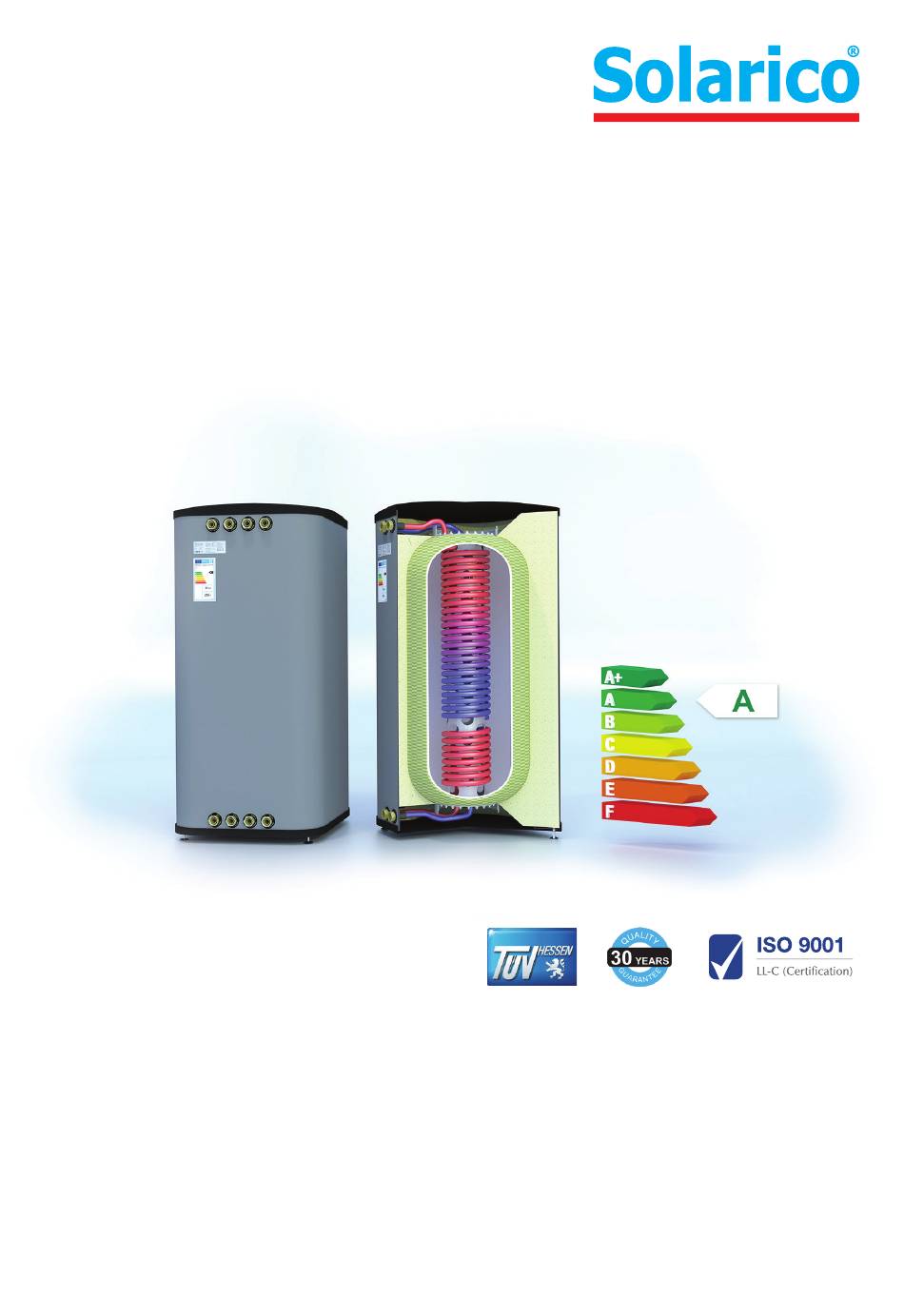

UniQube
Thermal Plastic - Composite
Water Heaters & Storage Tanks
Installation and Operation Manual
Ƚ Drain Back Tank SQ-BPSWEH DB
Ƚ Combined Storage Tank SQ-BPSW-6C
Ƚ Combined Storage Tank SQ-BPSW
Ƚ Combined Storage Tank SQ-BPSWEH
with electric heater back up
Ƚ Domestic Water Heater SQ-BPW HP-
Ready
Ƚ Domestic Water Heater SQ-BPW
Ƚ Domestic Water Heater SQ-BPWEH with
electric heater back up
Ƚ Solar Storage Tank SQ-BPS
Ƚ Separator Storage Tank SQ-BP
Ƚ Buffer Storage Tank SQ-B
1
Advertisement
Related Manuals for Solarico UniQube SQ-BPSW-6C
Summary of Contents for Solarico UniQube SQ-BPSW-6C
- Page 1 UniQube Thermal Plastic - Composite Water Heaters & Storage Tanks Installation and Operation Manual Ƚ Drain Back Tank SQ-BPSWEH DB Ƚ Domestic Water Heater SQ-BPW Ƚ Combined Storage Tank SQ-BPSW-6C Ƚ Domestic Water Heater SQ-BPWEH with Ƚ Combined Storage Tank SQ-BPSW electric heater back up Ƚ...
-
Page 2: Table Of Contents
CONTENTS Introduction............................3 General Informations..................4-8 Installation and assembly................9-13 Drawings and dimensions................14-29 Accessories ....................30-31 Warranty ..................... 32-34... -
Page 3: Introduction
INTRODUCTION Important Safety Related Symbols Safety-related information and instructions Dear customer, have been provided in this guide We strongly believe that the products bought and on the UniQube storage tank to warn any from us will contribute the comfort at your person(s) of potential hazards. -
Page 4: General Informations
GENERAL INFORMATION Models and Usage UniQube storage tanks are available as: • Drain Back Tank SQ-BPSWEH DB • Combined Storage Tank SQ-BPSW-6C • Combined Storage Tank SQ-BPSW • Combined Storage Tank SQ-BPSWEH with electric heater back up • Domestic Water Heater SQ-BPW HP-Ready •... - Page 5 Solarico recommends that pH value should lie between 8,2 and 10. Disclaimer Solarico is not liable for damage resulting from any but the device’s intended use. Solarico is not liable in case of: • Installing or operating the device or its components contrary to the instructions contained in this booklet.
- Page 6 GENERAL INFORMATION Safety instructions WARNING: When using electrical appliances, basic safety precautions to reduce the risk of fire, electric shock, or injury to persons should be followed, including: • This storage tank must be grounded. Connect only to properly grounded outlet.
- Page 7 GENERAL INFORMATION NOTE: Mixing valves are available for reducing point of use water temperature by mixing hot and cold water in branch water lines. Contact a licensed plumber or the local plumbing authority for further information. DANGER: Hotter water increases the potential for Hot Water SCALDS.
- Page 8 GENERAL INFORMATION Maintenance The functionality of pressure safety valves, that Solarico recommends to be installed , must be periodically tested. The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere.
-
Page 9: Installation And Assembly
INSTALLATION AND ASSEMBLY Instructions to installer During installation and operation, the country specific requirements and regulations must be observed: • Regulations and norms concerning the fitting of the installation with safety devices. • Safety during installation - personal protective equipment. WARNING: The preperation, installation and commissioning must be performed by an authorized professional installer / service. - Page 10 INSTALLATION AND ASSEMBLY Shipping and packaging We recommend delivering your storage tank directly to the installation site on the pallet and in the original packaging. During transport and installation, depending on the weight, appropriate safety equipment must be used in accordance with Directive 2006/42/EC.
- Page 11 INSTALLATION AND ASSEMBLY Assembly NOTE: Compliance with local accident prevention guidelines,legal requirements, direc- tives and guidelines is mandatory. WARNING: The preperation, installation and commissioning must be performed by an authorized professional installer / service. NOTE: It is our recommendation an expansion vessel to be installed on the domestic cold water supply line, between the tank connector “A”...
- Page 12 INSTALLATION AND ASSEMBLY Sensors assembly and wiring Sensors for automation of the heating system are not part of Solarico storage tanks. Depending on the type, Solarico storage tanks are provided by maximum 4 sensor sleeves. All sensors can be installed from the top side of the tank, under the outer top cover.
- Page 13 INSTALLATION AND ASSEMBLY The following table shows the sensor positions. SQ 440/800 Position BPSW S2 Solar sensor from above 1550 mm 1550 mm S3 DHW sensor from above 900 mm 900 mm S4 Heating sensor from above 140 mm 140 mm 140 mm 140 mm 140 mm...
-
Page 14: Drawings And Dimensions
DRAWINGS AND DIMENSIONS Important instructions for Drain Back model: • The solar circuit must be protected with 1,5 bar safety relief valve • Solar collectors must be installed by a minimum 2% or 2 cm/m inclination. • Piping of solar circuit must be installed by a minimum of 5% or 5 cm/m inclination. •... - Page 15 DRAWINGS AND DIMENSIONS 2 cm/m (2%) inclination 5 cm/m (5%) inclination solar in hot water out boiler/heat pump in cold water in 5 cm/m (5%) inclination heating out 1. Heat pump circulation pump 2. Boiler circulation pump 3. Radiators circulation pump 4.
- Page 16 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - COMBINED STORAGE TANK TYPE SQ-BPSW-6C D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 connections C,E,P,Q,I,J,T,U 5/4’’ 5/4’’ 5/4’’ H (height) (mm) 1570 2000 2000 a (width) (mm) max.
- Page 17 16. Filling shut-off device 17. Expansion vessel 18. Three way valve 19. Three way valve solar in heat pump in 20. UniQube SQ-BPSW-6C 21. Solar thermal collectors UniPlate 2.5 SB 22. Boiler fireplace solar out heat pump out 23. Boiler fireplace circulation pump...
- Page 18 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - COMBINED STORAGE TANK TYPE SQ-BPSW D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 connections C,E,I,J 5/4’’ 5/4’’ 5/4’’ H (height) (mm) 1570 2000 2000 a (width) (mm) max.
- Page 19 DRAWINGS AND DIMENSIONS hot water out cold water in heat pump in heating out Combined storage tank 1. Heat pump circulation pump 2. Boiler circulation pump 3. Radiators circulation pump 4. Floor heating circulation pump 5. Shut-off valve 6. Non-return valve 7.
- Page 20 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - DOMESTIC WATER HEATER TYPE SQ-BPW HP READY D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 H (height) (mm) 1570 2000 2000 connections C,E,I,J 5/4’’ 5/4’’ 5/4’’ a (width) (mm) max.
- Page 21 DRAWINGS AND DIMENSIONS hot water out cold water in heat pump in heating out Domestic water heater heating in 1. Heat pump circulation pump heat pump in 2. Boiler circulation pump 3. Radiators circulation pump 4. Floor heating circulation pump heat pump out 5.
- Page 22 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - DOMESTIC WATER HEATER TYPE SQ-BPW D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 H (height) (mm) 1570 2000 2000 connections C,E,I,J 5/4’’ 5/4’’ 5/4’’ a (width) (mm) max.
- Page 23 DRAWINGS AND DIMENSIONS hot water out cold water in heat pump in heating out Domestic water heater heating in 1. Heat pump circulation pump heat pump in 2. Boiler circulation pump 3. Radiators circulation pump 4. Floor heating circulation pump heat pump out 5.
- Page 24 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - SOLAR STORAGE TANK TYPE SQ-BPS D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 connections C,E,I,J 5/4’’ 5/4’’ 5/4’’ H (height) (mm) 1570 2000 2000 a (width) (mm) max.
- Page 25 DRAWINGS AND DIMENSIONS heating in heating out solar in solar out boiler/heat pump in boiler/heat pump out Solar Storage Tank 1. Heat pump circulation pump 2. Boiler circulation pump 3. Radiators circulation pump 4. Floor heating circulation pump 5. Shut-off valve 6.
- Page 26 DRAWINGS AND DIMENSIONS SEPARATOR STORAGE TANK UNIQUBE MODEL - TYPE SQ-BP D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 connections C,E,I,J 5/4’’ 5/4’’ 5/4’’ H (height) (mm) 1570 2000 2000 a (width) (mm) max.
- Page 27 DRAWINGS AND DIMENSIONS heating out heating in AB B boiler/heat pump in boiler/heat pump out Separator storage tank 1. Heat pump circulation pump 2. Boiler circulation pump 3. Radiators circulation pump 4. Floor heating circulation pump 5. Shut-off valve 6. Non-return valve 9.
- Page 28 DRAWINGS AND DIMENSIONS BUFFER STORAGE TANK UNIQUBE MODEL - TYPE SQ-B D (diameter) (mm) H1 (height) (mm) 1300 1730 1730 h (connectors) (mm) 1320 1750 1750 connections E,I 5/4’’ 5/4’’ 5/4’’ H (height) (mm) 1570 2000 2000 a (width) (mm) max.
- Page 29 DRAWINGS AND DIMENSIONS heating out boiler/heat pump in Buffer Storage Tank 1. Heat pump circulation pump 2. Boiler circulation pump 3. Radiators circulation pump 4. Floor heating circulation pump 5. Shut-off valve 6. Non-return valve 9. Compensator 10. Heat pump 11.
-
Page 30: Accessories
ACCESSORIES Stainless steel electric heating elements with integrated thermostat UniQube storage tanks can be equipped with top electric heaters on demand of the customer. Outlet connection of electric heating element is 6/4” Storage Tank Length L Cold Zone Power AC Voltage Capacity Connection 6/4”... - Page 31 ACCESSORIES Connection scheme for stainless steel electric heating elements with in- tegrated thermostat WARNING All installation operations, including manual adjustments, must be fulfilled by a qualified specialist following all safety conditions.
-
Page 32: Warranty
WARRANTY Manufacturing defects and materials guarantee ▪ Manufacturer expressly guarantees that the products it manufactures shall be free from defects in materi- als and workmanship which can prevent from normal operation under proper and normal use, installation and maintenance for the intended functions of the products, for a period set out in the warranty certificate of the respective water heater model you have bought. - Page 33 Technical Department. Euroterm d.o.o. , Lece Koteski 50, Industrial area Biljana, 7500 Prilep, R. North Macedonia, phone +389 48 419 415; fax +389 48 422 981 , e-mail: info@solarico.eu, web: www.solarico.eu...
- Page 34 WARRANTY Limitation of liability ▪ Manufacturer is not liable before the customer, neither directly nor indirectly, for any non-fulfillment or delay at applying the warranty obligations which might originate from external pressure of other circum- stances outside Manufacturer. ▪ The liability of Manufacturer under this Warranty Certificate is limited to the abovementioned obligations and up to the sum in accordance with the purchase receipt of the product to be claimed;...
- Page 35 NOTES...
- Page 36 Type Serial number Guarantee Tank: 30 years Heat Exchangers: 10 years Manufacturing date Signature Euroterm d.o.o. Lece Koteski 50 Industrial area - Biljana, Prilep Republic of North Macedonia tel. +389 48 419 415 fax +389 48 422 981 e-mail: info@solarico.eu...
