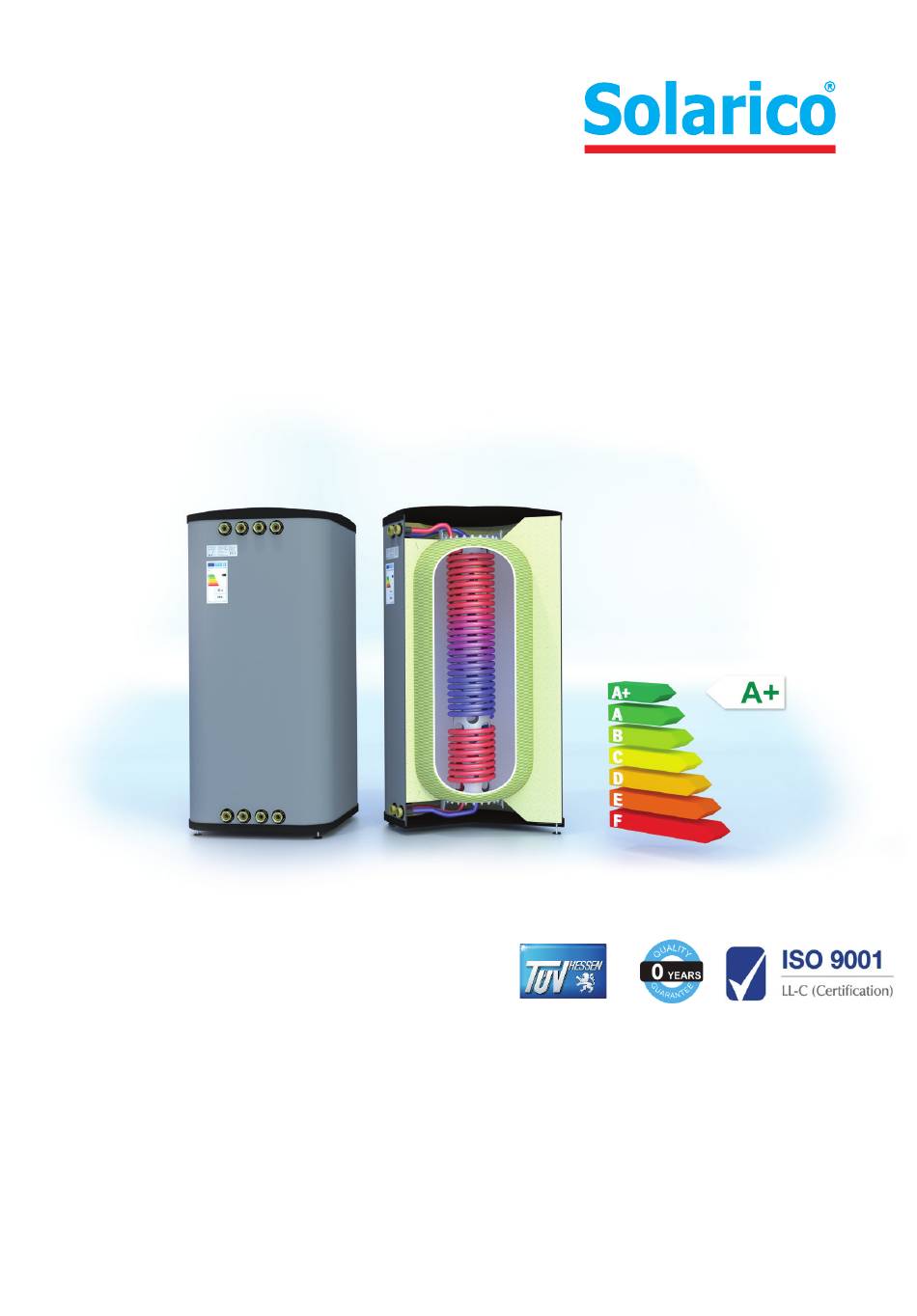

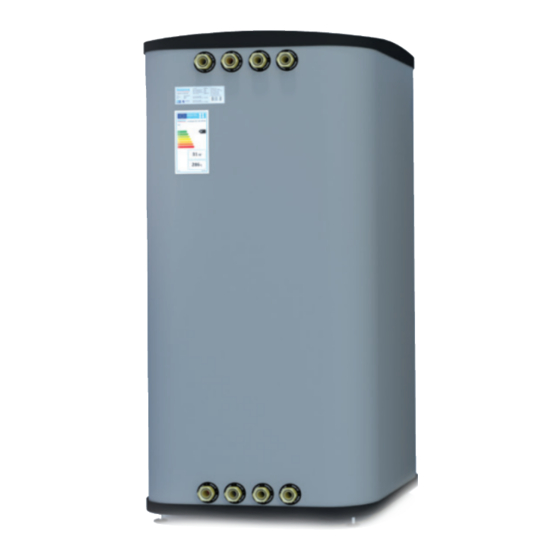

UniQube
Thermal Plastic - Composite
Water Heaters & Storage Tanks
Installation and Operation Manual
Ƚ Combined Storage Tank SQ-BPSW
Ƚ Combined Storage Tank SQ-BPSWEH
with electric heater back up
Ƚ Solar Storage Tank SQ-BPS
Ƚ Separator Storage Tank SQ-BP
3
Ƚ Domestic Water Heater SQ-BPW
Ƚ Domestic Water Heater SQ-BPWEH
with electric heater back up
Ƚ Buffer Storage Tank SQ-B
1
Advertisement
Related Manuals for Solarico UniQube SQ-BPSW Series
Summary of Contents for Solarico UniQube SQ-BPSW Series
- Page 1 UniQube Thermal Plastic - Composite Water Heaters & Storage Tanks Installation and Operation Manual Ƚ Combined Storage Tank SQ-BPSW Ƚ Domestic Water Heater SQ-BPW Ƚ Combined Storage Tank SQ-BPSWEH Ƚ Domestic Water Heater SQ-BPWEH with electric heater back up with electric heater back up Ƚ...
-
Page 2: Table Of Contents
CONTENTS Introduction............................3 General Informations..................4-8 Installation and assembly................9-13 Drawings and dimensions................14-23 Accessories ....................24-25 Warranty ..................... 26-28... -
Page 3: Introduction
INTRODUCTION Important Safety Related Symbols Safety-related information and instructions Dear customer, have been provided in this guide We strongly believe that the products bought and on the UniQube storage tank to warn any from us will contribute the comfort at your person(s) of potential hazards. -
Page 4: General Informations
GENERAL INFORMATION Models and Usage UniQube storage tanks are available as: • Buffer Storage Tank SQ-B • Separator Storage Tank SQ-BP • Solar Storage Tank SQ-BPS • Domestic Water Heater Storage Tank SQ-BPW • Combined Storage Tank SQ-BPSW • Combined Storage Tank SQ-BPSW with top electric heater UniQube storage tanks are intended to be used in central hot water heating systems and solar thermal systems. - Page 5 Solarico recommends that pH value should lie between 8,2 and 10. Disclaimer Solarico is not liable for damage resulting from any but the device’s intended use. Solarico is not liable in case of: • Installing or operating the device or its components contrary to the instructions contained in this booklet.
- Page 6 GENERAL INFORMATION Safety instructions WARNING: When using electrical appliances, basic safety precautions to reduce the risk of fire, electric shock, or injury to persons should be followed, including: • This storage tank must be grounded. Connect only to properly grounded outlet.
- Page 7 GENERAL INFORMATION NOTE: Mixing valves are available for reducing point of use water temperature by mixing hot and cold water in branch water lines. Contact a licensed plumber or the local plumbing authority for further information. DANGER: Hotter water increases the potential for Water temperature over 51°C can Hot Water SCALDS.
- Page 8 GENERAL INFORMATION Maintenance The functionality of pressure safety valves, that Solarico recommends to be installed , must be periodically tested. There is no need UniQube storage tanks to be maintained due to its corrosion resistant materials. Routine Preventive Maintenance Properly maintained, your water heater will provide years of dependable trouble-free service.
-
Page 9: Installation And Assembly
INSTALLATION AND ASSEMBLY Instructions to installer During installation and operation, the country specific requirements and regulations must be observed: • Regulations and norms concerning the fitting of the installation with safety devices. • Safety during installation - personal protective equipment. WARNING: The preperation, installation and commissioning must be performed by an authorized professional installer / service. - Page 10 INSTALLATION AND ASSEMBLY Shipping and packaging We recommend delivering your storage tank directly to the installation site on the pallet and in the original packaging. During transport and installation, depending on the weight, appropriate safety equipment must be used in accordance with Directive 2006/42/EC.
- Page 11 INSTALLATION AND ASSEMBLY Assembly NOTE: Compliance with local accident prevention guidelines,legal requirements, direc- tives and guidelines is mandatory. WARNING: The preperation, installation and commissioning must be performed by an authorized professional installer / service. NOTE: It is our recommendation an expansion vessel to be installed on the domestic cold water supply line, between the tank connector “A”...
- Page 12 INSTALLATION AND ASSEMBLY Sensors assembly and wiring Sensors for automation of the heating system are not part of UniQube storage tanks. Depending on the type, UniQube storage tanks are provided by maximum 4 sensor sleeves. All sensors can be installed from the top side of the tank, under the outer top cover. 1.
- Page 13 INSTALLATION AND ASSEMBLY The following table shows the sensor positions. SQ 440 Position SQ-B SQ-BP SQ-BPS SQ-BPW BPSW Domestic water sensor 1150 1150 from above Heating sensor 1350 1350 1350 1350 from above Solar sensor 1550 1550 from above Electric thermostat from above 100 mm 100 mm...
-
Page 14: Drawings And Dimensions
DRAWINGS AND DIMENSIONS A - Cold water in B - Hot water out C - Heating in E - Heating out F - Solar in G - Solar out I - Boiler in J - Boiler out S2 - Solar temperature sen- S3 - Heating temperature Ø... - Page 15 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - COMBINED STORAGE TANK TYPE SQ-BPSW D (diameter) (mm) H1 (height) (mm) 1300 1730 h (connectors) (mm) 1320 1750 H (height) (mm) 1570 2000 a (width) (mm) max. working temp. max. working pressure (bar) max. test pressure (bar) Net tank capacity (litres)
- Page 16 DRAWINGS AND DIMENSIONS A - Cold water in B - Hot water out C - Heating in E - Heating out I - Boiler in J - Boiler out S3 - Heating temperature sensor S4 - DHW temperature sensor Ø Ø...
- Page 17 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - DOMESTIC WATER HEATER TYPE SQ-BPW D (diameter) (mm) H1 (height) (mm) 1300 1730 h (connectors) (mm) 1320 1750 H (height) (mm) 1570 2000 a (width) (mm) max. working temp. max. working pressure (bar) max. test pressure (bar) Net tank capacity (litres)
- Page 18 DRAWINGS AND DIMENSIONS C - Heating in E - Heating out F - Solar in G - Solar out I - Boiler in J - Boiler out S2 - Solar sensor S3 - Heating sensor Ø CAUTION: The following schemes are purely illustrative and does not make any claims on its complete- ness in every aspect! Realization of...
- Page 19 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - SOLAR STORAGE TANK TYPE SQ-BPS D (diameter) (mm) H1 (height) (mm) 1300 1730 h (connectors) (mm) 1320 1750 H (height) (mm) 1570 2000 a (width) (mm) max. working temp. max. working pressure (bar) max. test pressure (bar) Net tank capacity (litres)
- Page 20 DRAWINGS AND DIMENSIONS C - Heating in E - Heating out I - Boiler in J - Boiler out S3 - Heating sensor Ø CAUTION: The following schemes are purely illustrative and does not make any claims on its complete- ness in every aspect! Realization of the installation should be done in accordance with the local standards...
- Page 21 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - SEPARATOR STORAGE TANK TYPE SQ-BP D (diameter) (mm) H1 (height) (mm) 1300 1730 h (connectors) (mm) 1320 1750 H (height) (mm) 1570 2000 a (width) (mm) max. working temp. max. working pressure (bar) max. test pressure (bar) Net tank capacity (litres)
- Page 22 DRAWINGS AND DIMENSIONS E - Heating out I - Boiler in Ø CAUTION: The following schemes are purely illustrative and does not make any claims on its complete- ness in every aspect! Realization of the installation should be done in accordance with the local standards and provisions.
- Page 23 DRAWINGS AND DIMENSIONS UNIQUBE MODEL - BUFFER STORAGE TANK TYPE SQ-B D (diameter) (mm) H1 (height) (mm) 1300 1730 h (connectors) (mm) 1470 1900 H (height) (mm) 1570 2000 a (width) (mm) max. working temp. max. working pressure (bar) max. test pressure (bar) Net tank capacity (litres)
-
Page 24: Accessories
ACCESSORIES Stainless steel electric heating elements with integrated thermostat UniQube storage tanks can be equipped with top electric heaters on demand of the customer. Outlet connection of electric heating element is 6/4” Storage Length L, Cold Zone, AC Voltage, Tank Connection Power, W Capacity, L... - Page 25 ACCESSORIES Connection scheme for stainless steel electric heating elements with in- tegrated thermostat WARNING All installation operations, including manual adjustments, must be fulfilled by a qualified specialist following all safety conditions.
-
Page 26: Warranty
WARRANTY Manufacturing defects and materials guarantee ▪ Manufacturer expressly guarantees that the products it manufactures shall be free from defects in materi- als and workmanship which can prevent from normal operation under proper and normal use, installation and maintenance for the intended functions of the products, for a period set out in the warranty certificate of the respective water heater model you have bought. - Page 27 Technical Department. Euroterm d.o.o. , Lece Koteski 50, Industrial area Biljana, 7500 Prilep, R. Macedonia, phone +389 48 419 415; fax +389 48 422 981 , e-mail: info@solarico.eu, web: www.solarico.eu...
- Page 28 WARRANTY Limitation of liability ▪ Manufacturer is not liable before the customer, neither directly nor indirectly, for any non-fulfillment or delay at applying the warranty obligations which might originate from external pressure of other circum- stances outside Manufacturer. ▪ The liability of Manufacturer under this Warranty Certificate is limited to the abovementioned obligations and up to the sum in accordance with the purchase receipt of the product to be claimed;...
- Page 29 NOTES...
- Page 30 NOTES...
- Page 31 NOTES...
- Page 32 GUARANTEE Type Serial number Guarantee Tank: 30 years Heat Exchangers: 10 years Manufacturing date Signature Euroterm d.o.o. Lece Koteski 50 Industrial area - Biljana Prilep, R. Macedonia tel. +389 48 419 415 fax +389 48 422 981 e-mail: info@solarico.eu...
