Patriot Lighting 346-0862 Quick Start Manual

4
ASSEMBLY INSTRUCTIONS (continued)
See table below for some options.
Pattern Table
Brightness+ Brightness- OFF
Static red Static green Static blue
Static rose Static light green Static sapphire blue
Static orange Static green blue Static violet and grey 3 colors gradual
Static light Static brown and
Static sky blue
yellow purple
Static yellow Static cyan
Static purple
CARE AND MAINTENANCE
• To clean, turn off and wipe with a damp, non-abrasive cloth.
• When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage
to finish.
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
5-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
light fixture fails due to a defect in material and workmanship within five (5) years
from the date of purchase, simply bring this light fixture with your original sales
receipt back to your nearest MENARDS
LIGHTING agrees to have the lighting fixture replaced with the same or similar
®
PATRIOT LIGHTING product free of charge, within the stated warranty period,
®
when returned by the original purchaser with original sales receipt. This warranty:
(1) excludes expendable parts including but not limited to light bulbs; (2) does not
cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you
specific legal rights and you may have other rights, which vary from state to state.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
ON
Static white
3 colors jump
7 colors gradual
7 colors jump
retail store. At its discretion, PATRIOT
®
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
PACKAGE CONTENTS
®
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
CC
SKU Number: 346-0862

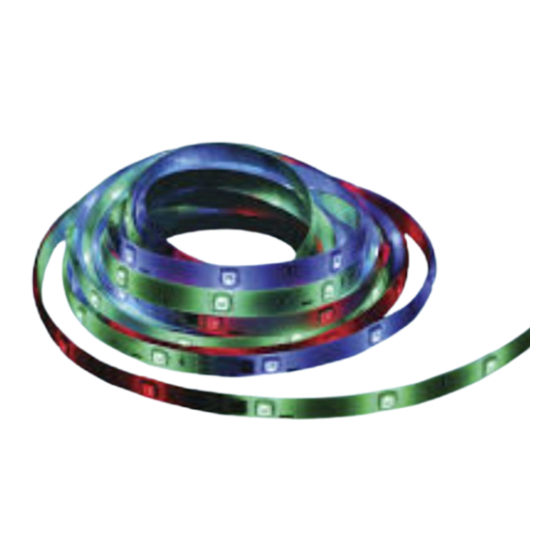

Indoor/ Outdoor Light Fixture
DD
Transformer
(60" cord)
x 1
Dimmer
EE
x 1
Remote control
FF
x 1
1
Connector with cord
x 1
Mounting clip
x 16
Screw
x 34
10-21
