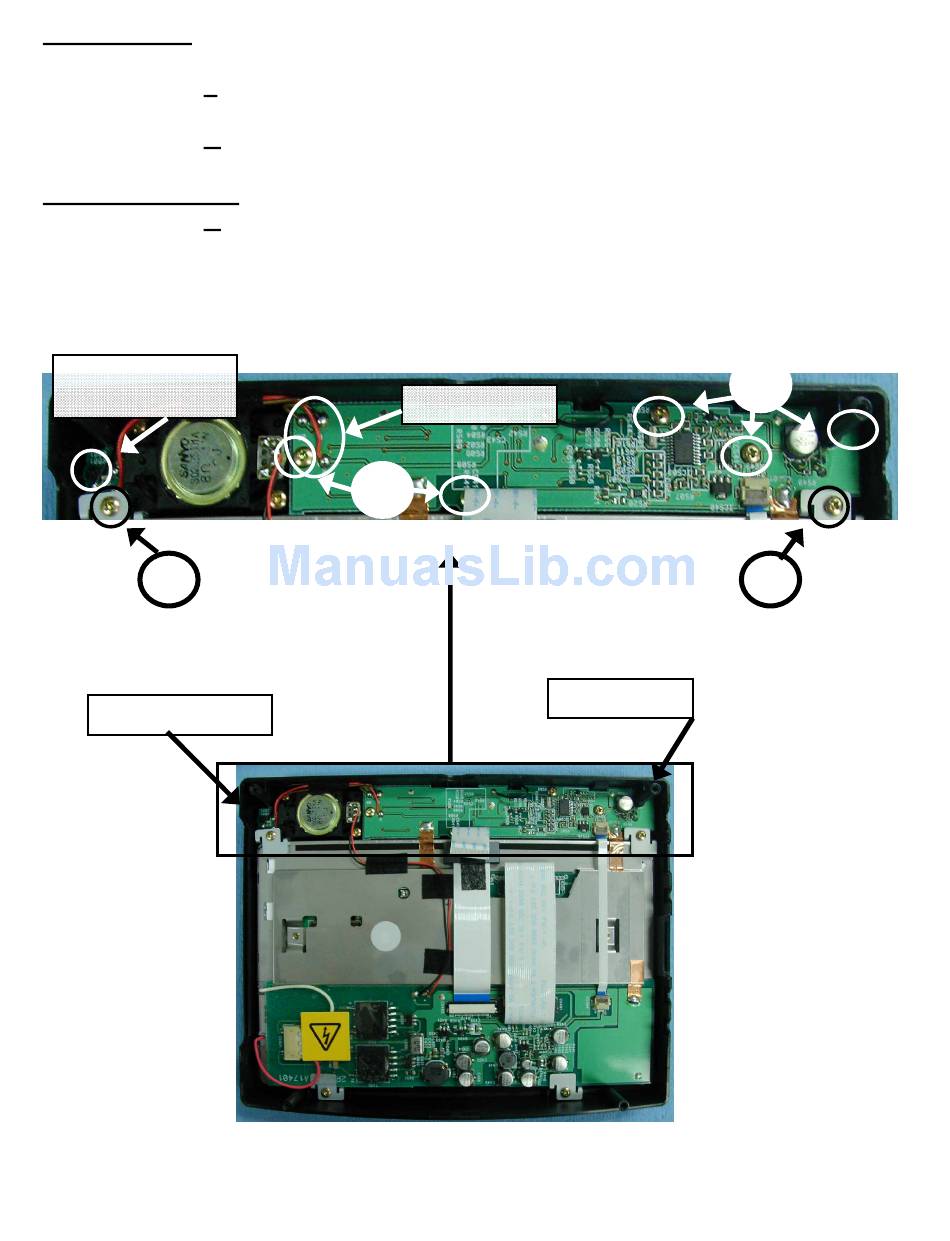

PCB-W KEY
Step 1 Remove Button Scroll (JOYSTICK)
Step 2 Remove 2 F screws
Step 3 De-Solder 3 LEAD WIRES
Step 4 Remove 5 G screws (PCB-W KEY can now be removed)
PCB-W SENSOR
Step 1 Remove 1 H screw (PCB-W SENSOR can now be removed)
PCB-W SENSOR-
(H) screw
F
PCB-W SENSOR
LEAD WIRE
G
PCB-W KEY
Page 6
G
F
