CONTENTS
1. INTRODUCTION ............................................... 2
A. Reason for Reissue ........................................ 2
B. Description ...................................................... 2
C. Features.......................................................... 2
2. APPLICATIONS ................................................ 4
3. FUNCTIONAL DESCRIPTION .......................... 5
A. OC3 Circuitry .................................................. 5
B. DS1 Circuitry................................................... 5
C. Local Alarms ................................................... 6
4. INSTALLATION ................................................. 8
A. Controls and Indicators ................................... 9
B. Select and Install Mounting .......................... 12
C. Make Power and Alarm Connections ........... 13
D. Install Transceiver and Module ..................... 14
E. Make OC3 Connections ............................... 15
F. Make DS1 Connections ................................ 16
5. CRAFT PORT .................................................. 17
A. Access .......................................................... 17
B. Configure Operating Mode ........................... 19
C. Provisioning .................................................. 20
D. Performance Monitoring ............................... 23
E. Alarms........................................................... 25
F. Manual Loopbacks ....................................... 26
6. DCC TL1 SUPPORT ....................................... 27
7. SPECIFICATIONS ........................................... 27
8. MAINTENANCE .............................................. 29
9. CUSTOMER SERVICE ................................... 30
Trademarks used in this manual:
AMP and CHAMP are trademarks of AMP Incorporated.
CLEI is a trademark of Telcordia Technologies, Incorporated.
ETL Listed is a registered certification mark of Intertek Testing Services NA, Incorporated.
Microsoft and Windows are registered trademarks of Microsoft, Incorporated.
Pulsecom is a registered trademark of Hubbell Incorporated.
The Pulsecom Fiber Backhaul logo is a trademark of Pulse Communications, Incorporated.
©2011 Pulse Communications Incorporated. All rights reserved.
OC3 TO DS1 MULTIPLEXER
O3-4D1B
Multiple Patents Pending
PAGE
1
Practice Section 1659
Issue 3, January 2011
O3-4D1B
ENABLE
1
2
3
4
UNIT
OC3
DS1
DS1
CRAFT
RS-232
R
X
T
X

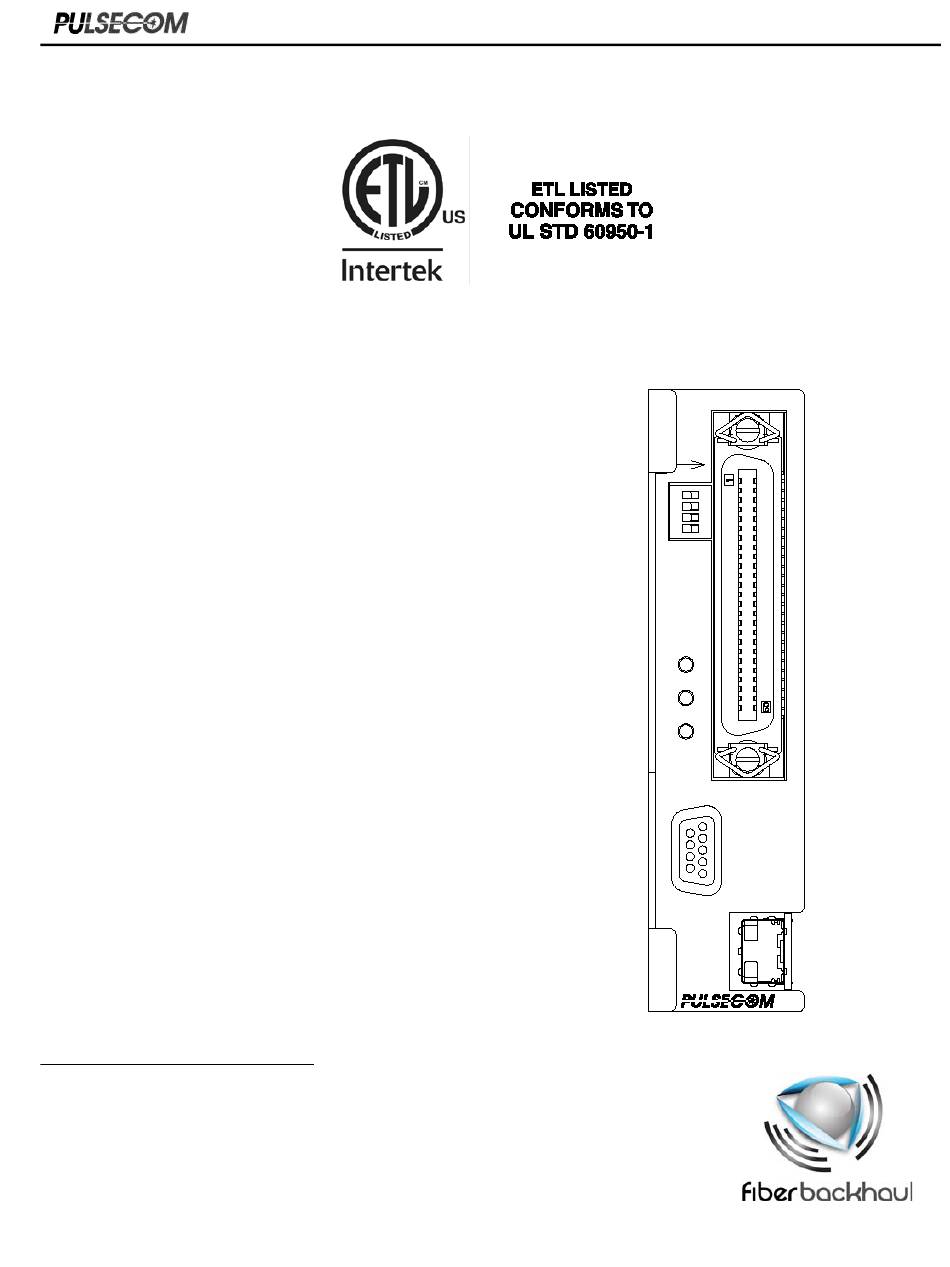

Figure 1. O3-4D1B Unit
Advertisement
Table of Contents
Related Manuals for PULSECOM O3-4D1B
Summary of Contents for PULSECOM O3-4D1B
-
Page 1: Table Of Contents
ETL Listed is a registered certification mark of Intertek Testing Services NA, Incorporated. Microsoft and Windows are registered trademarks of Microsoft, Incorporated. Pulsecom is a registered trademark of Hubbell Incorporated. The Pulsecom Fiber Backhaul logo is a trademark of Pulse Communications, Incorporated. ©2011 Pulse Communications Incorporated. All rights reserved. -
Page 2: Introduction
(SONET) multiplexers as well as far-end O3-4D1 Series units. The O3-4D1B operates from +24 VDC or −24 VDC as well as from −48 VDC and will enter loopback after an enable signal has been present for 5 seconds. - Page 3 O3-4D1B 1659, Issue 3, January 2011 Table 1. O3-4D1B Board and OC3 Transceiver Ordering Codes Link Maximum Maximum CLEI™ Wave- Loss Output Input Number of Type Ordering Code Code length Budget Level Level Fibers of Fiber A. Board (Without Transceiver)
-
Page 4: Applications
Fiber attenuators not required to perform an optical loopback with a fiber jumper when using the SFP-OC3-1310-19 transceiver • Side-by-side mounting compatible with Pulsecom O3D3 and G2 units to support DS1, DS3, and Gigabit Ethernet (GigE) services • Craft port display of optical transceiver wavelength, receive power level, and link loss budget •... -
Page 5: Functional Description
655 feet as well as 0, 7.5, or 15 dB. The O3-4D1B detects loss of signal, loss of frame, cyclic redundancy check errors, frame errors, all ones (alarm indication signal), and line code violations for each DS1 on the drop side. -
Page 6: Local Alarms
O3-4D1B 1659, Issue 3, January 2011 Figure 3. O3-4D1B Functional Block Diagram C. Local Alarms Tables 2 and 3 provide alarm information for the O3-4D1B. Table 2. O3-4D1B Alarm Contact Definitions Lead Alarm Indication Contact closure between these leads indicates OC3 alarm... - Page 7 AIS toward the OC3 or to implement a terminal loopback in which the received DS1 data is looped back toward the OC3. If the AIS option is selected, AIS-CI will be sent only when the O3-4D1B is provisioned as a Remote unit and the AIS-CI option is enabled from the DS1 configuration menu.
-
Page 8: Installation
4. INSTALLATION DANGER The O3-4D1B employs Class 1 laser products. To avoid injury, do not look directly into the optical transceiver or into the fiber cable. Note that the light is invisible; the optical signal cannot be detected by the eye. -
Page 9: Controls And Indicators
A. Controls and Indicators Front Panel The front panel of the O3-4D1B provides connection to the OC3 and DS1 signals as well as the craft port. LEDs show OC3, DS1, and UNIT status. A 4-position DIP switch enables or disables each DS1. Front-panel controls and indicators are shown in Figure 1 and described in Table 4. - Page 10 Bulkhead Cable Kit - If desired, order CPM-4DS1X for use in the 3O3D3-CPL2C locking wall-mounted enclosure. Each kit provides four bulkhead-mounted RJ48C DS1 jacks and a cable that connects these jacks to the O3-4D1B front-panel connector. See Practice Section 1633 for wiring information.
- Page 11 O3-4D1B 1659, Issue 3, January 2011 Backplane Backplane pinouts for alarm contacts, power, and ground (GND) are listed in Table 6. Table 6. Backplane Pin Assignments Function Description – – – – – – – – DS1 Alarm Contact Dry Contact –...
-
Page 12: Select And Install Mounting
Note that the initial position of S2-1 is not important; the O3-4D1B detects a change in the position of S2-1 during power-up as an instruction to restore parameters to their default values. -
Page 13: Make Power And Alarm Connections
NOTE 2: The 3O3D3-CPL2A and 3O3D3-CPL2B are manufacture discontinued. C. Make Power and Alarm Connections Each O3-4D1B module has two DC contact closures available to identify failures. Follow the steps in Procedure 1 to make power and optional alarm connections. -
Page 14: Install Transceiver And Module
O3-4D1B 1659, Issue 3, January 2011 D. Install Transceiver and Module Follow the steps in Procedure 2 to install the O3-4D1B transceiver and module. Procedure 2. Installing the O3-4D1B Transceiver and Module STEP ACTION Carefully plug the desired SFP transceiver (see Table 1) into its front-panel socket. -
Page 15: Make Oc3 Connections
O3-4D1B 1659, Issue 3, January 2011 E. Make OC3 Connections O3-4D1B modules have LC optical connectors. Follow the steps in Procedure 3 to make OC3 connections. DANGER Units employ Class 1 laser products. To avoid injury, do not look directly into the optical transceiver or into the fiber cable. -
Page 16: Make Ds1 Connections
1659, Issue 3, January 2011 F. Make DS1 Connections The O3-4D1B module has a female AMP CHAMP front-panel connector (designed to be used with a bail-lock connector hood) that follows ANSI T1.403 RJ48H wiring standards. Pulsecom recommends using one of the following items (ordered separately): •... -
Page 17: Craft Port
O3-4D1B 1659, Issue 3, January 2011 5. CRAFT PORT Access The O3-4D1B is equipped with a CRAFT RS-232 port with VT-100 emulation. See Figure 5 for port pin assignments. Figure 5. CRAFT RS-232 Port Pin Assignments System Requirements The following items are required for craft access: •... - Page 18 HyperTerminal as your default telnet program. At the ‘Name:’ prompt in the Connection Description dialog box, type O3-4D1B. Then select an icon that you wish to represent the O3-4D1B to simplify future access. Next click the OK button to display the Connect To dialog box.
-
Page 19: Configure Operating Mode
O3-4D1B 1659, Issue 3, January 2011 Login If necessary, press the ENTER key to view the Login screen. The system asks for a user name and password for authentication. Follow the steps in Procedure 6. Procedure 6. Logging In STEP ACTION At the ‘User Name:’... -
Page 20: Provisioning
(NOC) over a TL1 DCC link with a higher-order SONET multiplexer. Although the O3-4D1B (when provisioned for RT operation) has a default TID of PULSECOM2, a unique TID should be assigned to each O3-4D1B when these units are used in the integrated mode as part of a larger network. - Page 21 1, 2, 4, 8, 60 minutes, or No TimeOut 60 minutes* Response to DS1 Loss of Send AIS to OC3 (i.e., toward the CO when the O3-4D1B is at the sub- Send AIS (or Signal scriber site) or initiate loopback...
- Page 22 Figure 6. Typical CO and Remote Provisioning Figure 7. DS1 Remote Loopbacks The O3-4D1B can recognize in-band and ESF data link loopback codes as shown in Figure 7. Units enter loopback after the enable code has been present for 5 seconds.
-
Page 23: Performance Monitoring
O3-4D1B 1659, Issue 3, January 2011 To respond to DS1 loopbacks, the O3-4D1B must be provisioned as an RT (subscriber- side) unit (default), have its loopbacks enabled (also default), and be provisioned for either ESF (default) or SF operation. When provisioned for ESF operation, the O3-4D1B will respond to either in-band or ESF data link (out-of-band) loopback codes;... - Page 24 O3-4D1B 1659, Issue 3, January 2011 Table 10. OC3 Performance Monitoring Potential Severity Parameter Description Corrective Action CV-S Coding Violation—Section CV-L Coding Violation—Line CV-P Coding Violation—Path SEFS-S Severely Errored Framing Seconds—Section SES-S Severely Errored Seconds—Section Check that fiber connections are SES-L Severely Errored Seconds—Line...
-
Page 25: Alarms
O3-4D1B 1659, Issue 3, January 2011 E. Alarms Tables 12 through 14 list OC3, DS1, and unit alarm messages that can be generated by the O3-4D1B and accessed via the Fault Manager sub-menu. Table 12. OC3 Alarm Messages Potential Severity... -
Page 26: Manual Loopbacks
MISSING OPTICS OC3 optics module is missing. Install an appropriate SFP transceiver from Table 1. NON- PULSECOM SFP module installed is not a Pulsecom- Replace the transceiver with an appro- OPTICS Minor approved device. priate SFP transceiver from Table 1. -
Page 27: Dcc Tl1 Support
AMI or B8ZS; and SF, ESF, or UNF framing. Refer to Practice Section 1639 for a complete description of the TL1 commands and responses supported by the O3-4D1B. 7. SPECIFICATIONS Table 15 lists the electrical and physical characteristics of the unit. - Page 28 O3-4D1B 1659, Issue 3, January 2011 Table 15. O3-4D1B Specifications (Continued) Description Specification C. DS1 Interface Line Rate 1.544 Mb/s, ± 32 ppm Line Code AMI or B8ZS selectable Line Impedance 100 ohms ± 5%, balanced Line Rate Tolerance 1.544 Mb/s, ± 130 ppm...
-
Page 29: Maintenance
In case of equipment malfunction, check the front-panel indicators. Reference Table 4. Since O3-4D1B and O3-4D1L3B units are used to extend DS1 circuits, they pass on network timing. As a result, standard T1 test sets might need to be provisioned for INTERNAL timing rather than Loop timing, as shown in Figure 8. -
Page 30: Customer Service
1659, Issue 3, January 2011 9. CUSTOMER SERVICE Direct questions concerning the operation of the unit to Pulsecom Technical Support. If the unit is defective, limit field repair to replacement of the plug-in module or SFP transceiver. Obtain repair services by returning the defective unit to the Pulsecom Repair Department, 400 E.
