CONTENTS
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . 2
A. Reason for Reissue . . . . . . . . . . . . . . . . . . 2
B. Description . . . . . . . . . . . . . . . . . . . . . . . . . 2
C. Features. . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . 4
3. FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . 5
A. OC3 Circuitry . . . . . . . . . . . . . . . . . . . . . . . 5
B. DS1 Circuitry . . . . . . . . . . . . . . . . . . . . . . . 6
C. Local Alarms . . . . . . . . . . . . . . . . . . . . . . . 6
4. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . 9
A. Controls and Indicators . . . . . . . . . . . . . . 10
B. Select and Install Mounting . . . . . . . . . . . 13
E. Make OC3 Connections. . . . . . . . . . . . . . 16
F. Make DS1 Connections . . . . . . . . . . . . . . 17
5. CRAFT PORT . . . . . . . . . . . . . . . . . . . . . . . . 18
A. Access . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
B. Provisioning . . . . . . . . . . . . . . . . . . . . . . . 20
C. Performance Monitoring . . . . . . . . . . . . . 22
D. Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
E. Manual Loopbacks. . . . . . . . . . . . . . . . . . 26
6. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . 26
7. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . 27
8. CUSTOMER SERVICE . . . . . . . . . . . . . . . . . 28
Trademarks used in this manual:
AMP and CHAMP are trademarks of AMP Inc.
CLEI is a trademark of Telcordia Technologies, Inc.
ETL Listed is a registered certification mark of Intertek Testing Services NA, Inc.
Microsoft and Windows are registered trademarks of Microsoft, Inc.
Pulsecom is a registered trademark of Hubbell Inc.
©2008 Pulse Communications Inc. All rights reserved.
OC3 TO DS1 MULTIPLEXER
O3-4D1A
ETL LISTED TELEPHONE EQUIPMENT
TO
UL 60950-1, FIRST EDITION,
CAN/CSA C22.2 NO. 60950-1-03
Multiple Patents Pending
PAGE
1
Practice Section 1619
Issue 3, November 2008

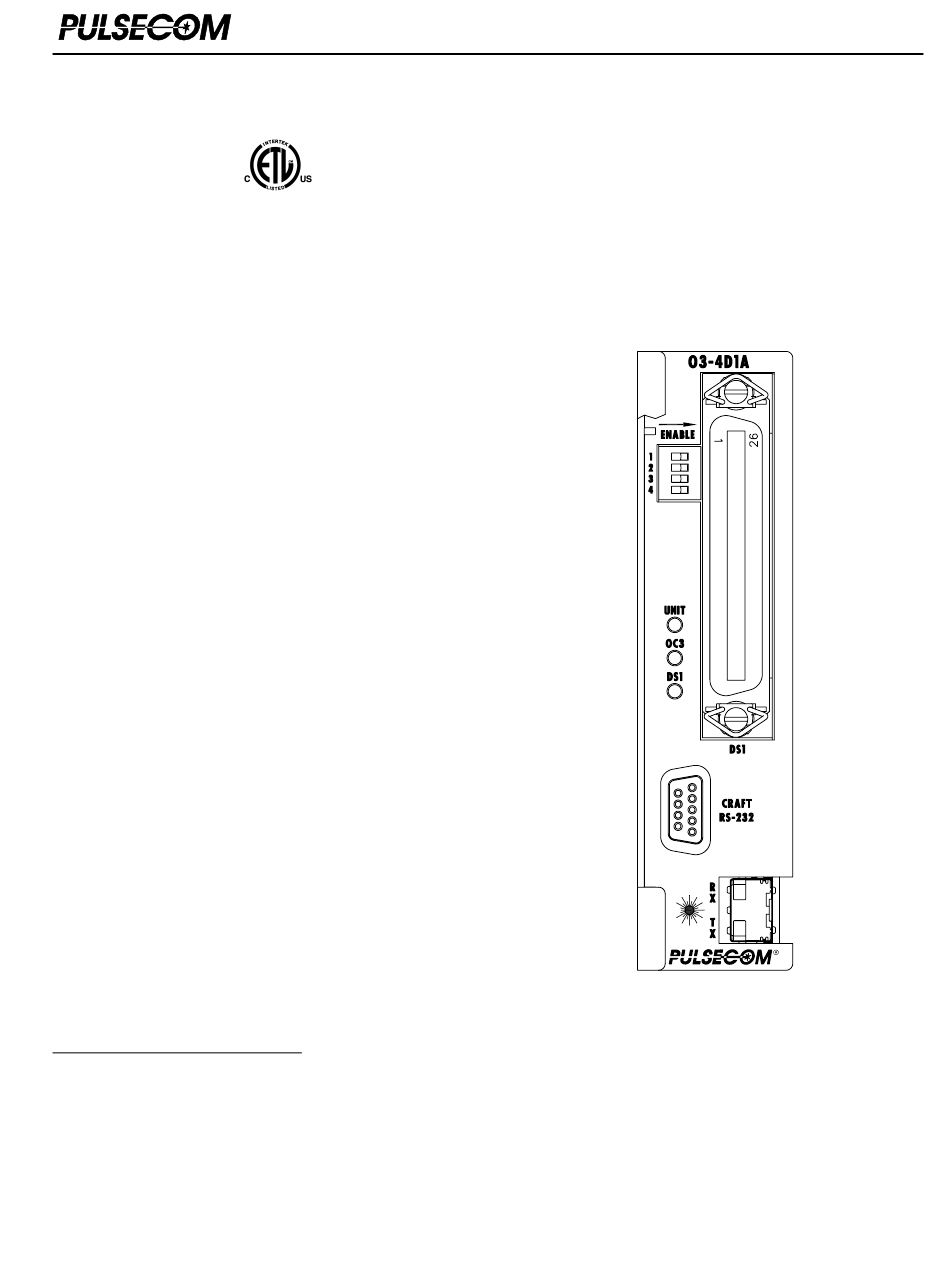

Figure 1. O3-4D1A Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O3-4D1A and is the answer not in the manual?

Questions and answers

Summary of Contents for PULSECOM O3-4D1A

  • Page 1: Table Of Contents

    CLEI is a trademark of Telcordia Technologies, Inc. ETL Listed is a registered certification mark of Intertek Testing Services NA, Inc. Microsoft and Windows are registered trademarks of Microsoft, Inc. Pulsecom is a registered trademark of Hubbell Inc. ©2008 Pulse Communications Inc. All rights reserved.
  • Page 2: Introduction

    (SONET) multiplexers as well as far-end O3-4D1 Series units. Compared to the O3-4D1, the O3-4D1A operates from +24 VDC or –24 VDC as well as from –48 VDC and will enter loopback after an enable signal has been present for 5 seconds.
  • Page 3 O3-4D1A 1619, Issue 3, November 2008 Table 1. O3-4D1A Board and OC3 Transceiver Ordering Codes Link Maximum Maximum CLEI Wave- Loss Output Input Number Type Ordering Code Code length Budget Level Level of Fibers of Fiber A. Board (Without Transceiver)
  • Page 4: Applications

    Fiber attenuators not required to perform an optical loopback with a fiber jumper when using the SFP-OC3-1310-19 transceiver • Side-by-side mounting compatible with Pulsecom O3D3 and G2 units to support DS1, DS3, and GigE services • Craft port display of optical transceiver wavelength, receive power level, and link loss budget 2.
  • Page 5: Functional Description

    The optical interface for the 155 Mbps data stream conforms to the basic SONET structure defined in GR-253-CORE. Transformers 50-Pin Surge RJ48H Protection OC3 Framer Surge Power Voltage VT1.5 Mapper Protection Converter Input T1 Framer RS-232 Alarm Driver Relays LEDs Instant DIP Switch Default Switch EEPROM Frame Ground Figure 3. O3-4D1A Functional Block Diagram...
  • Page 6: Ds1 Circuitry

    (short haul), with line build-outs (LBOs) appropriate to service line lengths from 0 to 655 feet as well as 0, 7.5, or 15 dB. The O3-4D1A detects loss of signal, all ones (alarm indication signal), and line code violations for each DS1 on the drop side.
  • Page 7 RDI = Remote Defect Indication. RX = Receive. TX = Transmit. DS1 #1 DS1 #1 DS1 #2 DS1 #2 O3-4D1L3 O3-4D1A DS1 #3 DS1 #3 DS1 #4 DS1 #4 SYSTEM A SYSTEM B Figure 4. O3-4D1L3 to O3-4D1A Reference Circuit Configuration...
  • Page 8 / VT AIS alarm on all VTs / drop AIS alarm on all DS1s DS1 #1 DS1 #1 DS1 #2 DS1 #2 O3-4D1A DMXtend DS1 #3 DS1 #3 DS1 #4 DS1 #4 SYSTEM A SYSTEM B Figure 5. O3-4D1A to DMXtend Reference Circuit Configuration...
  • Page 9: Installation

    4. INSTALLATION DANGER The O3-4D1A employs Class 1 optical signals. To avoid injury, do not look directly into the optical transceiver or into the fiber cable. Note that the light is invisible; the optical signal cannot be detected by the eye.
  • Page 10: Controls And Indicators

    A. Controls and Indicators Front Panel The front panel of the O3-4D1A provides connection to the OC3 and DS1 signals as well as the craft port. LEDs show OC3, DS1, and UNIT status. A 4-position DIP switch enables or disables each DS1. Front-panel controls and indicators are shown in Figure 1 and described in Table 5.
  • Page 11 Bulkhead Cable Kit— If desired, order CPM-4DS1 or CPM-4DS1X for use in the 3O3D3-CPL2C locking wall-mounted enclosure. Each kit provides four bulkhead- mounted RJ48C DS1 jacks and a cable that connects these jacks to the O3-4D1A front-panel connector. See Practice Section 1633 for wiring information.
  • Page 12 O3-4D1A 1619, Issue 3, November 2008 Backplane Backplane pinouts for alarm contacts, power, and ground (GND) are listed in Table 7. Table 7. Backplane Pin Assignments Function Description CARD-EDGE — — CONNECTOR — — — — — — DS1 Alarm Contact Dry Contact —...
  • Page 13: Select And Install Mounting

    Note that the initial position of S2-1 is not important; the O3-4D1A detects a change in the position of S2-1 during power-up as an instruction to restore parameters to their default values.
  • Page 14: Make Power And Alarm Connections

    +24V supply). C. Make Power and Alarm Connections Each O3-4D1A module uses two DC contact closures to identify failures. Follow the steps in Procedure 1 to make power and alarm connections. Procedure 1. Making Power and Alarm Connections...
  • Page 15: Install Transceiver And Module

    O3-4D1A 1619, Issue 3, November 2008 D. Install Transceiver and Module Follow the steps in Procedure 2 to install the O3-4D1A transceiver and module. Procedure 2. Installing the O3-4D1A Transceiver and Module STEP ACTION Carefully plug the desired SFP transceiver (see Table 1) into its front-panel socket.
  • Page 16: Make Oc3 Connections

    O3-4D1A 1619, Issue 3, November 2008 E. Make OC3 Connections O3-4D1A modules have LC optical connectors. Follow the steps in Procedure 3 to make OC3 connections. DANGER Units employ Class 1 optical signals. To avoid injury, do not look directly into the optical transceiver or into the fiber cable.
  • Page 17: Make Ds1 Connections

    1619, Issue 3, November 2008 F. Make DS1 Connections The O3-4D1A module has a female AMP CHAMP front-panel connector (designed to be used with a bail-lock connector hood) that follows ANSI T1.403 RJ48H wiring standards. Pulsecom recommends using one of the following items (ordered separately): •...
  • Page 18: Craft Port

    O3-4D1A 1619, Issue 3, November 2008 5. CRAFT PORT A. Access The O3-4D1A is equipped with a CRAFT RS-232 port with VT-100 emulation. See Figure 7 for port pin assignments. Figure 7. CRAFT RS-232 Port Pin Assignments System Requirements The following items are required for performance monitoring (PM): •...
  • Page 19 HyperTerminal as your default telnet program. At the ‘Name:’ prompt in the Connection Description dialog box, type O3-4D1A. Then select an icon that you wish to represent the O3-4D1A to simplify future access. Next click the OK button to display the Connect To dialog box.
  • Page 20: Provisioning

    Root (admin access) can view and modify all values. After passing authentication, users login to the Main Menu. B. Provisioning Provisioning is performed via the Configuration Manager sub-menu. Table 9 shows provisionable features and factory-set default settings. Table 9. O3-4D1A Provisioning Feature Option Default A. DS1 Provisioning...
  • Page 21 DS1 Loopback Figure 8. DS1 Remote Loopbacks The O3-4D1A can recognize in-band and ESF data link loopback codes as shown in Figure 8. Units enter loopback after the enable code has been present for 5 seconds. To respond to DS1 loopbacks, the O3-4D1A must be provisioned as an NT (CPE-side) unit (default), have its loopbacks enabled (also default), and be provisioned for either ESF (default) or SF operation.
  • Page 22: Performance Monitoring

    (from the OC3 fiber link) an AIS signal in the DS1 circuit being looped back, the O3-4D1A loopback will be deactivated to prevent the AIS from being transmitted back into the OC3 fiber link. The deactivation helps isolate the fault that caused the AIS.
  • Page 23 O3-4D1A 1619, Issue 3, November 2008 Table 12. DS1 Performance Monitoring Potential Severity Parameter Description Corrective Action CV-L Coding Violation–Line CV-P Coding Violation–Path SES-L Severely Errored Seconds–Line SES-P Severely Errored Seconds–Path Verify LBO settings. Verify proper and consistent ES-L Errored Seconds–Line ESF/SF/Unframed provisioning.
  • Page 24: Alarms

    O3-4D1A 1619, Issue 3, November 2008 D. Alarms Tables 13 through 15 list OC3, DS1, and unit alarm messages that can be generated by the O3-4D1A and accessed via the Fault Manager sub-menu. Table 13. OC3 Alarm Messages Potential Severity...
  • Page 25 LIU chip that services the four DS1 lines has failed. FPGA FAILURE CPU is unable to communicate with the custom FPGA, which coordinates com- munications to other devices on the unit. Replace O3-4D1A. EEPROM Non-volatile storage device for perform- FAILURE ance monitoring data has failed. Major...
  • Page 26: Manual Loopbacks

    • Customer (toward DS1 interface) • Bilateral (toward optical and DS1 interfaces) 6. SPECIFICATIONS Table 16 lists the electrical and physical characteristics of the unit. Table 16. O3-4D1A Specifications Description Specification A. System Characteristics Loopback Remote in-band/out-of-band DS1 loopbacks; Local (manual) loopbacks B.
  • Page 27: Maintenance

    In case of equipment malfunction, check the front-panel indicators. Reference Table 5. Since O3-4D1A and O3-4D1L3 units are used to extend DS1 circuits, they pass on network timing. As a result, standard T1 test sets might need to be provisioned for INTERNAL timing rather than Loop timing, as shown in Figure 9.
  • Page 28: Customer Service

    Figure 9. Test Set Timing Examples 8. CUSTOMER SERVICE Direct questions concerning the operation of the unit to Pulsecom Technical Support. If the unit is defective, limit field repair to replacement of the plug-in module or SFP transceiver. Obtain repair services by returning the defective unit to the Pulsecom Repair Department.
