1. INTRODUCTION ................................................ 1
A. Reason for Reissue ......................................... 2
B. Description ...................................................... 2
C. Features .......................................................... 2
2. APPLICATIONS ................................................. 4
3. FUNCTIONAL DESCRIPTION ........................... 6
A. OC3 Circuitry ................................................... 6
B. DS1 Circuitry ................................................... 7
C. Local Alarms.................................................... 7
4. INSTALLATION .................................................. 9
A. Tower Recommendations ............................. 10
B. Controls and Indicators ................................. 11
C. Select and Install Mounting ........................... 14
D. Make Power and Alarm Connections ............ 16
E. Install Transceiver and Module ..................... 16
F. Make OC3 Connections ................................ 17
G. Make DS1 Connections................................. 18
5. CRAFT PORT .................................................. 19
A. Access the Craft Port .................................... 19
B. Configure Operating Mode ............................ 21
C. Provisioning ................................................... 22
D. Performance Monitoring ................................ 25
E. Alarm Messages............................................ 26
F. Manual Loopbacks ........................................ 27
6. DCC TL1 SUPPORT ........................................ 29
7. SPECIFICATIONS ........................................... 30
8. MAINTENANCE ............................................... 31
9. CUSTOMER SERVICE .................................... 32
1. INTRODUCTION
This practice describes the Pulsecom
instructions and engineering references are included.
Trademarks used in this manual:
AMP and CHAMP are trademarks of TE Connectivity.
CellPak is a trademark and Westell is a registered trademark of Westell, Incorporated.
CLEI is a trademark of Telcordia Technologies, Incorporated.
Microsoft and Windows are registered trademarks of Microsoft, Incorporated.
Pulsecom is a registered trademark of Hubbell Incorporated.
The Pulsecom Fiber Backhaul logo is a trademark of Pulse Communications, Incorporated.
©2013 Pulse Communications Incorporated. All rights reserved.

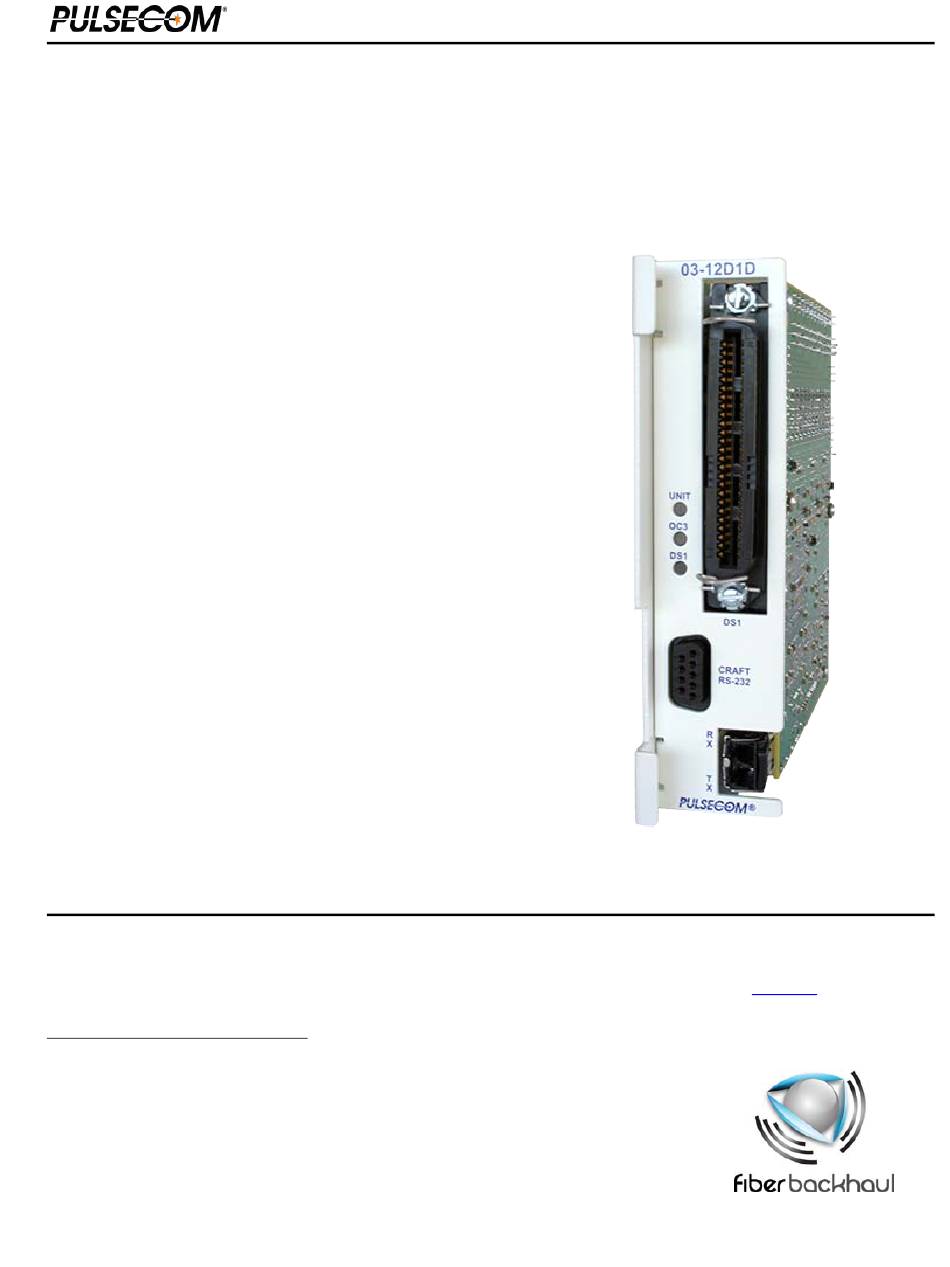

OC3 TO DS1 MULTIPLEXER
O3-12D1D
Multiple Patents Pending
PAGE
®
O3-12D1D OC3 to DS1 Multiplexer, shown in
1
Practice Section 1665
Issue 6, April 2013
Figure 1: O3-12D1D Unit
Figure
1. Installation
Advertisement
Table of Contents
Related Manuals for PULSECOM O3-12D1D
Summary of Contents for PULSECOM O3-12D1D
-
Page 1: Table Of Contents
CLEI is a trademark of Telcordia Technologies, Incorporated. Microsoft and Windows are registered trademarks of Microsoft, Incorporated. Pulsecom is a registered trademark of Hubbell Incorporated. The Pulsecom Fiber Backhaul logo is a trademark of Pulse Communications, Incorporated. ©2013 Pulse Communications Incorporated. All rights reserved. -
Page 2: Reason For Reissue
This practice has been reissued to revise Section 1C, Features. B. Description The O3-12D1D converts 12 DS1 signals into an OC3 optical signal. By using standard, non-proprietary, virtual tributary (VT1.5) and synchronous transport signal (STS-1) mapping, the O3-12D1D provides fiber- to-fiber compatibility with synchronous optical network (SONET) multiplexers as well as far-end O3-12D1D units. - Page 3 O3-12D1D 1665, Issue 6, April 2013 Table 1 — O3-12D1D Board and OC3 Transceiver Ordering Codes Link Maximum Maximum CLEI™ Wave- Loss Output Input Number Type Ordering Code Code length Budget Level Level of Fibers of Fiber A. Board (Without Transceiver)
-
Page 4: Applications
Fiber attenuators not required to perform an optical loopback with a fiber jumper when using the SFP-OC3-1310-19 transceiver • Side-by-side mounting compatible with Pulsecom O3D3-MO, O3-3D3D, O3-12D1G, and other similar units to support DS1, DS3, and 10/100/1000 Mb Ethernet services 2. APPLICATIONS Figure 2 shows typical O3-12D1D multiplexer (mux) universal and integrated applications. - Page 5 O3-12D1D 1665, Issue 6, April 2013 B. Integrated Example C. Migrating from Copper to Fiber-Fed DS1s Example Figure 2: O3-12D1D Typical Applications (Continued)
-
Page 6: Functional Description
#8, in that order; and VT Group #3 carries DS1 #9, #10, #11, and #12, in that order. The DS1 payload is not modified. Figure 3 shows a functional block diagram. A. OC3 Circuitry The optical interface for the 155 Mbps data stream conforms to the SONET structure defined in GR-253- CORE. Figure 3: O3-12D1D Functional Block Diagram... -
Page 7: Ds1 Circuitry
0 to 655 feet as well as 0, 7.5, or 15 dB. The O3-12D1D detects loss of signal, AIS, RAI, and line code violations for each DS1 on the drop side. High levels of bipolar violations (BPVs) are tracked in the craft port as code violations – line level (CV-L). - Page 8 O3-12D1D 1665, Issue 6, April 2013 Table 3 — O3-12D1D Alarm Behavior Alarm Messages Alarm Unit Craft Sent Dropped Stimulus Port Alarm Alarm Toward Applied State Message State Contacts State Contacts OC3 (FE) DS1 (NE) Loss of Power CLOSED CLOSED –...
-
Page 9: Installation
AIS toward the OC3 or to implement a terminal loopback in which the received DS1 data is looped back toward the OC3. If the AIS option is selected, AIS-CI will be sent only when the O3-12D1D is provisioned as a Remote unit and the AIS-CI option is enabled from the DS1 configuration menu. -
Page 10: Tower Recommendations
1665, Issue 6, April 2013 For Type 5 (EIPP) applications, the O3-12D1D is to be installed in an electronic equipment cabinet (EEC) and have its DS1 ports connected with cabling that does not exceed 1 meter (3.3 feet) in length to Bourns 303M-09H3GH 5-pin or equivalent protectors inserted in an approved 5-pin protector block. -
Page 11: Controls And Indicators
B. Controls and Indicators Front Panel The front panel of the O3-12D1D provides connection to the OC3 and DS1 signals as well as the craft port. LEDs show OC3, DS1, and UNIT status. Front-panel connectors and indicators are shown in... - Page 12 DS1s. Turns OFF to show all DS1 ports are set to disabled. NOTE 1: Use Pulsecom bail-lock to unterminated cable (AMP-MBL/U50Sxxx, where xxx = cable length in feet) OR use Pulsecom bulkhead cable kit (CPM-12DS1X) in 3O3D3-CPL2C installations, or in 2O3D3-19A installations with BP-19/BP-23 rack-mounted bulkhead plates.
- Page 13 Unplugging the card, changing the position of switch S2-1, and plugging the card back in return all parameters to their default values. Note that the initial position of S2-1 is not important; the O3-12D1D detects a change in the position of S2-1 during power-up as an instruction to restore parameters to their default values.
-
Page 14: Select And Install Mounting
C. Select and Install Mounting Table 7 provides a list of the mountings that should be used with the O3-12D1D. For applications requiring loss-of-power immunity, use redundant power such as that available with the 2O3D3-19A REVB. Use standard hardware to securely attach the mounting to the rack, door, wall, or backboard. See the... - Page 15 NCM1FEEC – Provision for one O3-12D1D; subscriber 24 VDC, local 1649, −48 VDC, Pulsecom 120 VAC to −48 VDC Power Node with Enclosure 1680 battery backup, or Pulsecom Span Power units. A Pulsecom CSSI broadband upgrade kit must be installed in the CP528.
-
Page 16: Make Power And Alarm Connections
0.75A fuse is properly installed for the mounting slot in use. • If the UNIT indicator is red, verify that the laser transceiver is properly latched into its socket. If the LED remains red, the O3-12D1D module is defective and should be replaced. -
Page 17: Make Oc3 Connections
Procedure 3. Making OC3 Connections STEP ACTION Before plugging in the OC3 fiber, verify that the O3-12D1D front-panel OC3 indicator is red. If the OC3 indicator is off or green, the unit is defective and should be replaced. Remove the protective dust cover from the front-panel OC3 LC jack. -
Page 18: Make Ds1 Connections
1665, Issue 6, April 2013 G. Make DS1 Connections The O3-12D1D module has a female AMP CHAMP front-panel connector (designed to be used with a bail- lock connector hood) that follows ANSI T1.403 RJ48H wiring standards. Pulsecom recommends using one of the following items (ordered separately): •... -
Page 19: Craft Port
1665, Issue 6, April 2013 5. CRAFT PORT The unit’s craft port provides local and remote access to O3-12D1D operation and provisioning. The craft port can be connected to a terminal emulator to permit network operations center (NOC) access to O3-12D1D provisioning and performance data via TL1 commands (see Pulsecom Practice Section 1639). - Page 20 HyperTerminal as your default telnet program. At the ‘Name:’ prompt in the Connection Description dialog box, type O3-12D1D. Then select an icon that you wish to represent the O3-12D1D to simplify future access. Next click the OK button to display the Connect To dialog box.
-
Page 21: Configure Operating Mode
O3-12D1D 1665, Issue 6, April 2013 Login If necessary, press the ENTER key to view the Login screen. The system asks for a user name and password for authentication. Follow the steps in Procedure Procedure 6. Logging In STEP ACTION At the ‘User Name:’... -
Page 22: Provisioning
O3-12D1D to communicate with a NOC over a TL1 DCC link with a higher-order SONET multiplexer. Although the O3-12D1D (when provisioned for Remote operation) has a default TID of PULSECOM2, a unique TID should be assigned to each O3-12D1D when these units are used in the integrated mode as part of a larger network. - Page 23 DS1 Loopback Timeout 1, 2, 4, 8, 60 minutes, or No TimeOut 60 minutes* Response to DS1 Loss of Send AIS to OC3 (i.e., toward the CO when the O3-12D1D is at the subscriber Send AIS (or Signal site) or initiate loopback...
- Page 24 DCC TL1 commands.) To respond to DS1 loopbacks, the O3-12D1D must be provisioned as a Remote (CPE-side) unit (default), have its loopbacks enabled (also default), and be provisioned for either ESF (default) or SF operation. When provisioned for ESF operation, the O3-12D1D will respond to either in-band or ESF data link (out-of-band) loopback codes;...
-
Page 25: Performance Monitoring
DS1 circuit being looped back, the O3-12D1D loopback will be deactivated. If provisioned as a CO-side unit, the O3-12D1D automatically disables all remote loopback detection. Loopbacks can be enabled on any or all DS1s in a unit provisioned as Remote via the craft port loopback enable screen. -
Page 26: Alarm Messages
E. Alarm Messages Table Table 13, and Table 14 list OC3, DS1, and unit alarm messages that can be generated by the O3-12D1D and accessed via the Fault Manager Menu. Table 12 — OC3 Alarm Messages Potential Severity Alarm Message Description... -
Page 27: Manual Loopbacks
O3-12D1D 1665, Issue 6, April 2013 Table 13 — DS1 Alarm Messages Potential Severity Alarm Message Description Corrective Action DS1 loss of signal has been detected. Check for loose copper cable connections. LOF (NE) DS1 loss of frame has been detected Verify LBO settings. - Page 28 MISSING OC3 optics module is missing. Install an appropriate SFP transceiver OPTICS from Table NON- PULSECOM Replace the transceiver with an SFP module installed is not a Pulsecom- OPTICS appropriate SFP transceiver from approved device. Table Minor NON-CAPABLE OPTICS TEMPERATURE Unit temperature is above 95ºC.
-
Page 29: Dcc Tl1 Support
Remote provisioning of each DS1, including in-service or out-of-service so that more lines can be remotely added; AMI or B8ZS; and SF, ESF, or unframed framing. Refer to Practice Section 1639 for a complete description of the TL1 commands and responses supported by the O3-12D1D. -
Page 30: Specifications
O3-12D1D 1665, Issue 6, April 2013 7. SPECIFICATIONS Table 15 lists the electrical and physical characteristics of the unit. Table 15 — O3-12D1D Specifications Description Specification A. System Characteristics Loopback Remote in-band/out-of-band DS1 loopbacks; Local (manual) loopbacks B. OC3 Interface Optical Bit Rate 155.52 MHz, ±... -
Page 31: Maintenance
5.6 × 1.4 × 5.9 inches edge connector) Weight 17 ounces *When deployed in a 2O3D3-19A REVB chassis, the O3-12D1D has an operating temperature range of –40° to +75°C. 8. MAINTENANCE In case of equipment malfunction, check the front-panel indicators. Reference... -
Page 32: Customer Service
1665, Issue 6, April 2013 9. CUSTOMER SERVICE Direct questions concerning the operation of the unit to Pulsecom Technical Support. If the unit is defective, limit field repair to replacement of the plug-in module or SFP transceiver. Obtain repair services by returning the defective unit to the Pulsecom Repair Department, 400 E.
