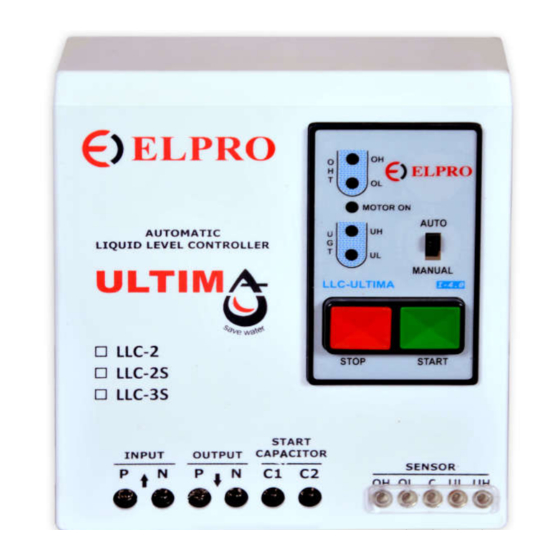

- Page 1 OPERATING MANUAL ULTIMA – AUTOMATIC LIQUID LEVEL CONTOLLER 230V AC INPUT SUPPLY SHORT P1 & P2 FOR AUTO MODE SHORT P1&P2 OF START BUTTON FOR AUTO MODE ELPRO CONTROLS, Ahmedabad, Gujarat, INDIA www.elprocontrols.com Email: elprocontrols@gmail.com / hello@elprocontrols.com...

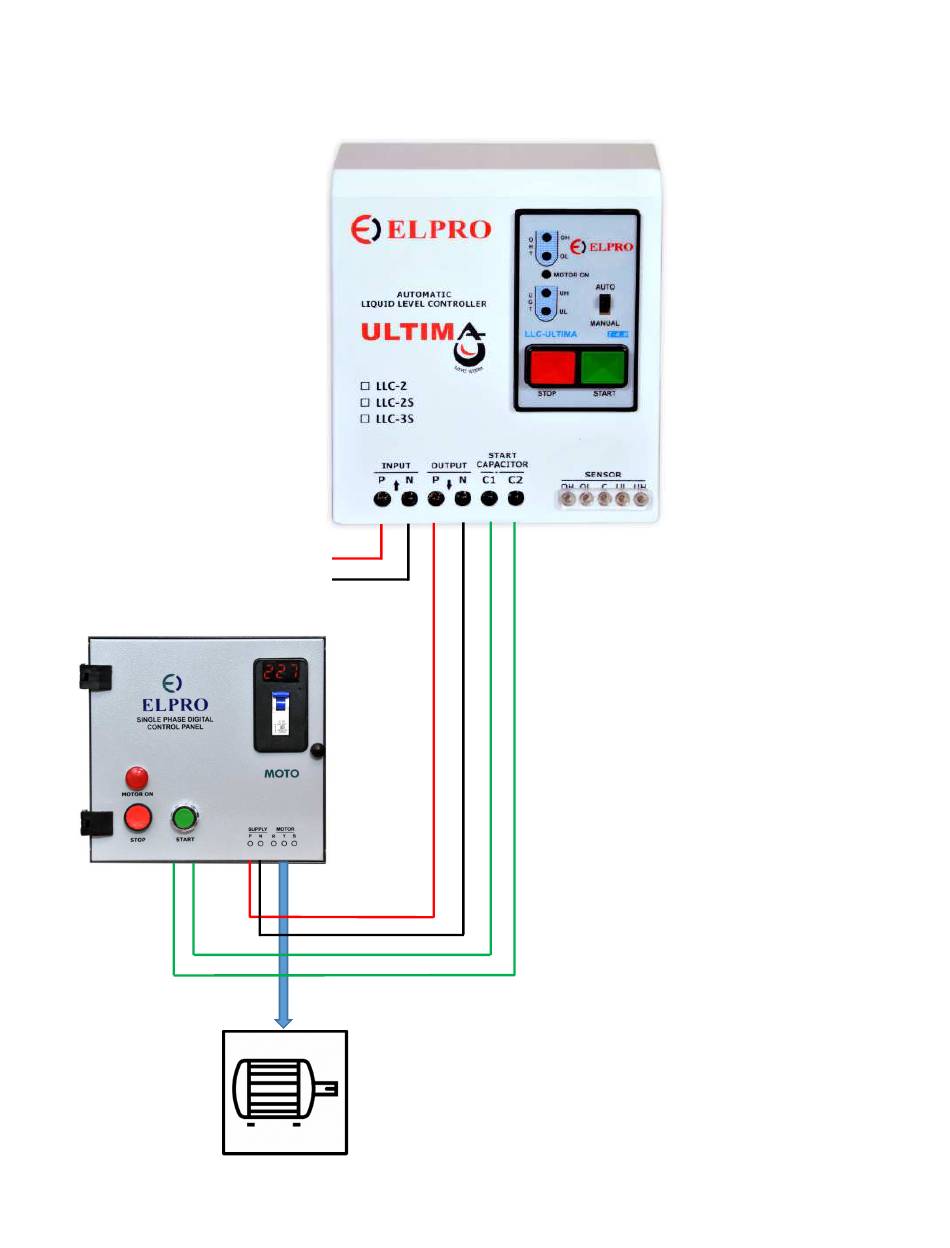

- Page 2 Connect 230V AC supply to input terminal (P & N). Connect output (P & N) to control panel ELPRO make / Other make. Connect C1 & C2 to START button of control panel (for LLC-2S & LLC-3S model).
