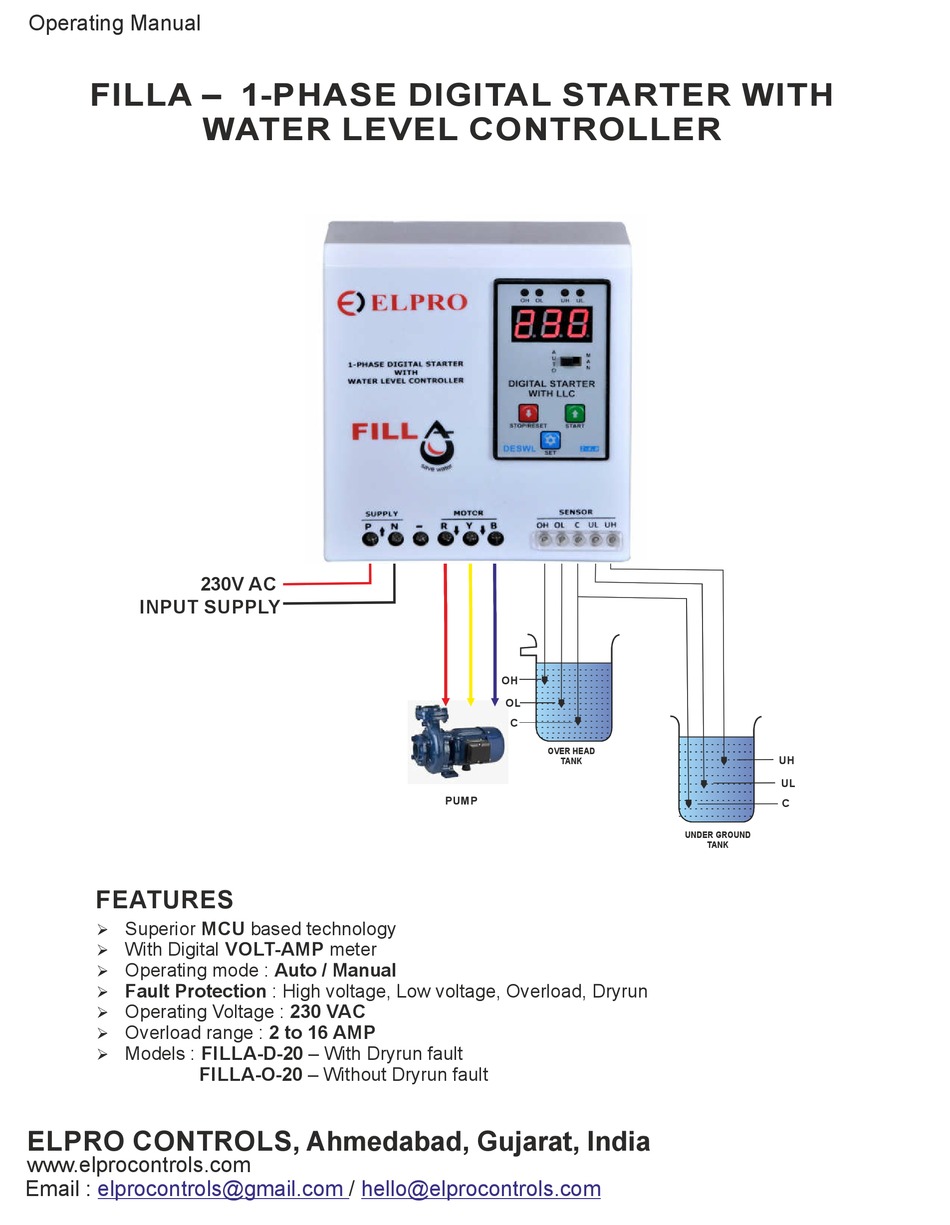

Operating Manual

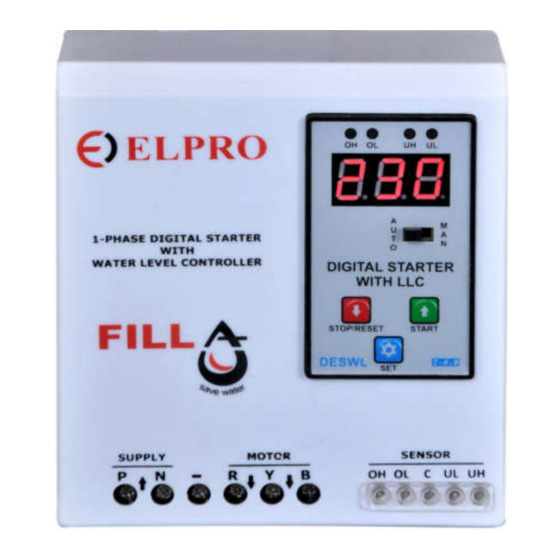

FILLA – 1-PHASE DIGITAL STARTER WITH
230V AC
INPUT SUPPLY
FEATURES
Superior
Ø
With Digital
Ø
Operating Mode : Auto / Manual
Ø
Fault Protection : High voltage, Low voltage, Overload, Dryrun
Ø
Operating Voltage : 230 VAC
Ø
Overload range : 2 to 16 AMP
Ø
Models :
Ø
FILLA-O-20
ELPRO CONTROLS, Ahmedabad, Gujarat, India
www.elprocontrols.com
Email :
elprocontrols@gmail.com hello@elprocontrols.com
WATER LEVEL CONTROLLER
MCU
based technology
VOLT-AMP
meter
FILLA-D-20
– With Dryrun fault
– Without Dryrun fault
/
OH
OL
C
OVER HEAD
TANK
PUMP
UH
UL
C
UNDER GROUND
TANK
Advertisement
Table of Contents
Related Manuals for ELPRO FILLA
Summary of Contents for ELPRO FILLA
- Page 1 Operating Manual FILLA – 1-PHASE DIGITAL STARTER WITH WATER LEVEL CONTROLLER 230V AC INPUT SUPPLY OVER HEAD TANK PUMP UNDER GROUND TANK FEATURES Superior based technology Ø With Digital VOLT-AMP meter Ø Operating mode : Auto / Manual Ø Fault Protection : High voltage, Low voltage, Overload, Dryrun Ø...
- Page 2 OH – Overhead Tank High Level Ø OL – Overhead Tank Low Level Ø UH – Underground Tank High Level Ø UL – Underground Tank Low Level Ø – Common Ø ELPRO CONTROLS, Ahmedabad, Gujarat, India www.elprocontrols.com Email : elprocontrols@gmail.com hello@elprocontrols.com...
