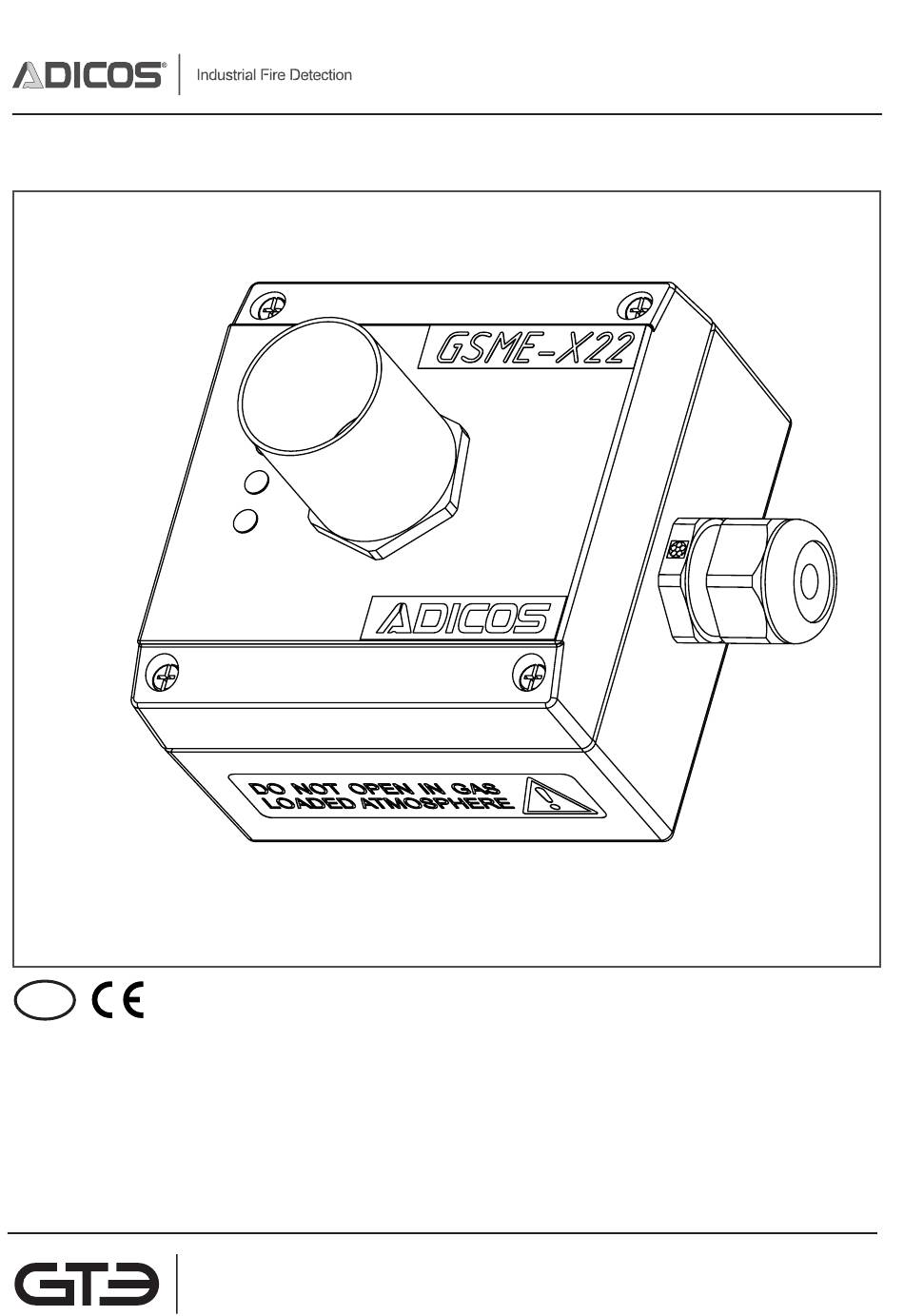

- Page 1 GSME-X22 IP64 Supplementary Instruction Manual for GSME-X22 Fire Gas Detector GTE Industrieelektronik GmbH | Helmholtzstr. 21, 38 – 40 41747 Viersen | Germany | +49 2162 3703-0 | info@gte.de...
- Page 2 Supplementary Instructions for GSME-X22 Article number: 400-2410-002 Index: EN22 Release date: 10.01.2023 – Translation – Manufacturer: GTE Industrieelektronik GmbH Helmholtzstr. 21, 38-40 41747 Viersen GERMANY Support hotline: +49 2162 3703-0 E-Mail: support.adicos@gte.de © 2023 GTE Industrieelektronik GmbH – This document and all figures contained may not be...
- Page 3 COS system ensures reliable early detection of embers and smoldering fires even in adverse environments. ADICOS GSME fire gas detectors detect at an early stage gases that are characteristic for developing fires. They detect both open and concealed smoldering fires. Highly sensitive and at the same time robust, they are ideal for fire gas detection in industrial environments –...
-
Page 4: Table Of Contents
10.1 ADICOS mounting plate........15 400-2410-002 EN22... -
Page 5: About This Manual
About this manual Objective This manual describes the special requirements on installation, wiring, commissioning, and operation of ADICOS detectors for explosive atmospheres of ATEX zone 22. They are exclusively addressed to knowledgeable specialist personnel (–› Chap. 2, Safety instructions). Explanation of Symbols This manual features a continuous structure for best possible comprehension. -
Page 6: Safety Instructions
ATEX operating directive. Intended use ADICOS GSME-X22 are designated for the detection of fire scenarios in explosive atmospheres of ATEX zone 22. In this context, the operating parameters described in Chap. 9, »Technical Data« must be met. Any deviating use requires prior consultation with the manufacturer. -
Page 7: Personnel Qualification
Personnel Qualification Any work on ADICOS systems may only be performed by qualified personnel. Persons, who can perform work on electrical systems and recognize possible dangers based on their pro- fessional education, knowledge, and experience as well as knowledge of the applicable provi- sions, are considered qualified personnel. -
Page 8: Structure
Structure Overview Description ① Enclosure ② Display elements ③ Spray protection ④ Sinter metal filter ⑤ Cable gland 400-2410-002 EN22 ADICOS GSME-X22... -
Page 9: Cable Assignment
Interface module A - out FDnet (+) LSN a out white Interface module B - out FDnet-B (-) LSN b2 out Option auxiliary relay Wire Color Auxiliary relay black white Normally closed black Normally open white Common ADICOS GSME-X22 400-2410-002 EN22... -
Page 10: Installation
DANGER! Risk of explosion due to electrical voltage in hazardous areas. The electronics of ADICOS GSME-X22 works with an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! Mount the device with closed housing! •... -
Page 11: Wiring
DANGER! Risk of explosion due to electrical voltage in hazardous areas. The electronics of ADICOS GSME-X22 works with an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! Mount the device with closed enclosure. -
Page 12: Maintenance
Detector replacement DANGER! Risk of explosion due to electrical voltage in hazardous areas. The electronics of ADICOS GSME-X22 works with an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! • De-energize the entire detector system and secure against unintentionally reactivation for all wiring work! •... -
Page 13: Technical Data
DC 40 V; max. 10 mA DC 24 V; max. 20 mA Sensor Data Sensor combination: CO – H – HC – NO Reaction time: > 30 Detection szenarios: Smoldering fires according to EN 54-7 Fires emerging from smoldering coals ADICOS GSME-X22 400-2410-002 EN22... -
Page 14: Id Plate
(variable) (variable) ART-Nr: Article number TEMP: Ambient Degree of (variable) temperature protection COM-Nr: Communication /VA: Voltage range / Internal fusing number (variabel) maximum pow- (Short-circuit er consumption current) (heating incl.) CE marking Information on explosion protection 400-2410-002 EN22 ADICOS GSME-X22... -
Page 15: 10 Appendix
AppenDix 10 Appendix 10.1 ADICOS mounting plate 1 5 0 1 3 0 6 , 4 A - A ADICOS GSME-X22 400-2410-002 EN22...
